Installation
The Spacer for Keyhole Protection Kit SC118
The Spacer SC118 is used for Keyhole Protection Kit SC112 only if the steel slide on SC112
touches the keyhole collar on the protected surface. For more information, please refer to
“Keyhole Protection Kit SC112 User Guide”.

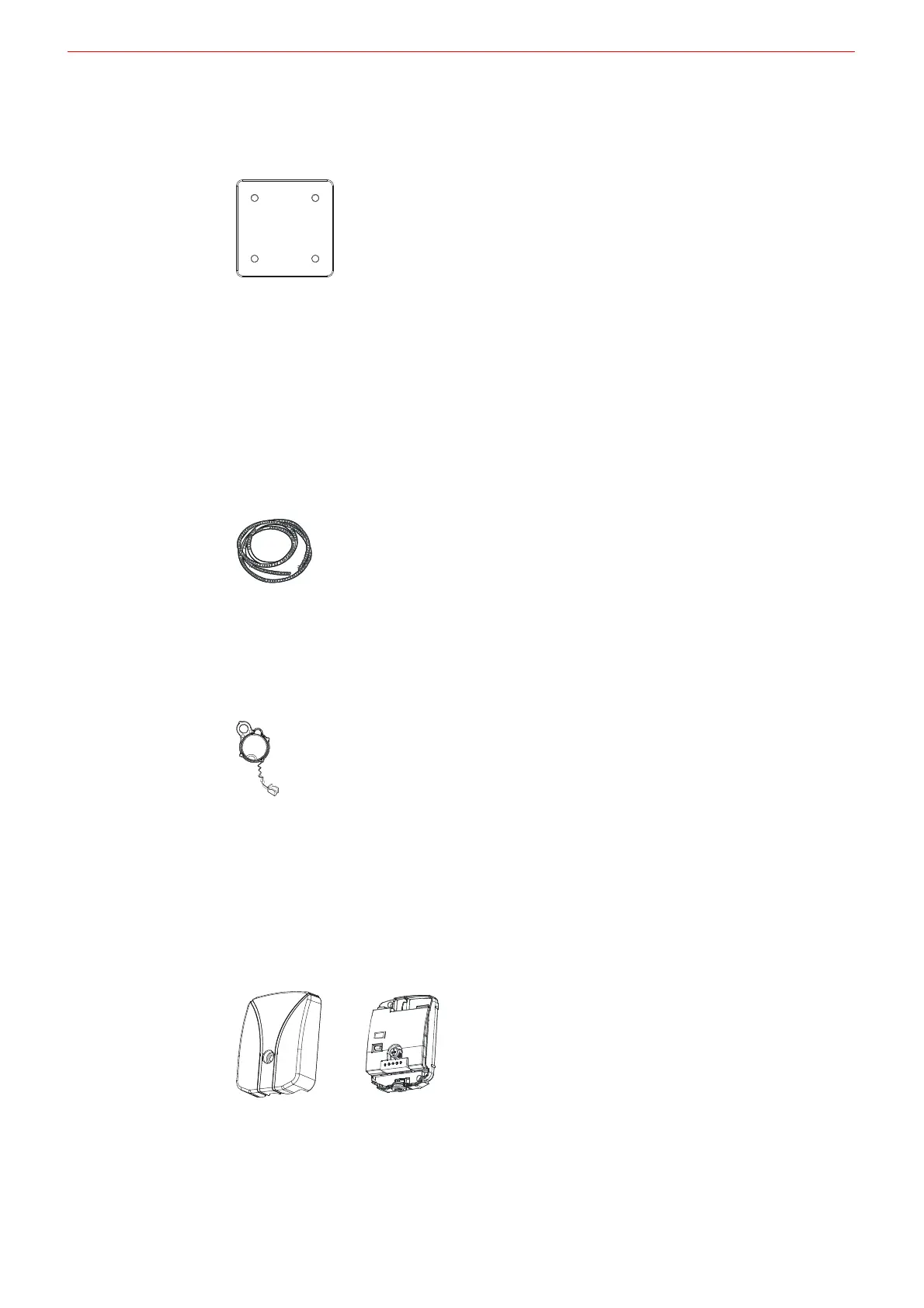

Figure 6-6 Spacer for Keyhole Protection Kit SC118 Components
The Armored Cable Kit SC114
The Armored Cable Kit SC114 is designed to be used as a protection of the detector cable from
the detector on the door of a safe or vault to the body or wall, see Figure 5-7 Detectors mounted
on the Outsid
e of the Safe on page 10 for reference.
T
he Armored Cable Kit SC114 includes the following items:
8 core cable, white
Flexible stainless steel conduit
Cable straps
Figure 6-7 Armored Cable Kit SC114 Components
The Test Transmitter SC113
The Test Transmitter SC113 is used for checking the proper mounting, wiring and function of the
detector, and it should be mounted inside of the detector, about how to mount the Test
Transmitter SC113, please refer to Mounting the Detector on page 12.
Figure 6-8 Test Transmitter SC113 Components
The External Test Transmitter SC115
The SC115 External Test Transmitter is a range test transmitter developed to generate a
simulated attack signal in protected object with multiple SC100 seismic detectors installed in
concrete vaults and all other solid structure value storage units, checking whether the mounting
and the function of the seismic detector is good.
The figure below shows the components of the External Test Transmitter SC115. For more
information, please refer to “External Test Transmitter SC115 Installation Guide”.
Figure 6-9 External Test Transmitter SC115 Components
Front Cover Transmitter Base
The Recess Mounting Box SC116
The Recess Mounting Box SC116 provides an easy way to mount the detector in the wall and
protecting the detector from external destruction.
- 16 -
