29
MAN0530 Issue 10 - 11/09 Searchline Excel
2104M0506
D 3 M6 tapped DVC100(M) junction box mounting.
D1 2 M6 tapped DVC100 (M) MK2 junction box (used in
conjunction with bottom two D holes)
E 4 M10 tapped DX100(M) junction box mounting.
F 2 M6 tapped Killark/Akron junction box mounting.
G 4 M6 tapped Sun/heat shade mounting.
H 3 M8 tapped Short range Transmitter and all Receiver
brackets.
J 3 M10 tapped Medium/Long range Transmitter mounting
bracket.

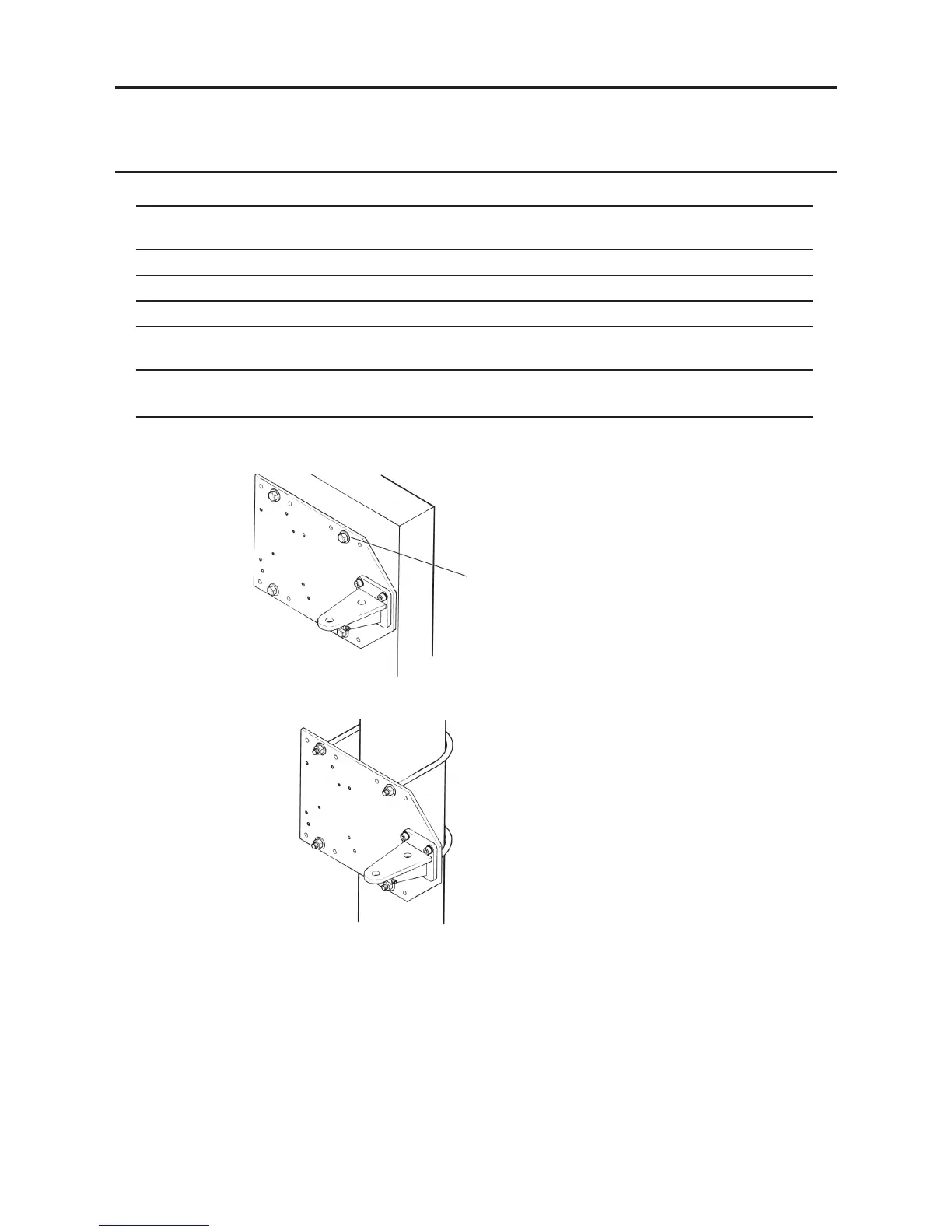

The following drawings show typical mountings:
Mounting Plate Fixed to Flat Surface
Mounting Plate Fixed to Single Pipe/Pole
3. INSTALLATION AND OPERATION
M8 mounting bolt - 4-off
(not supplied) using B holes
6in. U-bolt - 2-off
(not supplied) using
B holes
