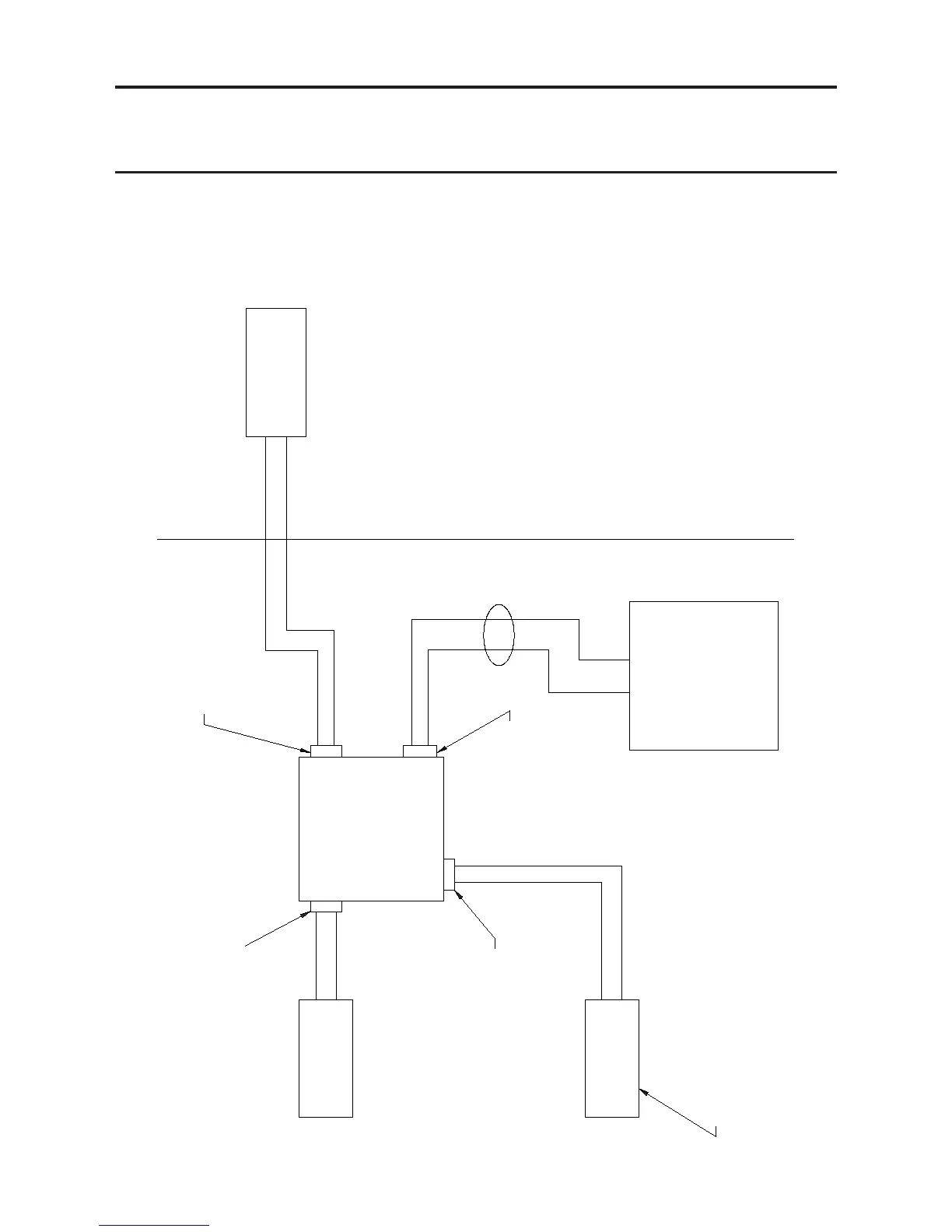

TERMINATION
UNIT DX100 (M)
UL FILE E136193
COMMUNICATIONS
FIXED SOCKET I.S.
OUTPUT TO CALIBRATOR.
(FACTORY FITTED)
NOTE 2
CONTROL
EQUIPMENT
NOTE 1
SENSOR
ANY SUITABLE UL LISTED
OR CLASSIFIED EXPLOSION
PROOF APPARATUS.
HANDHELD
CALIBRATOR
TYPE SHC 1
UL FILE E136193
NOTES:
1. APPARATUS WHICH IS UNSPECIFIED EXCEPT THATIT
MUST NOT BE SUPPLIED FROM,NOR CONTAIN IN NORMAL
OR ABNORMAL CONDITIONS A SOURCE OF POTENTIAL
WITH RESPECT TO EARTH IN EXCESS OF 250V rms
OR 250V d.c.
2. WIRING FROM THE HANDHELD CALIBRATOR (SHC1) TO
THE TERMINATION UNIT (DX100) IS NOTTO EXCEED
15 METRES MAX.
3. INSTALL EQUIPMENT INCLUDING FIELD WIRING IN
ACCORDANCE WITH ARTICLES OF THE NATIONAL
ELECTRICAL CODE FOR DIVISION 1HAZARDOUS
LOCATIONS.
SENSOR ENTRY
(CONDUIT CONNECTION
REQUIRED WITH SEAL)
NON HAZARDOUS AREA
SUPPLY ENTRY (CONDUIT
CONNECTION REQUIRED
WITH SEAL)
OPTIONAL TRANSMITTER
SEARCHLINE EXCEL FILE
No. E91044
TRANSMITTER ENTRYP(CONDUIT
CONNECTIONPREQUIRED WITH SEAL)
HAZARDOUS (CLASSIFIED) LOCATION
CLASS1DIV.1GROUPS B,C,D.
