System 57 Quick Start Guide 05701-M-5026 MAN0839 Issue 1
5 Cabinet and Rack Installation

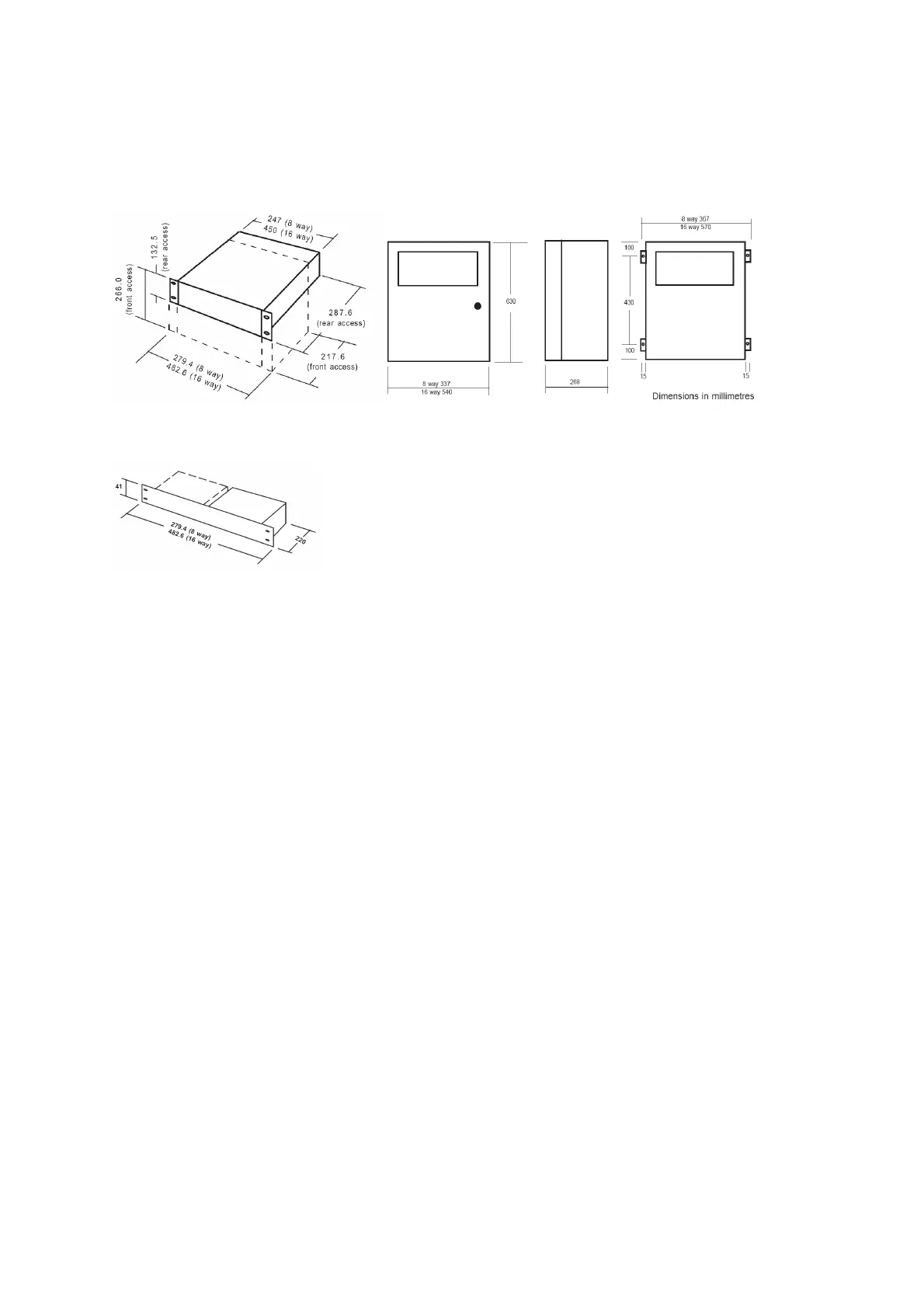

Cabinet outline dimensions
Rear and front access racks outline dimensions
Power supply outline dimensions
6 Detector Installation
Always install the detectors in accordance with the Detector Operating Instructions. In
general, detectors for lighter than air gasses should be located at a high level and detectors
for heavier than air gasses should be located at a low level.
Do not install the detectors:
a. Where the normal air flow may be impeded.
b. In corners of rooms where static air pockets may exist.
c. Near sources of heat such as convector heaters.
Do install the detectors:
a. As close as possible to the potential source of gas to be detected in order to give the
maximum possible warning.
b. So that they are accessible for maintenance work.
