Page 30 STT750 Temperature Transmitter User’s Manual Revision 4
4.5. Monitoring the Display
This section describes the information shown on the operator screens of the Display.
4.5.1. Display

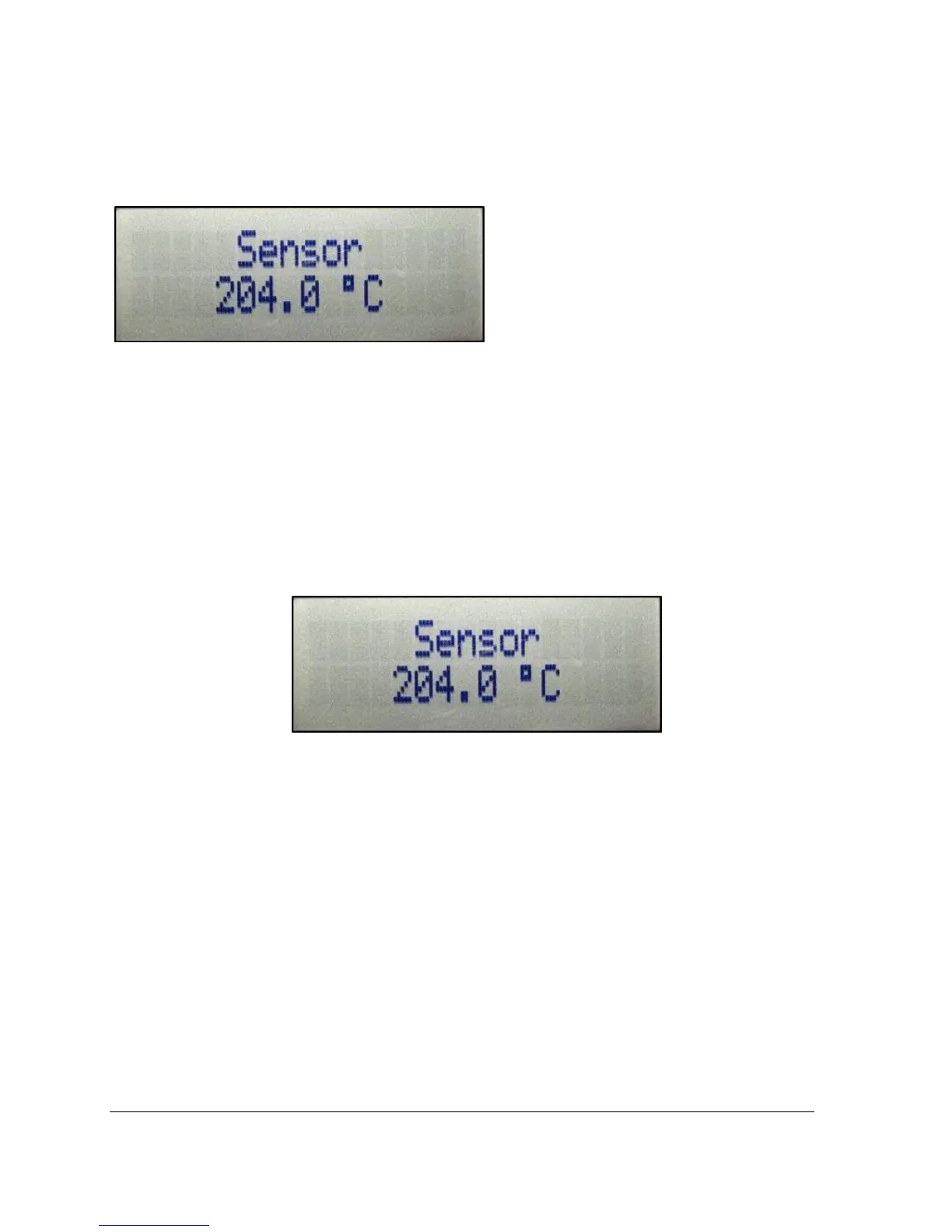

Figure 17
Figure 17 illustrates the Display format with Process Variable (PV).
The PV value is user-configurable. This field has 7 characters. The maximum allowable
numeric value is 9999999 or -999999. If fractional decimals are configured, the fractional
positions will be dropped, as required. If the PV value exceeds the above limits, it is divided
by 1000 and “K” is appended to the result, allowing a maximum value with multiplier of
999999K or -99999K.
Process Variable Tag is user-configurable from a HART Host. This field has 14 characters.
Engineering Units. This field is user-configurable when measuring temperature.
Figure 17 – Display with Process Variable Format
