69-1434–1
2
T8000C PROGRAMMABLE THERMOSTAT

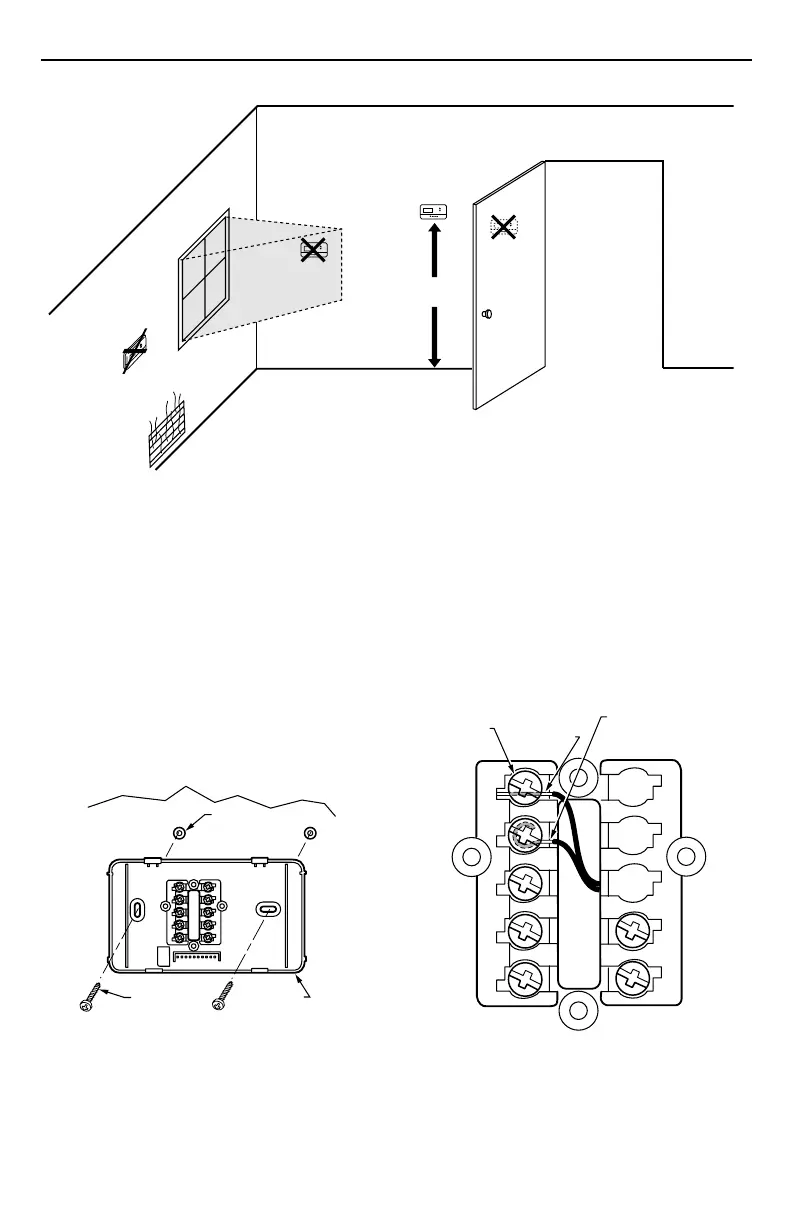

Fig. 1. Typical location of thermostat.
5 FEET
[1.5 METERS]
YES
NO
NO
NO
M11338
Mounting Wallplate to Wall
IMPORTANT
Level only for appearance. The thermostat
functions normally even when not level.
Mount wallplate and the T8000C with the screws provided
(see Fig. 2) as follows:
1. Place the wallplate at the desired location on the
wall.
2. Pull the thermostat wire through the wallplate
entrance hole.
3. Fasten the wallplate to the wall using the anchors
and screws provided.
4. After wiring the wallplate, plug the hole with non-
flammable insulation to prevent drafts from affecting
the thermostat; see Wiring section.
M12202
WALL
WALL
ANCHORS (2)
WALLPLATE
MOUNTING
SCREWS (2)
Fig. 2. Mounting wallplate to wall.
Wiring
IMPORTANT
Use an 18-gauge maximum wire for wiring the
T8000C Thermostat.
All wiring must comply with local electrical codes and
ordinances. Disconnect the power supply to prevent
electrical shock or equipment damage.
The shape of the terminals permits insertion of straight or
wraparound wiring connections; either method is accept-
able. A letter code is located near each terminal for
identification. See Fig. 3.
NOTE: To ensure proper mounting of thermostat, restrict
all wiring to the shaded area in the center of the
terminals. See Fig. 4.
TERMINAL
S
CREW
M12559
G
R
Rc
Y
W
B
O
FOR STRAIGHT
INSERTION STRIP
5/16 IN. (8 MM)
FOR WRAPAROUND
STRIP 7/16 IN. (11 MM
)
Fig. 3. Wiring connections.
