Honeywell TB7220U Installation Instructions

TB7220U ULTRASTAT PROGRAMMABLE THERMOSTAT
9 62-0223—1
SETTING CALENDAR AND TIME
This thermostat is designed to, under normal use,
automatically keep current time and day in memory for up
to ten years once the calendar is set. There are two ways
to set the calendar and time for this thermostat:
SETTING DATE/TIME WHEN THERMOSTAT IS FIRST POWERED
When the thermostat is first powered, the display is ready
to set the calendar and time. The thermostat proceeds
through a sequence of setup screens. See Fig. 24.
SETTING DATE/TIME AFTER THERMOSTAT IS ALREADY
FUNCTIONING
Use the installer setup to set year, month and day. See
Fig. 25.

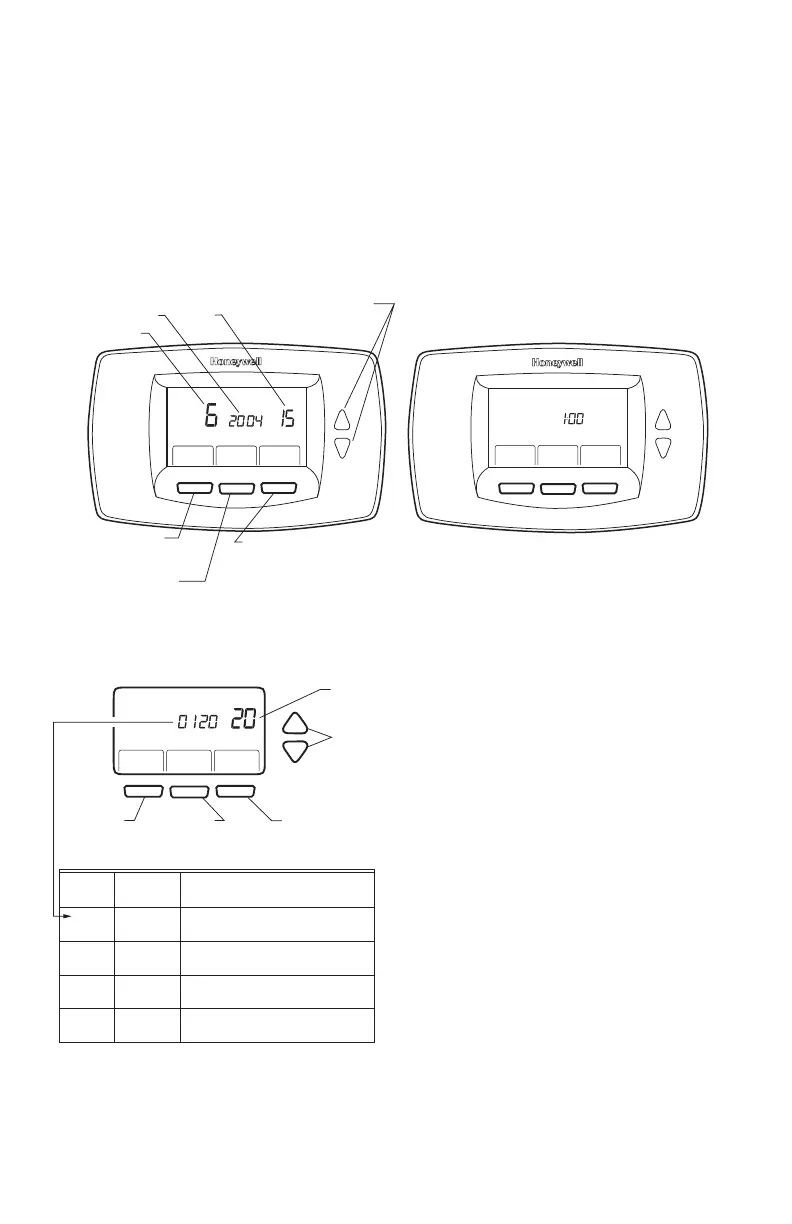

Fig. 24. Setting calendar and time when thermostat is first powered.
Fig. 25. Setting Date/Time after thermostat is already
functioning.
ADVANCED SETTINGS
The thermostat has advanced settings to match the HVAC
system. These settings can be adjusted to match specific
needs. See the following section (Installer Setup
Numbers, Settings, and Tests) for details.
M23023
MONTH
YEAR
DAY
GO BACK KEY
GOES BACK TO
LAST SETTING
NEXT KEY
ADVANCE TO NEXT SETTING
DONE KEY
ADVANCES TO TIME SETTING
SCREEN AND HOME SCREEN
UP AND DOWN KEYS
CHANGES MONTH, DAY,
YEAR AND TIME
DeSelect Day
System & Fan
FanUseEdit
Schedule
View
Clock & More
Tue
Done
PM
M23049
0120 Date (Year
Upper)
Select first two digits of current
calendar year (20 for year 2005, etc).
Date (Year
Lower)
Select last two digits of current
calendar year (05 for year 2005, etc).
Date
(Month)
Select number that represents current
calendar month.
Date
(Day)
Select number that represents current
calendar date.
0130
0140
0150
CHANGE
THE
FACTORY
SETTING
FACTORY
SETTING
ADVANCE TO
NEXT SETUP
NUMBER
PRESS TO
EXIT SETUP
GOES BACK
TO LAST
SETUP
NUMBER
View
Clock & More
Next
Go Back
SETUP
NUMBER
AM
Setup
Number
Setup
Name
(Select Your Setting)
Settings
Done
