MOUNTING

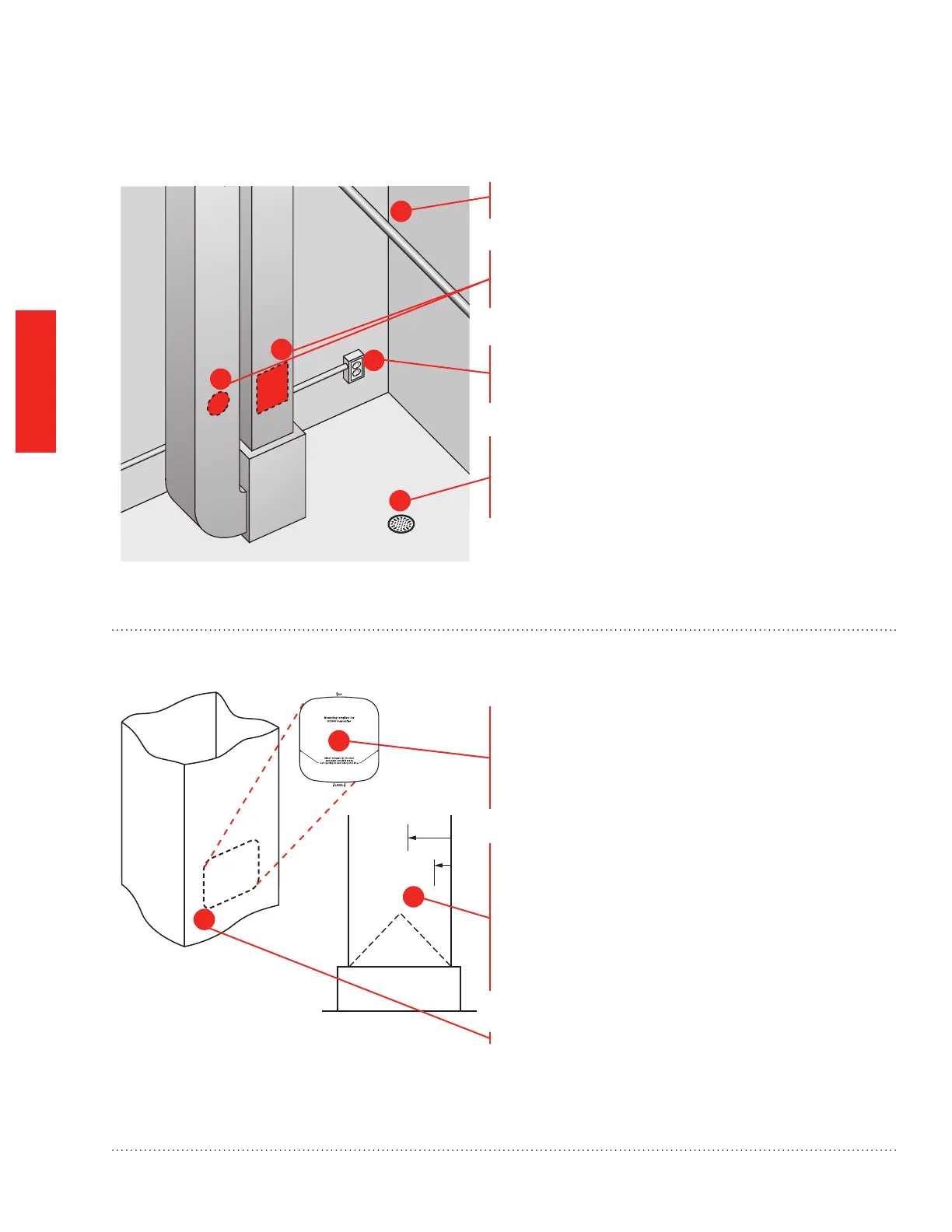

STEP ONE: Select the Mounting Location
Choose a location that has access to a water supply
pipe. Cold or hot water can be used.
Select a vertical or horizontal surface on the HVAC
duct work, with adequate space clearances, where
the humidier can be mounted.
Location must also have access to 120 VAC power.
For the HE300 Fan humidier, the power cord is 6 feet
long.
Ensure the location is near a drain. Consult local
plumbing codes for proper drainage. If no main
oor drain is available, see “Appendix C: Advanced
Draining.”
STEP TWO: Install Mounting Template to the Duct
Position the template on the duct.
• Make sure the template is level and in the desired
position on the duct. Peel adhesive backing
and press template rmly into place in desired
mounting location.
Ensure proper clearances from the air-conditioning
coil inside the duct.
NOTE: The HE300 Fan model extends into the duct
1-3/4 inch. Bypass models extend into the duct 1/2
inch. Ensure clearance inside the duct.
• For best performance, maintain at least 24 inches
downstream of open air space inside the duct.
Cut the sheet metal, following the template outline.
M29873
1
M29874
A-COIL
1-3/4
(44)
1/2
(13)
FAN
BYPASS
4
2
2
3
3
2
1
M32930
Humidier 69-2413EF—09
