| Talkman A500 | 89
Talkman A500/T5 VMT Accessories
The Talkman A500/T5 VMT is designed to be installed using RAM
®
Mounting Systems hardware. Honeywell
supplies a mounting bracket for the A500/T5 and mounting hardware from RAM Mounting Systems. Additional
hardware mounting bracket options can be purchased directly from RAM Mounting Systems (www.ram-mount.com)
to customize the installation.
The A500/T5 VMT must be mounted to a sturdy surface.

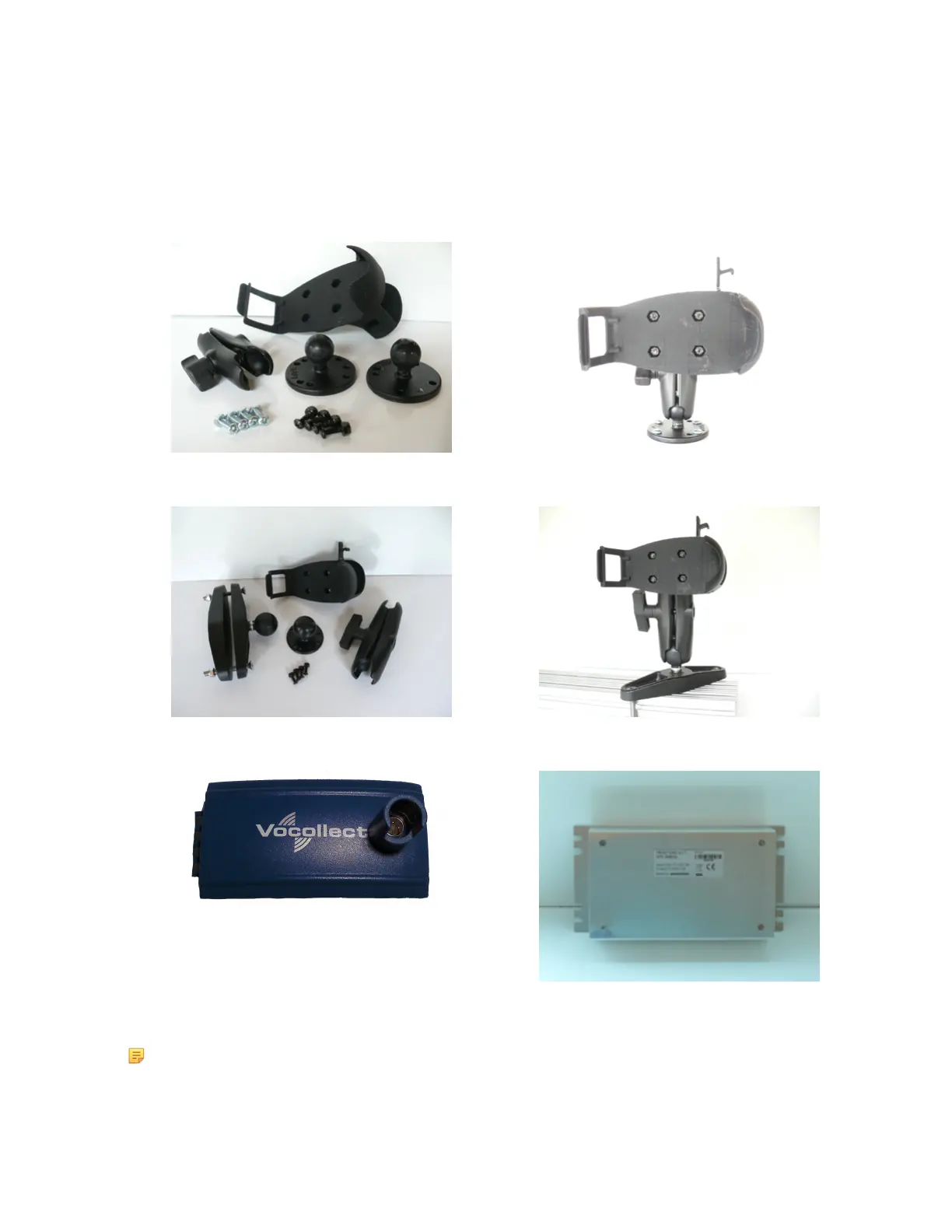

Figure 32: Screw On Mounting Parts Figure 33: Screw On Mounting
Figure 34: Clamp Mounting Parts Figure 35: Clamp Mounting
Figure 36: Battery Adapter
Figure 37: Power Supply
Note: You may provide your own power supply, but it must supply 12-15V at 1 Amp and must be limited
to less than 250VA (Watts). If you chose to provide your own, you are still required to purchase the battery
adapter cable and battery adapter for final connection to the A500 or T5-Series device.
