Honeywell Voyager 1602g Quick Start Guide

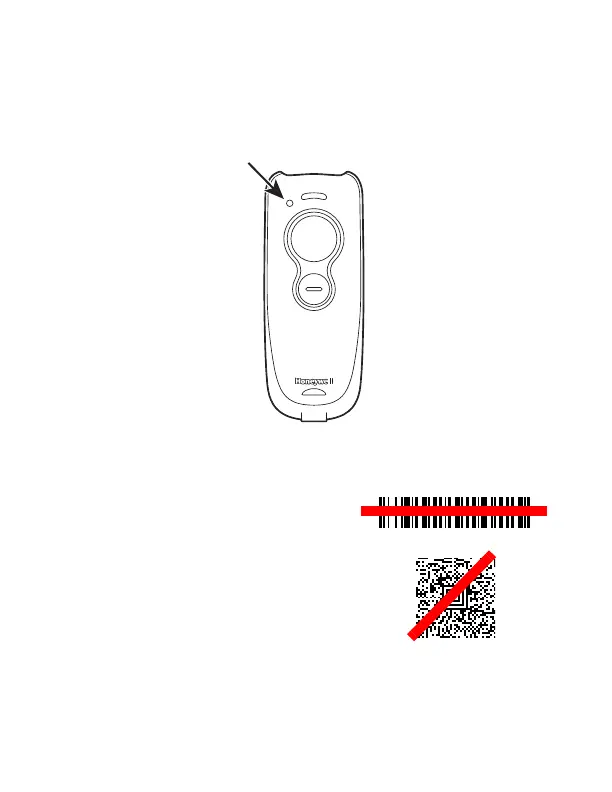

Battery Charge Indicator
When the battery is charging, the small LED at the top left of the
scanner flashes orange. When the battery is fully charged, this LED
is solid green.
Reading Techniques
The scanner projects an aiming
beam that should be centered over
the bar code, but it can be posi-
tioned in any direction for a good
read.
Hold the scanner over the bar code,
press the button, and center the
aiming beam on the bar code.
The aiming beam is smaller when
the scanner is closer to the code and larger when it is farther from
the code. Hold the scanner close to smaller bar codes, and farther
away from large bar codes to get a proper read.

Honeywell Voyager 1602g Specifications

General

Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Type	Handheld bar code reader
Sensor type	-
Scanner type	1D/2D
Pitch reading angle	-60 - 60 °
Motion tolerance (cm/s)	10
Optical sensor resolution	640 pixels
Light levels (direct sunlight)	0 - 100000 lx
2D (matrix & stacked) barcodes supported	Aztec Code, Codablock, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
Keys quantity	2 keys
Product color	Black
LED indicators	Yes
Housing material	Plastic
International Protection (IP) code	IP42
Battery life	12 h
Charging time	3 h
Battery voltage	3.7 V
Battery capacity	750 mAh
Power source type	Battery
Number of reads per charge	2250
Number of batteries supported	1
USB version	2.0
PC connection	USB 2.0
Wireless range	10 m
Bluetooth version	2.1+EDR
Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth, USB
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wireless
Mobile operating systems supported	Android, Windows Mobile, iOS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	22 mm
Width	48 mm
Height	120 mm
Weight	100 g
