54 43-TV-25-30 Iss.6 GLO Aug 07 UK
To fit the Analogue Input option card (Slot B) into the eZtrend QXe recorder you will require
an expansion card to interface to the recorder.“QXe Analogue Input (Standard) card” on
page 19
Analogue In Menu
(Main Menu > Configure > Setup > Edit Setup> Field IO > Analogue In)
Press the Analogue In button to display all the analogue inputs available.
Click on individual Analogue In number to set up each channel profile. Each channel has a
list of menu items to be configured.
Refer to connection details and “Analogue Input Channel Numbers” on page 17..
• Enabled - Toggle On and Off.
• Type - Select this for a list of available Signal Inputs.
• Sample Rate - Select this for a list of available Analogue Input sample speeds. A Fast
Scanning range of 50Hz (20ms) is available as a firmware option (not available for the
eZtrend QXe recorder). See “Firmware Credit System” on page 201.
Arranged in 2 banks of 3 inputs, and sample rate must be the same within each bank,
only for
eZtrend QXe recorder.
eZtrend QXe
Slot position Card type
Channel
numbers
Slot A 3 Analogue Inputs
6 Analogue Inputs
1 to 3
1 to 6
Slot B option card 6 Analogue Inputs 9 to 14
Slot G 4 Relay Output
8 Relay/2 Digital In
8 Digital Input/Output
1 to 4
1 to 8
1 to 8

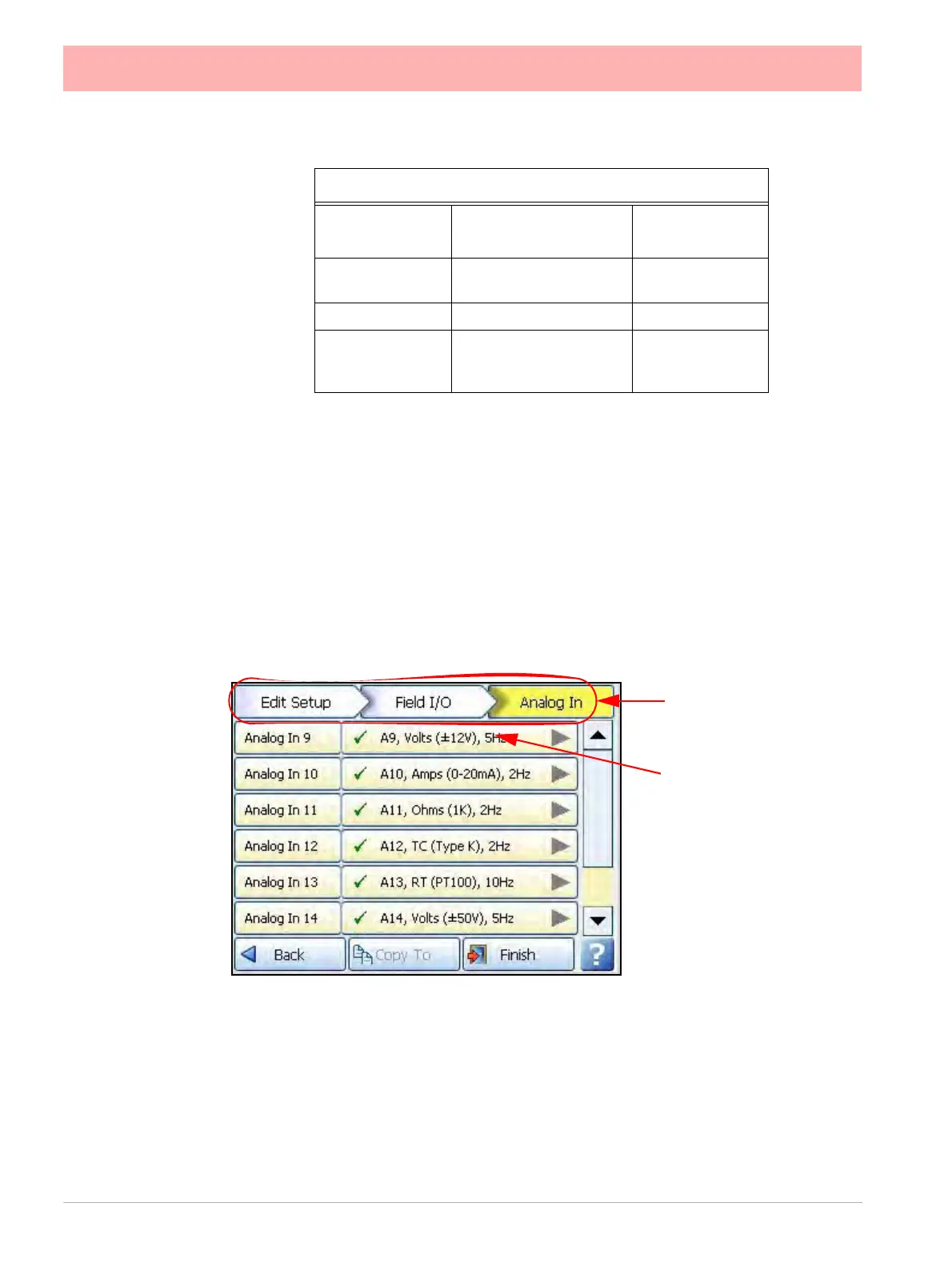

The Analogue In screen
displays all the available
Analogue Input channels.
Each channel displays its’
individual settings.
Select a numbered chan-
nel to edit the configura-
tion of each input
Menu path to current menu
To Next Page
