98 43-TV-25-30 Iss.6 GLO Aug 07 UK
Counters Menu
(Main Menu > Configure > Setup > Edit Setup > Events/Counters > Counters)
Up to 16 User Counters are available and can be used as a part of the Events system. User
Counters can be set up as a Cause or an Effect of an Event.

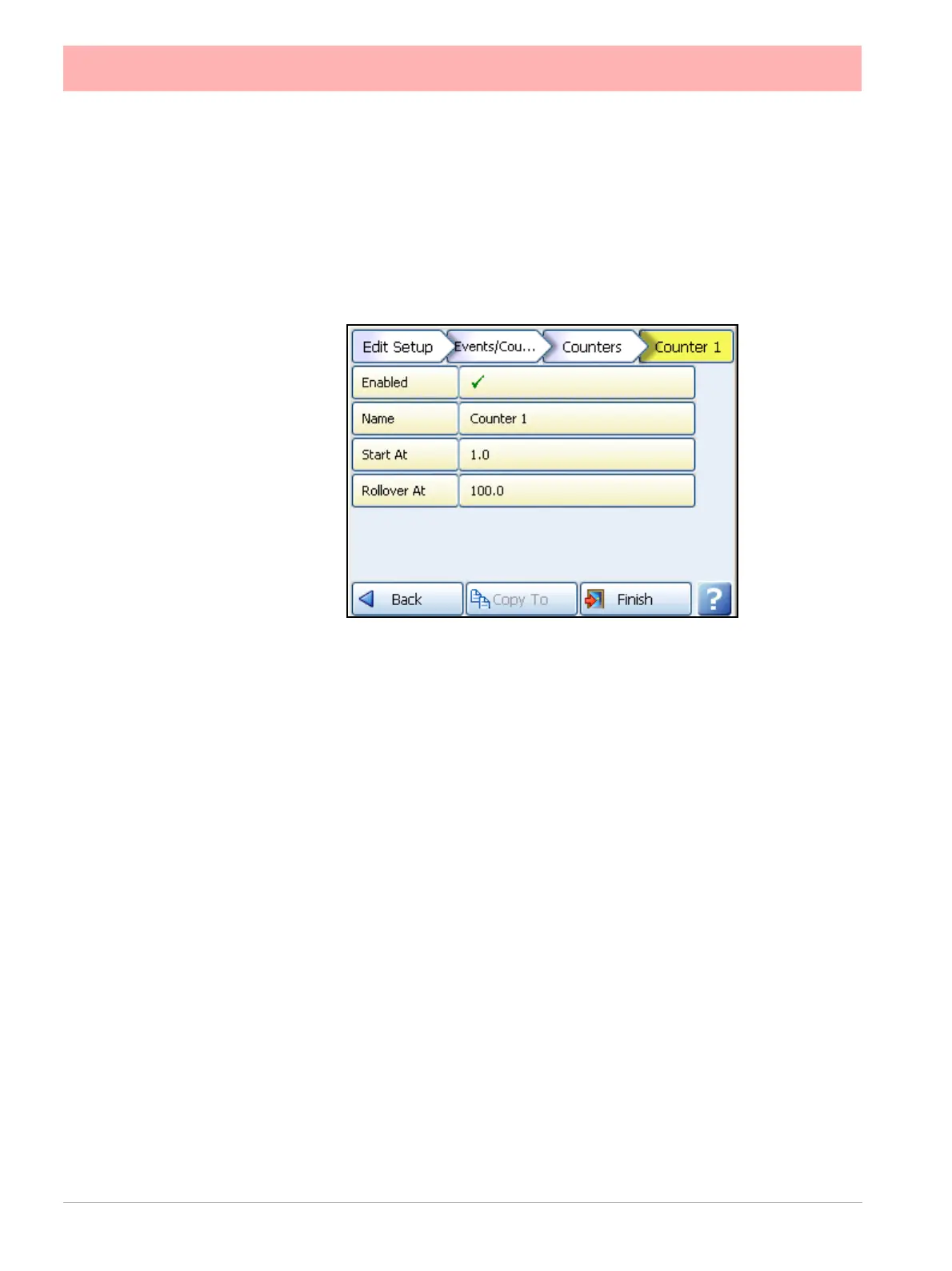

Setup a User Counter
Select the next available Counter number.
• Enabled - In the Counter # menu tick to Enable.
• Name - Name the counter for ease of identification.
• Start At - Enter the number at which you want the counter to Start At
• Rollover - Enter the number at which you want the counter to Rollover At. The default
maximum Rollover value is 3.3e+38. When the count reaches the rollover number
entered it will restart the count from your Start At number
Once a User Counter is setup it has to be assigned something to count eg. as a part as an
Event. See “User Counters” on page 90.
Preset Markers
(Main Menu > Configure > Setup > Edit Setup > Events/Counters > Preset Markers)
Set up marker text that can be used to mark the chart as a part of an Event Effect or manual
added from the process screen as a Mark on Chart.
The mark on chart functionality has been extended to include the use of 20 separate preset
markers. With some markers configured when using mark on chart the user has the option
of starting with blank text, the previously entered text or one of the preset markers. Preset
markers are also used in the Mark on chart effect and the Alert system effect. See “Error
Alert” on page 100.
To add text to a marker, select the next available marker and enter the text via the on screen
keypad. Hit the tick mark to accept the text and then go to Finish to confirm.
