EXCEL 500/600 - INSTALLATION INSTRUCTIONS
EN1R-1047GE51 R0913 10

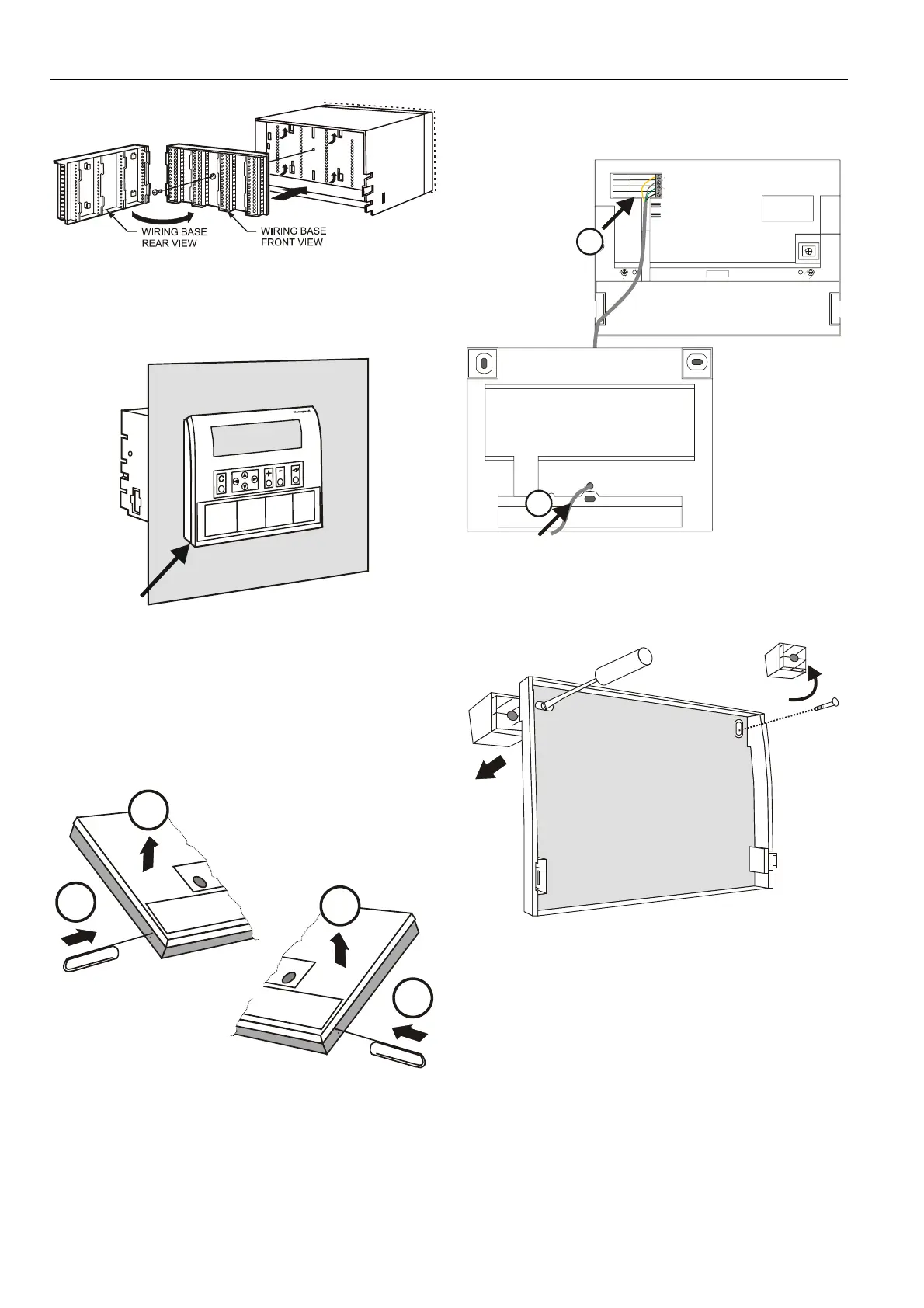

Fig. 22. Installing the wiring base
7. Complete electrical wiring.
8. Lock the cover.
Fig. 23. Locking the MMI cover
External Installation of XI582
1. Remove the front cover from the XI582 by inserting tip
of an awl (or a similar narrow, pointed object) into the
small hole on one side of the operator terminal. When
the latch releases, insert the awl into the small hole on
the other side of operator terminal and pry off the cover.
B
A
B
Fig. 24. Removing the cover
2. Route cable from the CPU module (XC6010, XC5010C,
XCL5010).
TxD(CPU)
BROWN
GREEN
WHITE
YELLOW
+VE
RxD(CPU)
GND
A
B
Fig. 25. Routing the cable
3. If mounting on a wall, remove feet.
Fig. 26. Removing feet
4. Attach the housing to the wall.
To Next Page
