Xenon/Granit User Guide 11

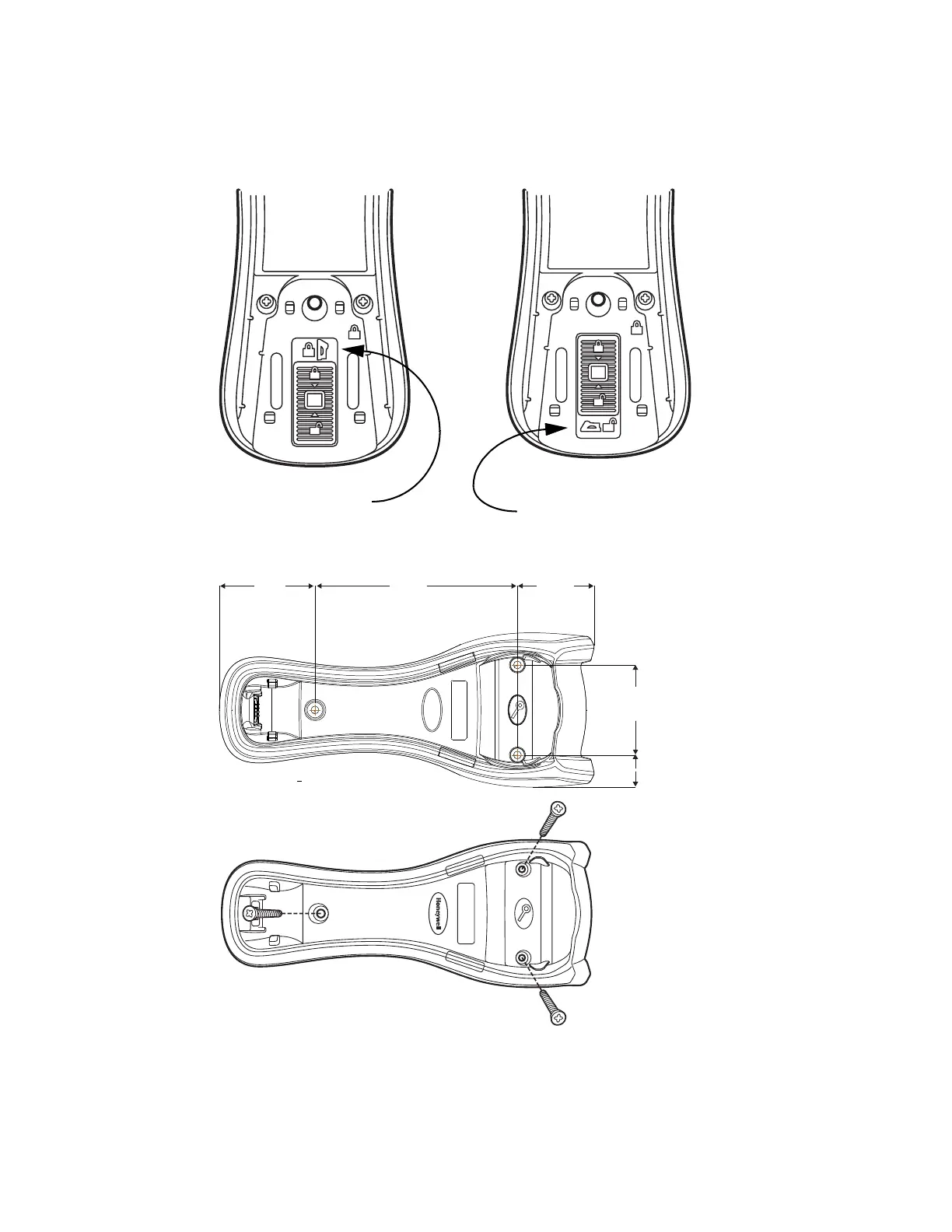

When mounted on a vertical surface, a locking system is used to secure the scan-
ner when it is in the stand. When mounted on a horizontal surface, the locking
mechanism should be set to unlocked (pushed up). When mounted on a vertical
surface, the locking mechanism should be set to locked (pushed down).
Use 30mm screws, appropriate for the mounting surface material, to mount the
base securely.
Locked position
for vertical mount
Unlocked position
for horizontal mount
2 in.
51.17mm
5.31 in.
134.92mm
2.51 in.
63.7mm
2.36 in.
60mm
.84 in.
21.42mm
