Mount a CCB01-010BT Charge Base
Mount a CCB02-100BT/CCB05-100BT Base

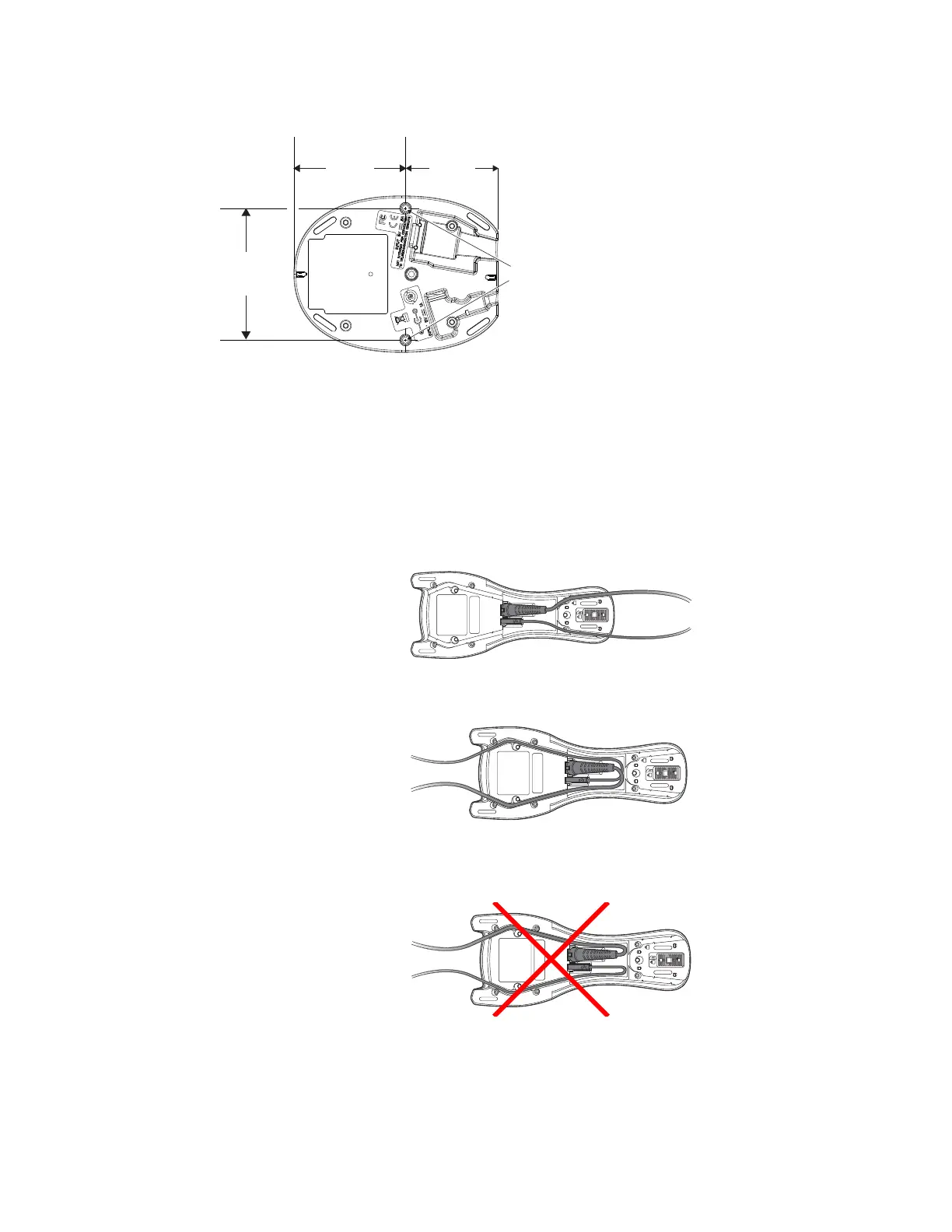

The CCB02-100BT or CCB05-100BT Base can be mounted on either a horizontal
or vertical surface. The cables can be routed through either the top or the bottom
of the base.
The cables can be routed down through the bottom of the base, securing the
cables in the wireways.
The cables can also be routed up through the top of the base, crossing them over
and securing the cables in the wireways.
When routing the cables up through the top of the base, be sure to cross the cables
over before placing in the wireways. If not, too much strain is placed on the cable
connectors.
8x32 thread
x .39 in. (10mm) deep
2.36 in.
59.84mm
3.35 in.
85.09mm
2.8 in.
72.1mm
