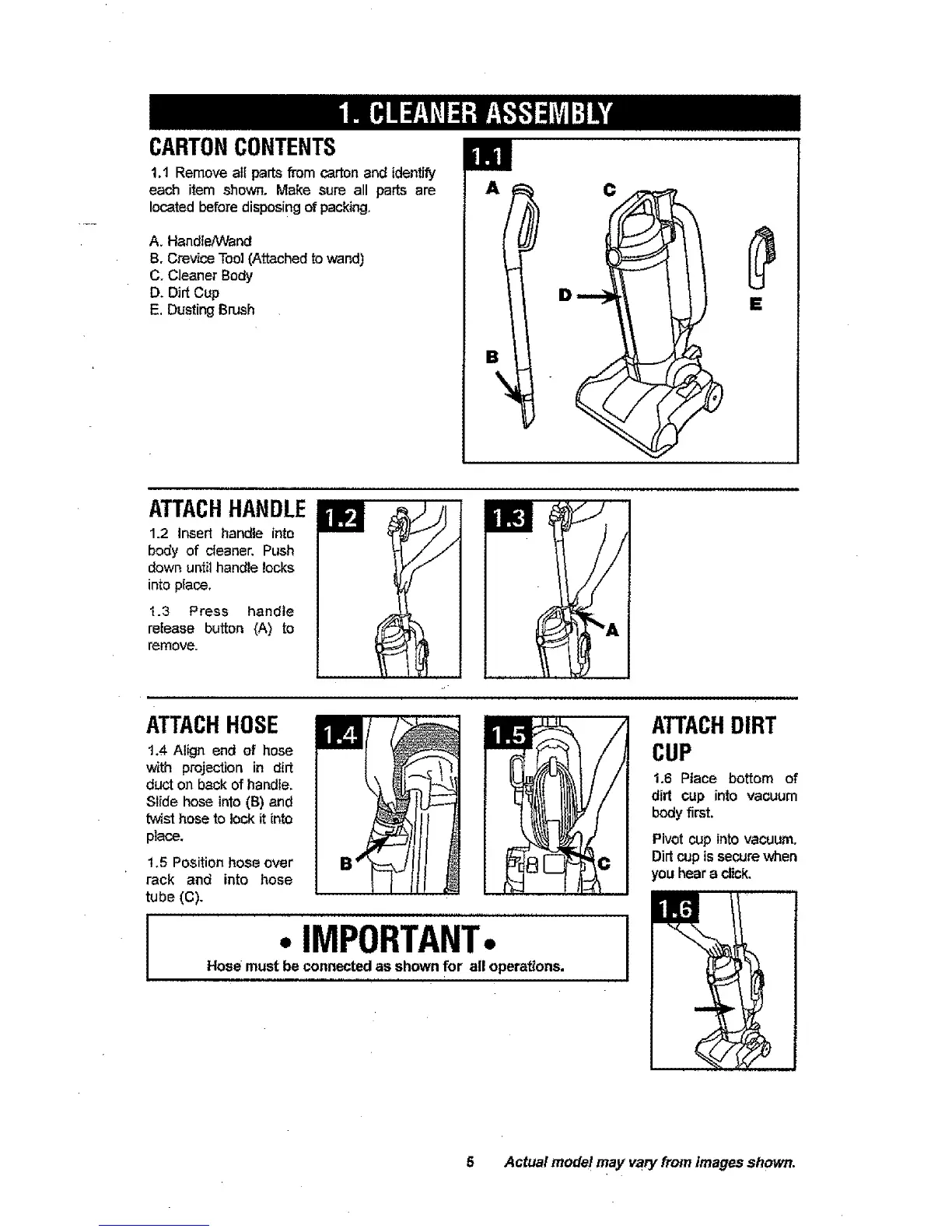

CARTONCONTENTS
1.1 Remove aI[ parts from carton and identify
each item shown. Make sure all parts are
located before disposing of packing.
A. HandlefWand
B. Crevice Tool (Attached to wand)
C. Cleaner Body
D. Dirt Cup
E, Dusting Brush
=,
°
ATTACHHANDLE
1.2 insert handle into
body of cleaner. Push
down untilhandle locks
into place,
1.3 Press handle
release button (A) to
remove.
ATTACHHOSE
t.4 AIign end of hose
with projection in dirt
duct on back of handle.
Slide hose into (B) and
twist hose to took it into
pIace.
1.5 Position hose over
rack and into hose
tube (C).
I
• IMPORTANT.
Hose must be connected as shown for all operations.
ATTACHDIRT
CUP
1.6 Piace bottom of
dirt cup into vacuum
body first.
Pivot cup into vacuum.
Dirt cup is secure when
you hear a click.
5 Actual model may vary from images shown,
