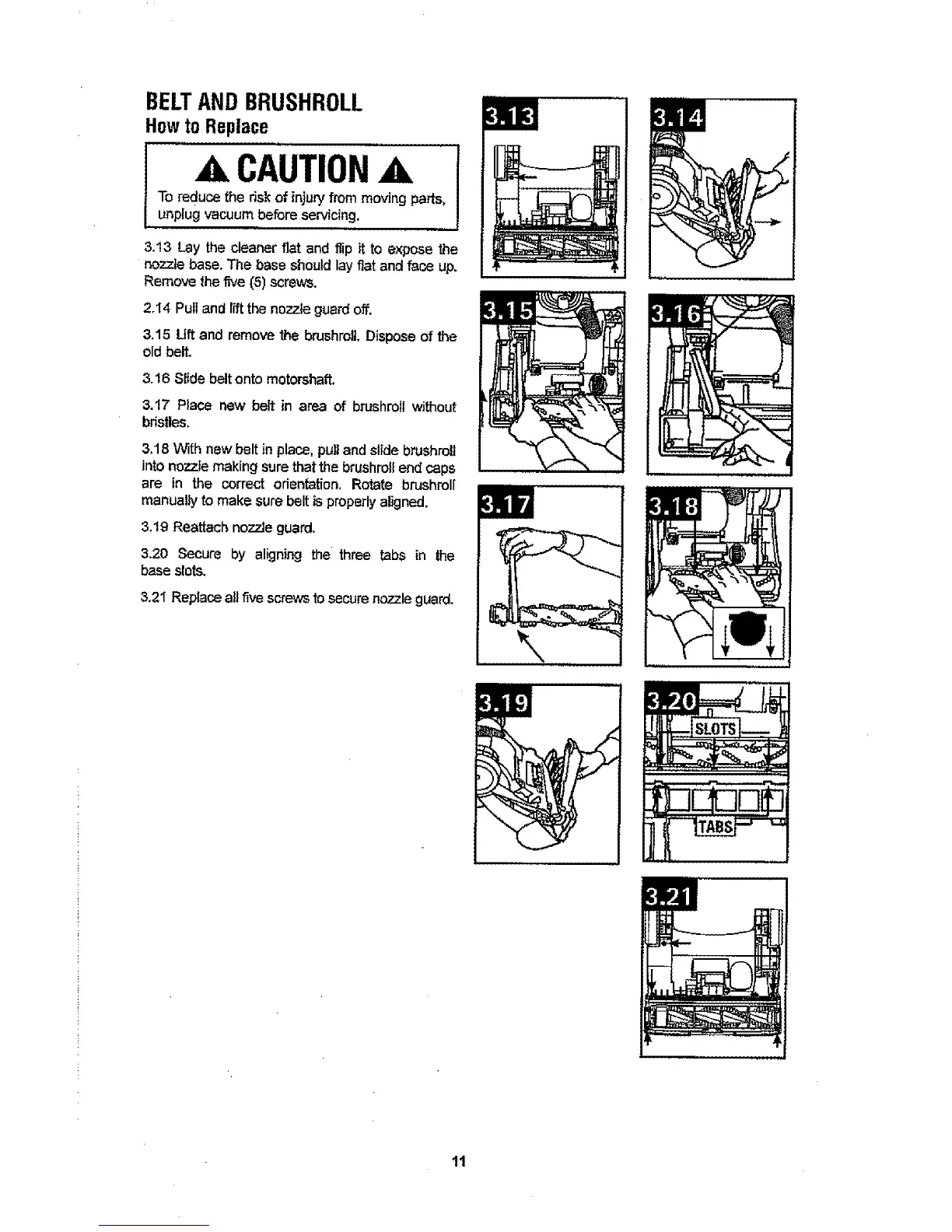

BELTAND BRUSHROLL
HowtoReplace
A CAUTIONA
To reduce the risk of injury from moving parts,
unplug vacuum before servicing.
3,13 Lay the cleaner fiat and flip it to expose the
nozzle base. The base should lay fiat and face up.
Remove the five (5) screws.
2.t4 Pull and lift the nozzle guard off.
3.15 Lift and remove the brushrolL Dispose of the
old belt.
3.16 Slide belt onto motorshaft
3.17 Place new belt in area of brushroll without
bristles.
3.t8 With new belt in place, pull and slide brushrolI
into nozzle making sure that the brushroll end caps
are in the correct odentalton, Rotate brushroll
manually to make sure belt is properly aligned.
3.19 Reattech nozzle guard.
3.20 Secure by aligning the three tabs in the
base slots.
3.2I Replace all five screws to secure nozzle guard.
\
