Hoover UH71230 Operating, And Servicing Instructions

BELT __
CAUTION,A
Toreducethe risk ofinjury from moving parts- Unplug
beforeservicing.

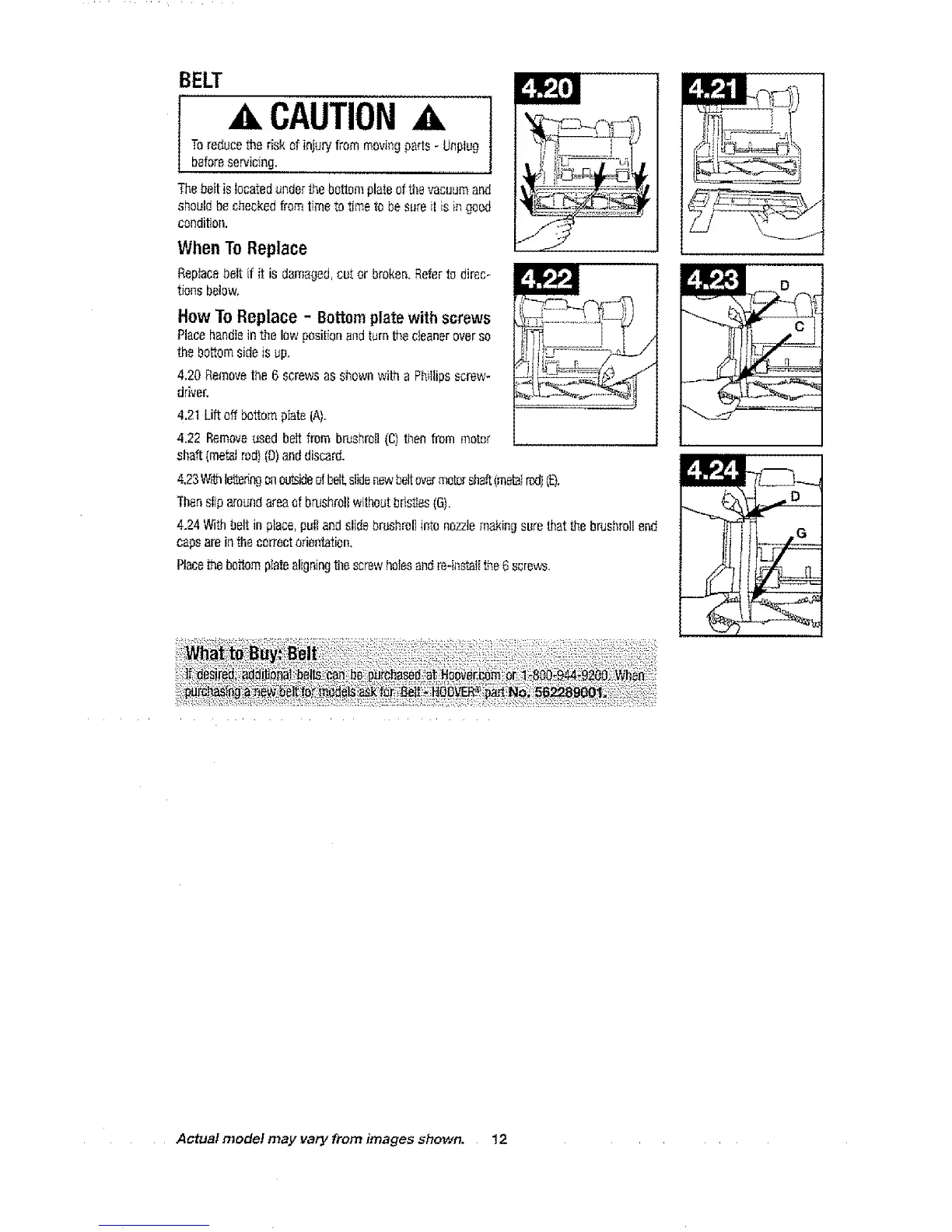

The belt is locatedunderthe bottomplateoftbe vacuumand
should be checkedfrom timeto time to be sureit is in good
condition.
When To Replace
Reptacebelt if it is damaged,cut or broken. Referto direc-
tbns below,
• il i!i' !4,
How ToReplace - Bottomplatewithscrews
Placehandleinthe low positionand turnthe cleaner overso
the bottomside is up,
4.20 Removethe 6 screws as shown with a PNlips screw-
driver.
4.21 Lift off bottom pbte (A).
4.22 Removeused belt from b#Jshrot_(C)then from motor
shaft(metal rod)(D)and discard.
4,23W_ le_ on outsideofbelt,slidenewLeftoverrr_torshaft(meta;rod)[tb.
Thenslip aroundareaof brushrolIwithoutbristles (G).
424 With belt in p}ace,puI_and slide broehrol{into nozzlemaking sure that the brushro]lend
capsare in the correctorientation,
Placethebottomplatealigningthe screwlmtesand re-installthe 6 screws.
Actual model may vary from images shown. 12

Hoover UH71230 Specifications

General

Type	Upright
Filter Type	HEPA
Bagless	Yes
Cordless	No
Model	UH71230
Color	Blue
Cord Length	25 feet
Cleaning Path Width	13.5 inches
Power	1200 W
Motor Amperage	12 A
