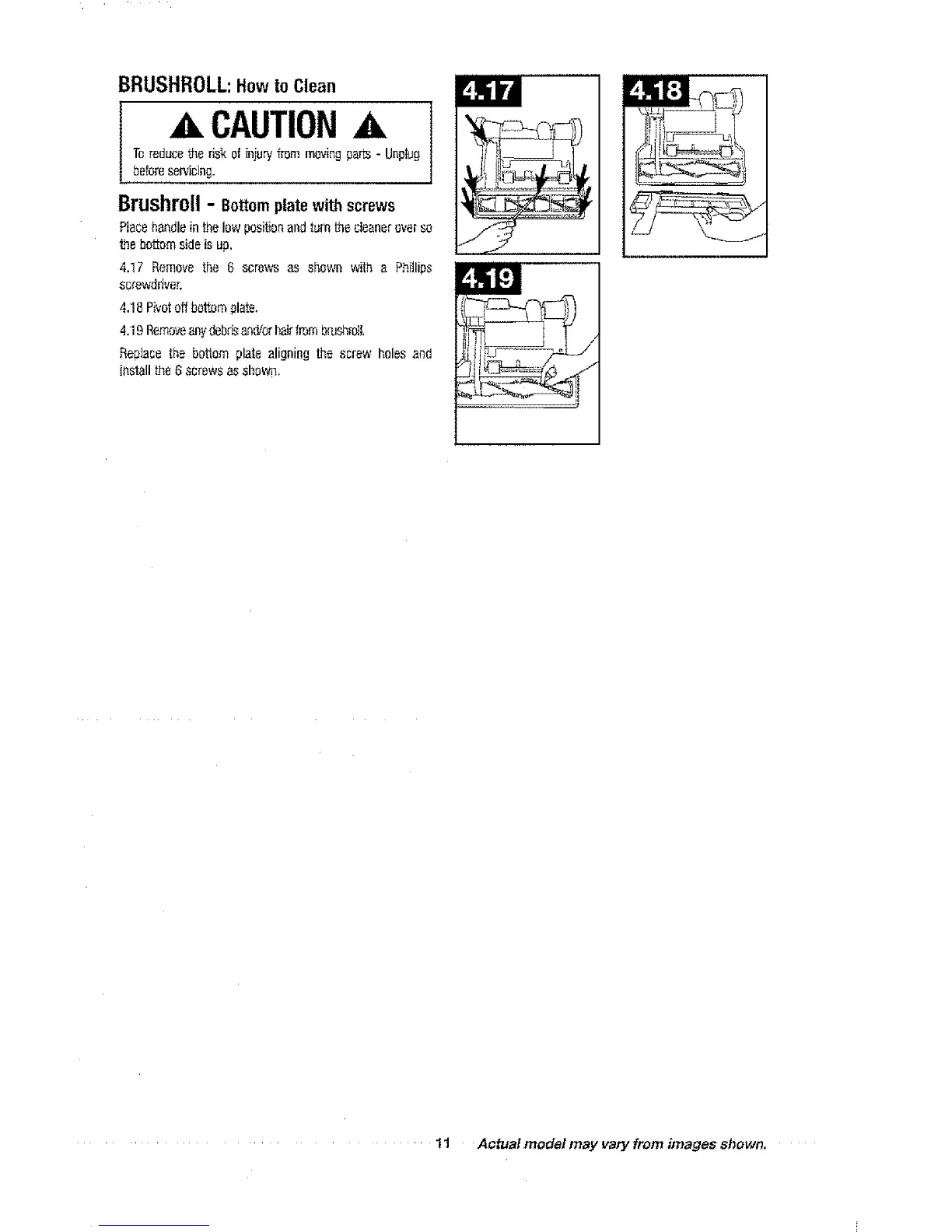

BRUSHROLL:HowtoClean
CAUTIONA I
Toreducethe risk of injuryfrom movingparts- Unplug
beforeservicing.
Brushroll- Bottomplatewithscrews
Placehandlein the low positionand turnthe cleaner overso
the bottomsideis up.
4.t7 Remove the 6 screws as shown with a Phillips
screwdriver,
4.18 Pivotoff bo_m plate,
4.19 Removeany deb_ a_diorl_r frombrush_aIL
Replace the bottom plate aligning the screw holes and
inst_ll _he6 screws asshown,
_
t I Actual model may vary from images shown,
