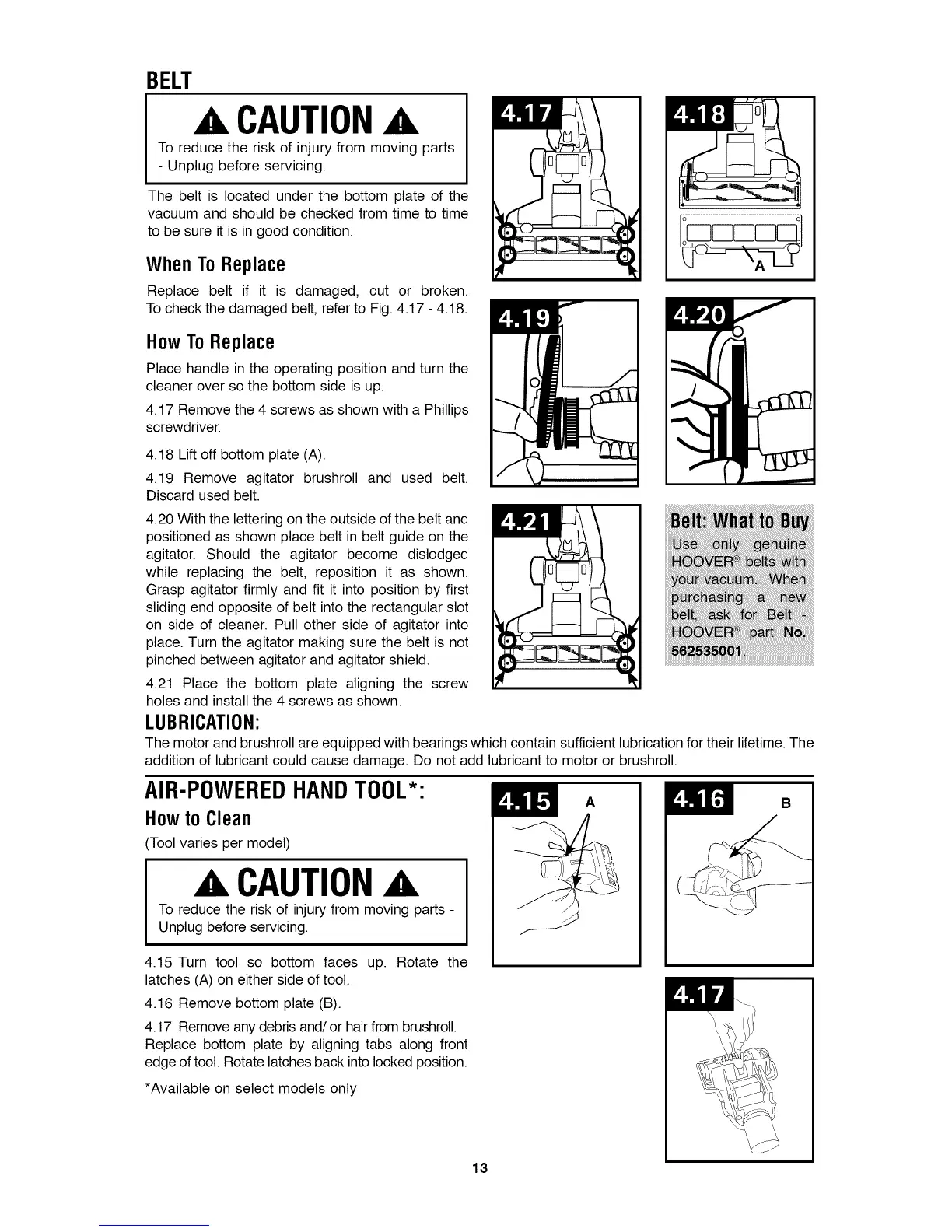

BELT
,& CAUTIONA
To reduce the risk of injury from moving parts
- Unplug before servicing.
The belt is located under the bottom plate of the
vacuum and should be checked from time to time
to be sure it is in good condition.
When To Replace
Replace belt if it is damaged, cut or broken.
To check the damaged belt, refer to Fig. 4.17 - 4.18.
HowTo Replace
Place handle in the operating position and turn the
cleaner over so the bottom side is up.
4.17 Remove the 4 screws as shown with a Phillips
screwdriver.
4.18 Lift off bottom plate (A).
4.19 Remove agitator brushroll and used belt.
Discard used belt.
4.20 With the lettering on the outside of the belt and
positioned as shown place belt in belt guide on the
agitator. Should the agitator become dislodged
while replacing the belt, reposition it as shown.
Grasp agitator firmly and fit it into position by first
sliding end opposite of belt into the rectangular slot
on side of cleaner. Pull other side of agitator into
place. Turn the agitator making sure the belt is not
pinched between agitator and agitator shield.
4.21 Place the bottom plate aligning the screw
holes and install the 4 screws as shown.
LUBRICATION:
The motor and brushroll are equipped with bearings which contain sufficient lubrication for their lifetime. The
addition of lubricant could cause damage. Do not add lubricant to motor or brushroll.
AIR-POWEREDHANDTOOL*:
ENI[,'1
How to Clean
(Tool varies per model)
A CAUTIONA
To reduce the risk of injury from moving parts -
Unplug before servicing.
4.15 Turn tool so bottom faces up. Rotate the
latches (A) on either side of tool.
4.16 Remove bottom plate (B).
4.17 Remove any debris and/or hair from brushroll.
Replace bottom plate by aligning tabs along front
edge of tool. Rotate latches back into locked position.
A
B
*Available on select models only
13
