Attach hose clip
Push tab on side of clip into hole on
side of handle.
4

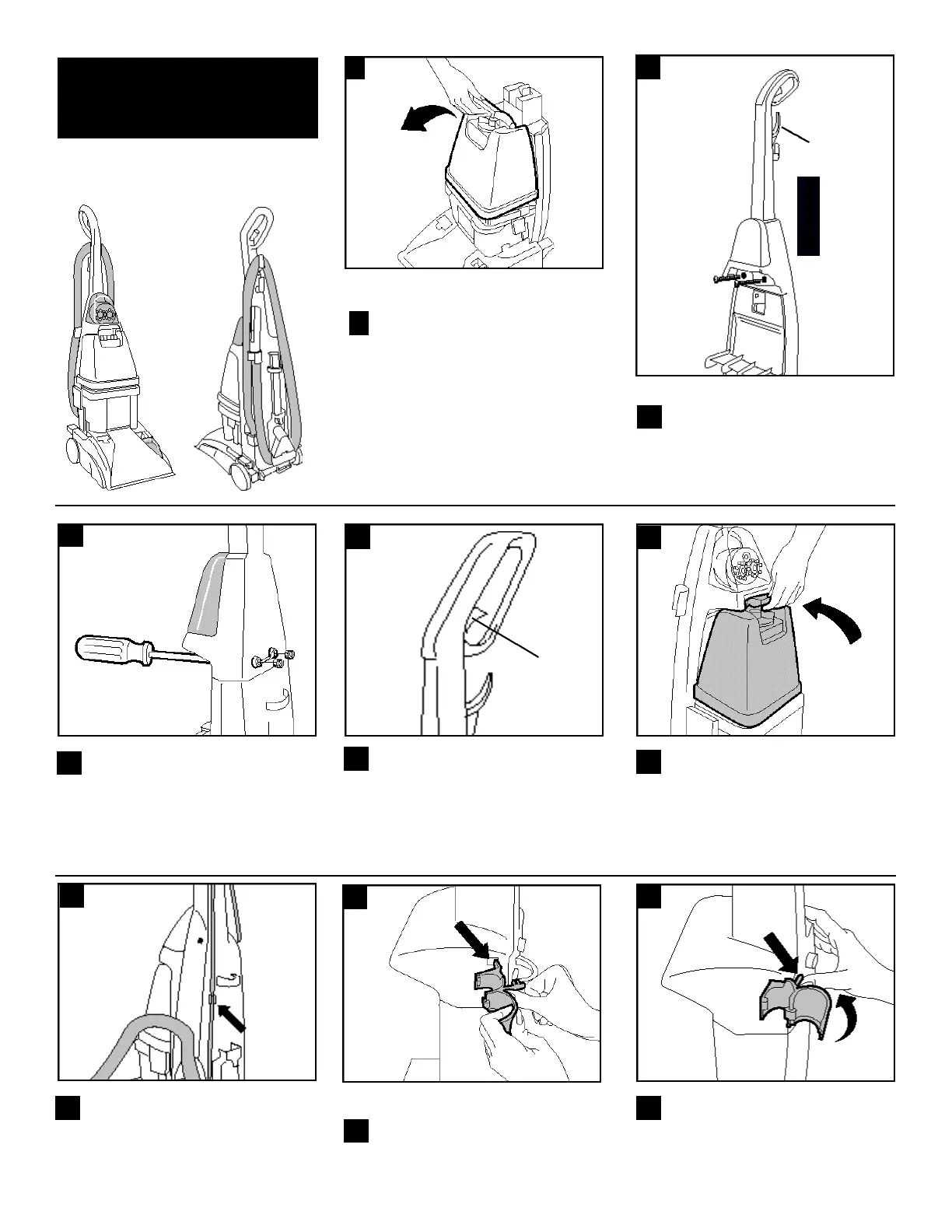

The assembled cleaner will look like this
drawing (Ultra model shown).
Assembling
Deep Cleaner
2
Attach upper handle
Remove clean solution tank (upper
tank) from deep cleaner.
2
With cord hook (A) to back of deep
c l e a n e r, push upper handle down onto
lower handle. Push b o l t s into holes on
f r ont of handle. If bolts will not go
t h r ough hole easily handle is not pushed
c o m p l e t e l y dow n .
3
3
4
5
6
Place nuts in recessed areas on
back of handle. Hold each nut in
place while tightening each bolt securely
with a Phillips screw driver.
Only two nuts are needed on this model.
The extra nut is not required but has
been provided for your convenience.
4
7
8
9
8
When handle sections are complete-
ly together, squeeze trigger (B) on
upper handle to snap trigger rod In
place.
5
A
B
Replace clean solution tank (upper
tank) by positioning bottom first.
Press on tank handle to snap top of
tank into place.
6
Press cord into cord clip on back of
handle. Pull cord tight.
7
Pivot clip and push other tab into
hole at back of handle to lock into
place.
9
