Controls and Equipment
Page 7
glEAM
™
MOdEl (glM)

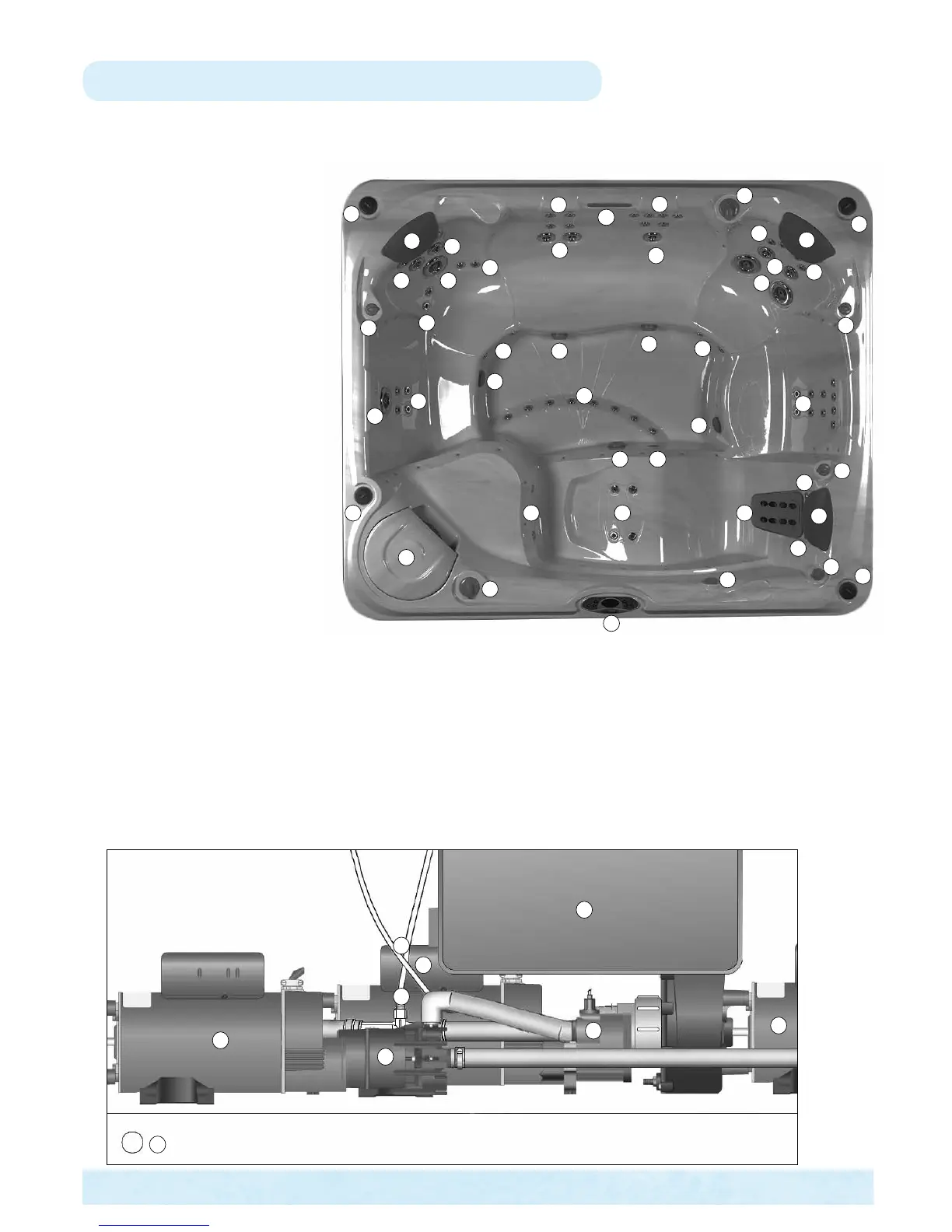

EQUIPMENT COMPARTMENT
1. Silent Flo 5000
®
circulation pump
2. Wavemaster
®
jet pump
3. No-Fault
®
heater
4. IQ 2020
®
spa control box
5. Drain valve
6. Ozone injector (optional accessory)
7. Bonding terminal
OVERHEAD VIEWS
A. Combination XL Hydromassage
jets
B. Combination Hydromassage jets
C. Direct Hydromassage jets
D. Secondary suction
E. Spa pillow
F. Moto-Massage
®
DX
G. Filter compartment
H. Control panel
I. Air lever for Direct
Hydromassage jets
J. Diverter lever
K. Waterfeaturelever
L. Water feature
M. Heater jet / Ozone (optional
accessory)
N. Speaker (optional accessory)
