Hotsy 795SS - Burner Assembly; Burner Parts List

8.914-355.0 • Rev. 07/17
OPERATOR’S MANUAL
PRESSURE WASHER
22

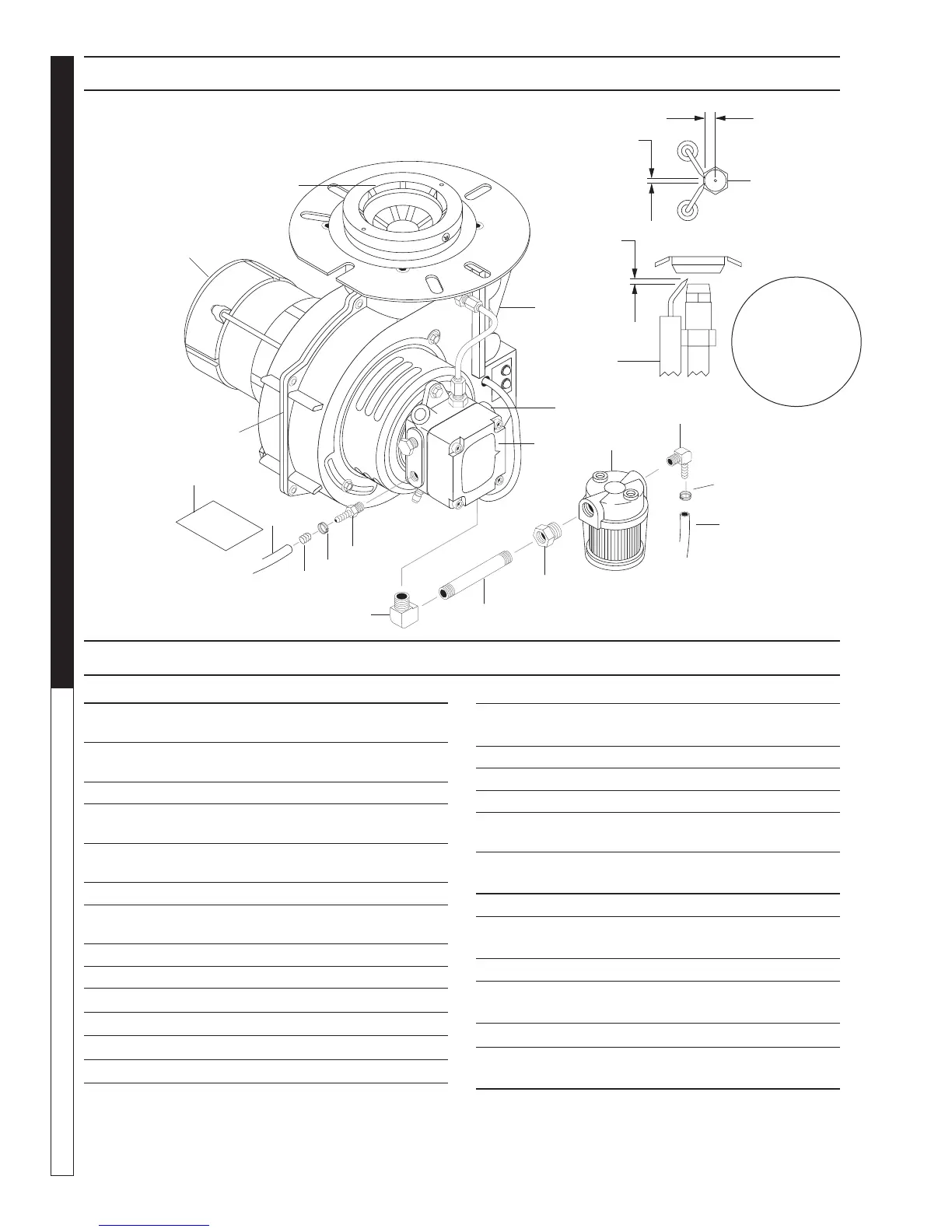

BURNER ASSEMBLY
BURNER PARTS LIST
16
13
17
7
6
11
10
9
8
12
14
5
4
3
2
17
19
15
20
1
ITEM PART NO. DESCRIPTION QTY
1 8.756-254.0 Burner, Msr 3.75 230V
1T 230V S
2 8.706-941.0 Hose Barb, 1
1/4" Barb x 1/4" Mpt, Brass
3 8.706-827.0 Elbow, 1/4" Street 1
4 9.803-043.0 Nipple, Pipe 1/4" x 2" 1
Zinc Sch 80 Mpt
5 8.706-297.0 Bushing, 3/8" Steel Yellow 1
Chrome
6 8.709-153.0 Filter, Fuel Hotsy, 3/8" Fem 1
7 8.706-965.0 Hose Barb, 1
1/4" Barb x 3/8" ML Pipe, 9
8 8.700-760.0 Fuel Pump, Suntec, 230V 1
9 8.716-709.0 Solenoid, Diesel Fuel 220V 1
10 8.919-115.0 Igniter, 230V Crossfire 1
11 8.750-778.0 Electrode Crossfire 1
12 8.750-781.0 Air Cone, F-22 Crossfire 1
13 8.755-610.0 Fuel Nozzle, 1.75 x 80 AZ
ITEM PART NO. DESCRIPTION QTY
14 8.750-518.0 Motor, 1/7 HP 230V 1
60Hz Crossfire
15 9.802-254.0 Hose, 1/4" Push-On, 18¨
16 9.802-254.0 Hose, 1/4" Push-On 21¨
17 6.390-126.0 Clamp, Hose, .46-.54 St 1
18 8.750-933.0 Band Hose Clamp, Hose
id 1/8" - 5/16" 1
19 8.754-911.0 Check Valve, 1 way,
1/4" BARB 1
20 8.717-711.0 ▲Screen Fuel Filter 1
9.802-649.0 ▲Blower Wheel 1
8.750-520.0 ▲Fan, Crossfire 1
8.750-543.0 ▲Coupling, Crossfire 1
9.802-646.0 ▲Valve Stem Kit Cleancut 1
Pump
9.802-666.0 ▲Screen Fuel Pump 1
9.802-514.0 ▲Strain Relief, Lt, Str, 1
1/2" Npt, .23-.45D
▲Not Shown
1/8"min
5/32" max Gap
1/4" Above
nozzle center
1/8" AC
3/16" DC Nozzle-to-
tip spacing
Cone distances
and electrode
gaps checked with
burner gage
(8.922-740.0), sold
separately.
1
1
