Hotsy 795SS - Fuel Tank Assembly and Parts List; Float Tank Assembly and Parts List

8.914-355.0 • Rev. 07/17
23
PRESSURE WASHER
OPERATOR’S MANUAL

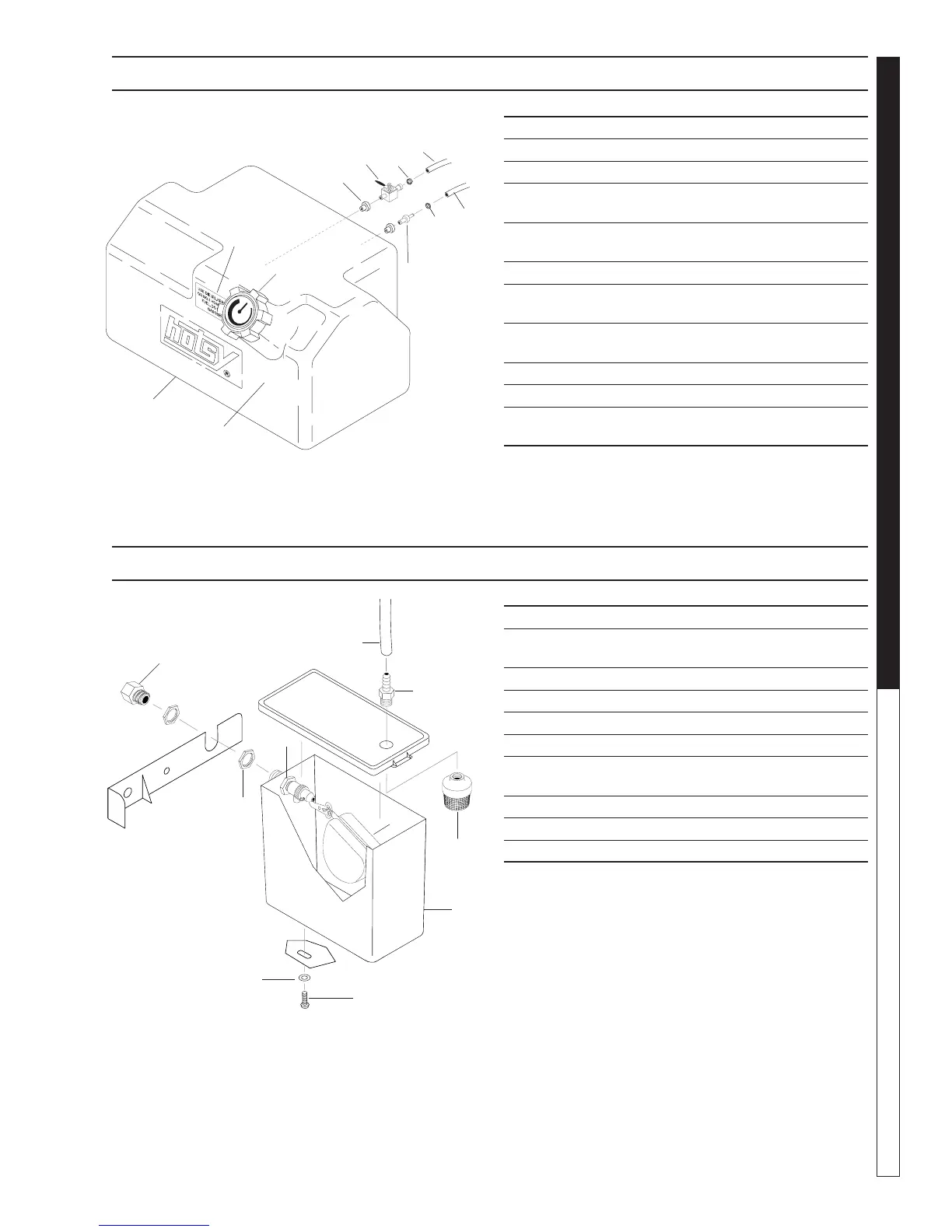

FUEL TANK ASSEMBLY AND PARTS LIST
11
8
5
6
To Burner
Inlet
7
3
4
2
1
To Burner
Outlet
10
9
FLOAT TANK ASSEMBLY AND PARTS LIST
6
3
8
9
10
4
5
7
2
1
ITEM PART NO. DESCRIPTION QTY
1 8.706-614.0 Tank, Fuel, 8 Gal Hotsy 1
2 9.803-535.0 Cap With Fuel Display 14" 1
3 9.802-053.0 Bushing, Fuel Line, Rubber 2
4 9.802-141.0 Hose Barb, 1/4" Barb x 3/8" 1
Barb, Dou
5 9.802-254.0 Hose 1/4" x 20" Push-On, 15"
Fuel Line
6 6.390-126.0 Clamp, Hose, .46-.54 St 1
7 9.802-177.0 Valve, 1/4" Shut Off, 1
180 Deg
8 9.802-254.0 Hose 1/4" x 20" Push-On, 25"
Fuel Line
9 8.901-134.0 Label, Fuel Type 1
10 8.901-119.0 Tag, Oil Burner 1
11 8.750-933.0 Band hose clamp,
hose id 1/8" - 5/16" 1
ITEM PART NO. DESCRIPTION QTY
1 9.802-259.0 Hose, 1/2" Push-On 12"
2 8.706-947.0 Hose Barb, 1/2" Barb x 1/2" 1
Mnpt, Brass
3 8.707-310.0 Valve, Float Brass, Hotsy 1
4 8.707-311.0 Adapter, Float Valve, Hotsy 1
5 8.707-312.0 Nut, 1" Adapter, Float Valve 2
6 8.707-061.0 Strainer, 1/2" Basket 1
7 9.802-147.0 Swivel, 3/8" Mp x 3/4" Ghf 1
W/ Strainer
8 8.706-641.0 Tank, Float Plastic, W/ Lid 1
9 8.632-751.0 Screw, 10-16 x 5/8 Tek 1
10 9.802-802.0 Washer, 1/4" Flat Sae Zinc 1
