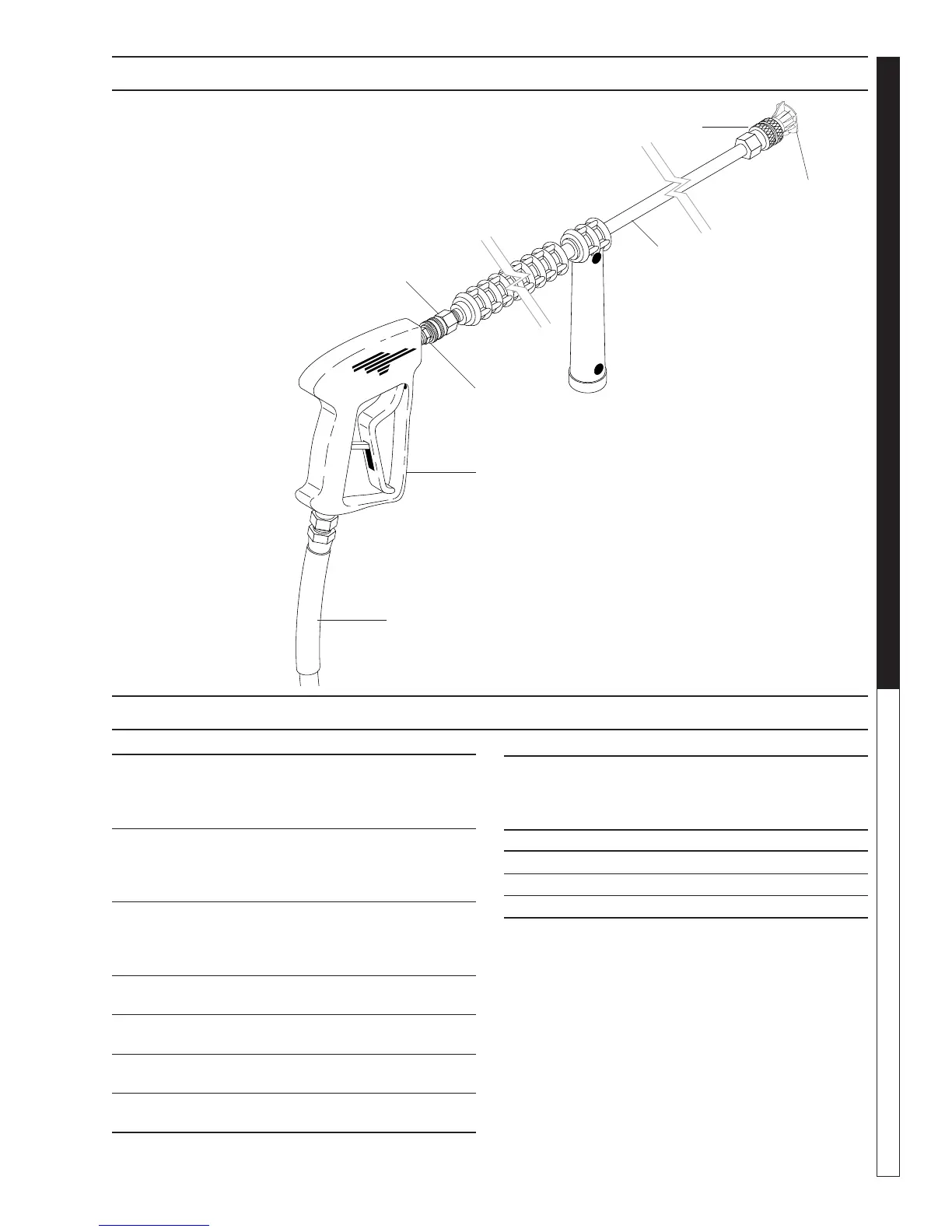

HOSE, SPRAY GUN & WAND ASSEMBLY
HOSE, SPRAY GUN & WAND ASSEMBLY
1,2,3
4
5
8
4
7
6
ITEM PART NO. DESCRIPTION QTY
1 8.712-345.0 Nozzle, 0004 Red 1
(790SS, 895SS)
8.712-353.0 Nozzle, 0005 Red 1
(795SS, 795SS-208)
2 8.712-346.0 Nozzle, 1504 Yellow 1
(790SS, 895SS)
8.712-354.0 Nozzle, 1505 Yellow 1
(795SS, 795SS-208)
3 8.712-348.0 Nozzle, 4004 White 1
(790SS, 895SS)
8.712-356.0 Nozzle, 4005 white 1
(795SS, 795SS-208)
4 9.802-164.0 Coupler, 1/4" Socket, 2
Female Brass
5 8.725-389.0 Wand, Single, 36", Insulated 1
W/ Side Grip
6 8.707-139.0 Coupler, 1/4" Plug, Male 1
Steel/Zinc
7 8.751-235.0 Gun, Hotsy, H1050 1
5000 PSI, 10.4 GPM
ITEM PART NO. DESCRIPTION QTY
8 8.916-740.0 Hose, 3/8" x 50', 1W, Ts, 1
So x Sw ((All Except 895SS)
8.739-183.0 Hose, 3/8" x 50', 2W, Tf, 1
So x Sw (895SS)
REPLACEMENT PARTS
J 8.717-661.0 Wand Grip 1
J 8.706-670.0 Wand Handle 1
8.751-119.0 Kit, Gun Repair 1
