Hotsy 795SS - VBA Unloader Exploded View; VBA Unloader Exploded View Parts List

8.914-355.0 • Rev. 07/17
OPERATOR’S MANUAL
PRESSURE WASHER
34

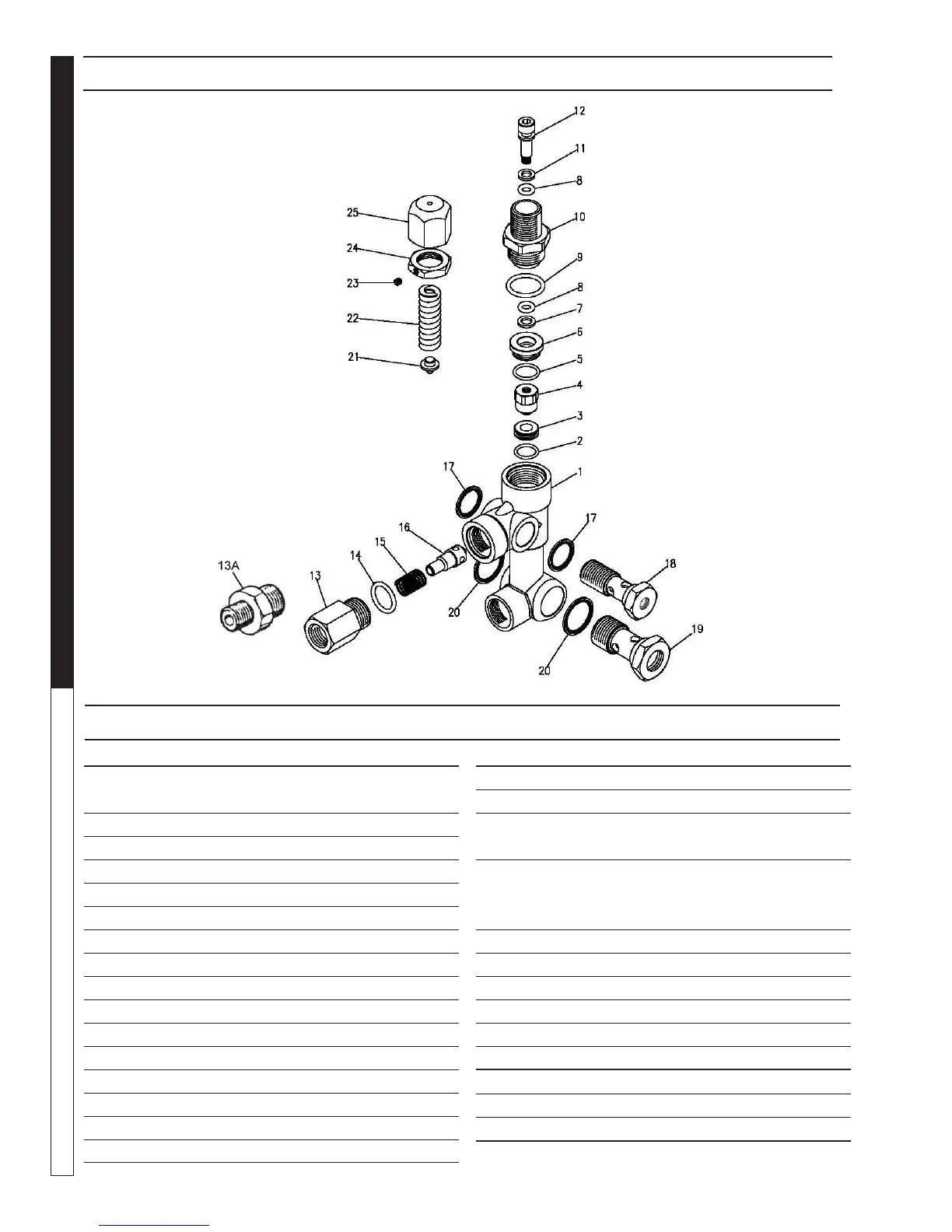

VBA UNLOADER EXPLODED VIEW
VBA UNLOADER EXPLODED VIEW PARTS LIST
8.715-491.0
5-3303
#921460
ITEM PART NO. DESCRIPTION KIT QTY
1 Body Valve (KG) 1
Body Valve (KS) 1
2 O-Ring A,C 1
3 Seat C 1
4 Ball, Sub-Assy C 1
5 O-Ring A 1
6 9.8 03 -9 07. 0 Guide Bushing 1
7 Teon Ring 1
8 O-Ring A 1
9 O-Ring A 2
10 9.803 -911.0 Connector 1
11 Teon Ring A 1
12 70-120207 Stem C 1
13 9.803-941.0 Connector Female 1
13A 9.702-892.0 Connector Male
14 O-Ring A,B 1
15 Spring B 1
ITEM PART NO. DESCRIPTION KIT QTY
16 Poppet B 1
17 9.802-893.0 Seal Washer 3/8 2
18 9.803-915.0 Banjo Bolt 3/8" w 1/8" Pilot 1
9.803-919.0 Banjo Bolt 3/8" Solid Cap 1
19 9.803-920.0 Banjo Bolt 1/2" w 1/4" Pilot 1
8.750 -105.0 Banjo Bolt 1/2" Solid Cap
9.803-919.0 Banjo Bolt 3/8" Solid Cap
20 9.803-921.0 Seal Washer 1/2 2
21 Plate C 1
22 Spring C 1
23 8.933-021.0 Set Screw 1
24 9.803-925.0 Nut 1
25 9.803-926.0 Brass Handle 1
Kit A 8.717-672.0 O-Ring Repair Kit
Kit B 8.717-673.0 Outlet Kit
Kit C 8.717- 674.0 Stem Repair Kit
8.715-490.0
5-3300
#921465
