Hotsy 795SS - Control Panel Assembly (790 SS, 795 SS, 795 SS-208); Control Panel Parts List

8.914-355.0 • Rev. 07/17
OPERATOR’S MANUAL
PRESSURE WASHER
20

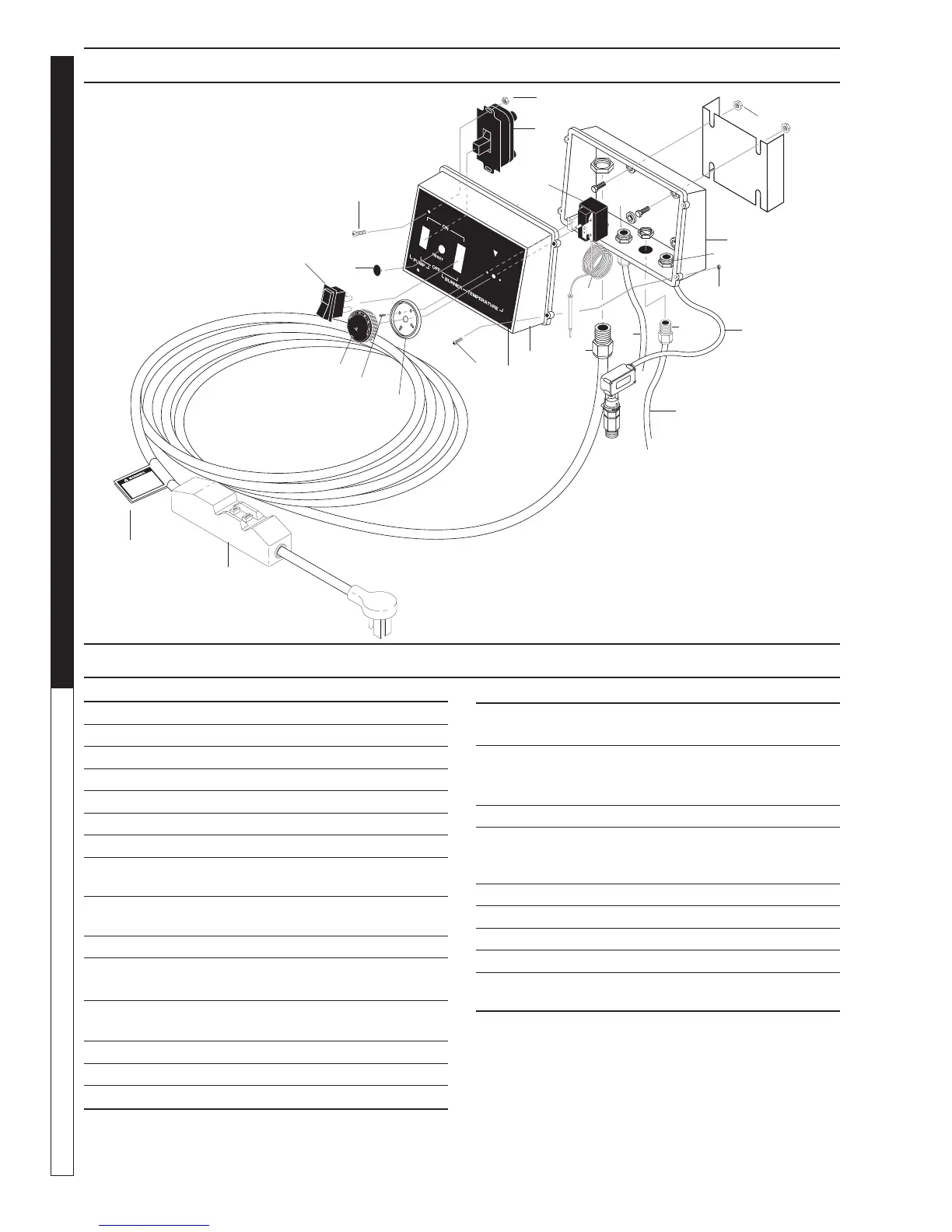

CONTROL PANEL ASSEMBLY, 790SS, 795SS, 795SS-208
CONTROL PANEL PARTS LIST
18
20
22
16, 17
25
24
9
1
23
21
13
16
16
19
17, 16
2
4
7
12
8
6
5
3
11
15
ITEM PART NO. DESCRIPTION QTY
1 8.901-142.0 Label, Control Box 1
2 8.716-053.0 Switch, Toggle, 40A/230V 1
3 8.718-569.0 Screw, 10-32 x 1/2" 2
4 9.804-567.0 Nut, 10/32", Esna 2
5 8.706-741.0 Plug, Plastic 7/16" 1
6 8.716-054.0 Switch, Rocker, 20A/230V 1
7 8.712-190.0 Bezel, Plastic, Thermostat 1
8 8.750-097.0 Knob, Thermostat 1
120C/248F
9 8.716-282.0 Box, Plastic, Front, 1
1 Square Hole
10 8.905-888.0 ▲Ground Wire W/ Bolt 1
11 8.750-095.0 Thermostat, 120C/240F, 1
2 Meter Capillary
12 8.718-779.0 Screw, 4mm x 6mm, 2
Pan He ad
13 9.802-480.0 Back Box 1
14 9.802-700.0 Bolt, 1/4-20 x 3/4", Nc Hh 4
15 9.802-775.0 Nut, 1/4" Flange, Zn 4
ITEM PART NO. DESCRIPTION QTY
16 9.802-514.0 Strain Relief, 1/2 Npt,
(795SS, 795SS-208, 790SS) 2
18 9.802-427.0 Cord, Serv, 12/3
(795SS-208, 795SS) 30"
(790SS) 22"
19 9.802-424.0 Cord, Service, Seo, 16/4 50"
20 9.802-433.0 Power Cord, W/ Gfci, 20A 1
(790SS Only)
9.802-430.0 Power Cord, W/ Gfci, 30A 1
21 9.804-072.0 Conduit, Wire Cover 22"
22 8.932-969.0 Label, Warning, Srvc Cord 1
23 9.803-249.0 Screw, M4 x 10 4
24 9.803-250.0 Nut (Electrical Box) 4
25 9.802-458.0 Switch, Pressure 1
1/4 NPT Brass, 65"
▲Not Shown
