97-6574 • HOTSY 900-1400 GAS FIRED • REV. 10/05
OPERATOR’S MANUAL
PRESSURE WASHER
10
ASSEMBLY INSTRUCTIONS
Unpacking
Unpack carefully. Wear safety glasses or goggles while
unpacking, assembling or operating pressure washer. If
there are missing components or hidden damage imme-
diately contact distributor or carrier concerning discrep-
ancies.
1. Cut strapping band from pressure washer and pal-
let.
2. Remove pressure washer from pallet.
Parts Included
• Pressure Washer
• Pressure Hose
• Hose Hanger
• Wand
• Wand Holder
• Parts Box Containing:
■ Pressure Nozzles (3 ea.)
■ Trigger Gun
• Operating Instructions and Parts Manual
Tools Required
• 10" Adjustable Crescent Wrenches (2 ea.)
• Blade Screwdriver

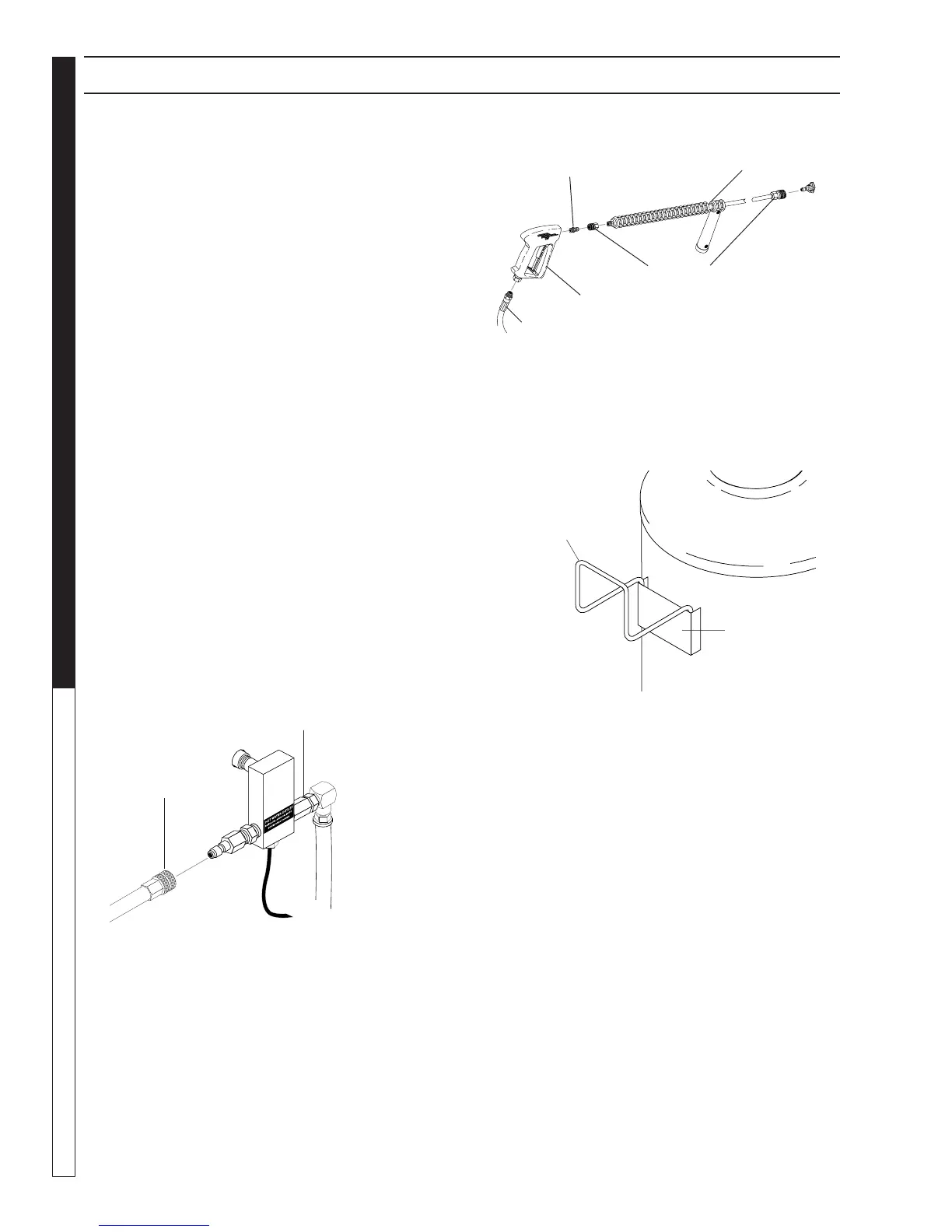

Pressure Hose, Wand and Wand Holder
1. Use teflon tape on plumbing connections to prevent
leakage.
2. Install pressure hose on machine as shown.
3. Assemble wand components as shown. Connect
pressure hose to trigger gun.
NOTE: The nozzle is not to be installed at this time.
4. Make sure that all plumbing connections are tight.
Hose Hanger
1. Install the hose hanger on the machine coil tank as
shown.
Quick Disconnect Plug
Wand
Quick
Disconnect
Trigger Gun
Pressure Hose
Hose Hanger
Pocket On
Coil Tank
Rupture Disk
Pressure Hose
To Next Page
