97-6574 • HOTSY 900-1400 GAS FIRED • REV. 10/05
OPERATOR’S MANUAL
PRESSURE WASHER
26
PUMP PARTS LIST

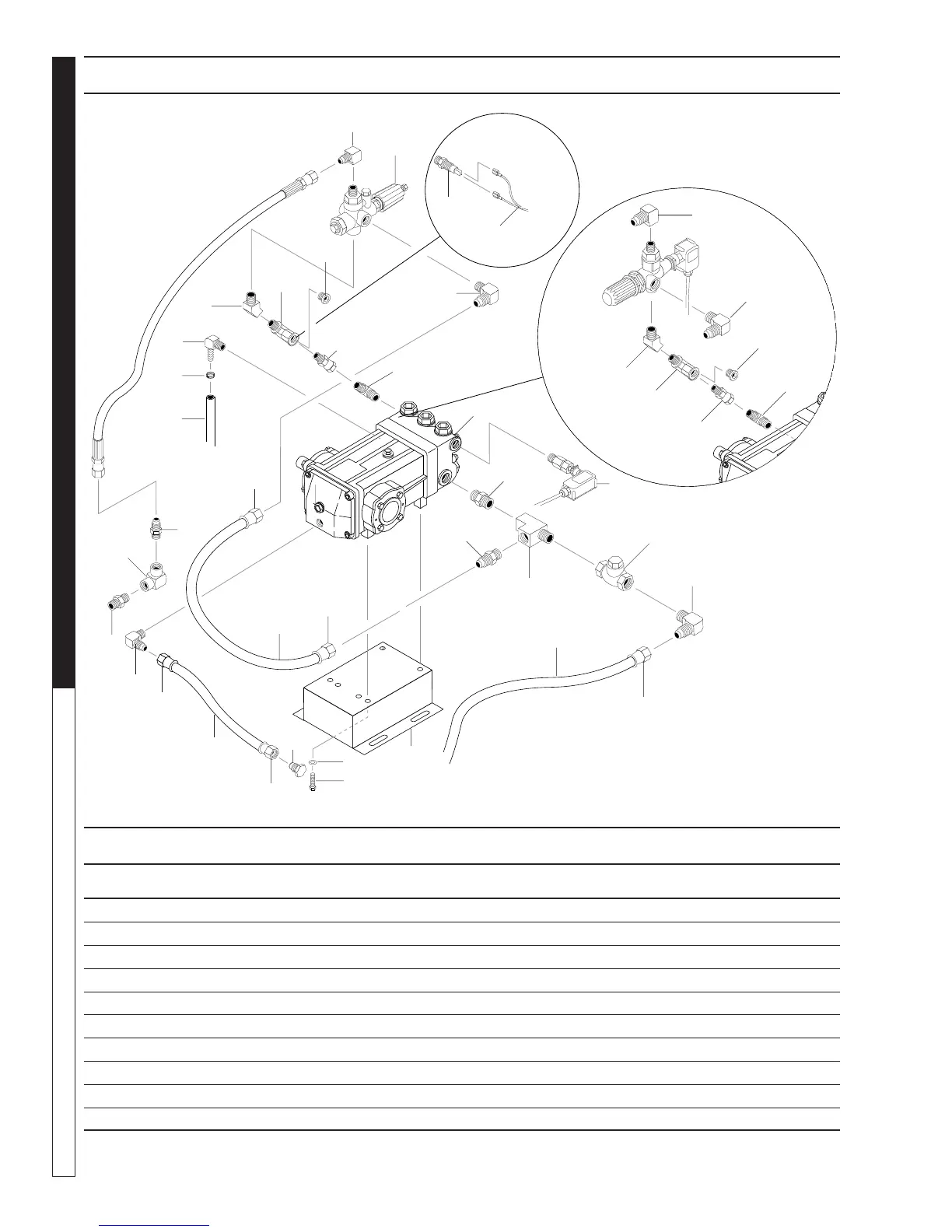

PUMP ASSEMBLY
ITEM PART NO. DESCRIPTION QTY
1 2-0053 Elbow, 1/2” JIC, 3/8”, 90° 1
2 5-3314 Unloader, LG, 3000 w/Knob 1
5-3228 Unloader, YVB9KMSS, W/S.S., Check Valve (Auto Start Option) 1
3 2-1060 Elbow, 1/2” JIC x 3/8”, 90° 1
4 2-0045 Tee, 3/8” Street 1
5 2-30051 Valve, 1/2” FNWTSC12, Brass, Swing Check 1
6 2-1062 Elbow, 1/2” JIC x 1/2”, 90° 1
7 2-1053 Nipple, 1/2” JIC x 1/2” MPT Pipe 1
8 2-1042 Tee, 1/2” Street 1
9 2-1105 Swivel, 1/2” JIC Female, Push-On 4
11
2
4
21
15
23
12
25
22
1
3
To
Control
Panel
Thermal
Switch
Option
18
17
16
9
27
10
24
20
19
9
9
7
14
8
32
5
33
6
13
30
26
29
28
Auto Start
Option
1
25
3
22
4
23
11
9
9
31
To Next Page
