Hotsy 982SS - Hose & Trigger Gun Assembly

97-6574 • HOTSY 900-1400 GAS FIRED • REV. 10/05
OPERATOR’S MANUAL
PRESSURE WASHER
36

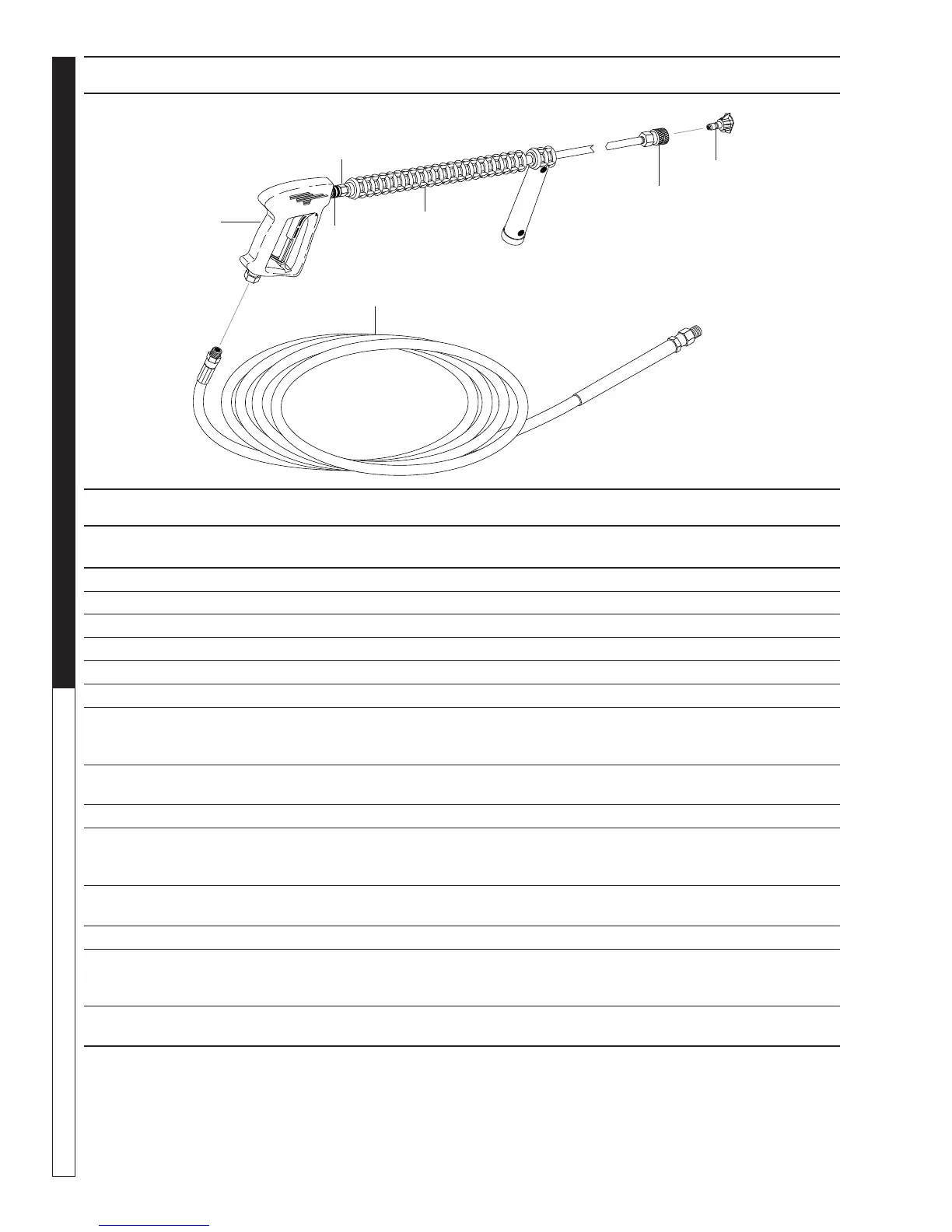

HOSE & TRIGGER GUN ASSEMBLY
HOSE & TRIGGER GUN ASSEMBLY PARTS LIST
5
4
2
1
3
3
6,7,8
ITEM PART NO. DESCRIPTION QTY
1 860447 Trigger Gun, Hotsy 1
2 915786 Nipple, 1/4" x 1/4" NPT ST Male 1
3 826169 Coupler, 1/4" Female, Brass 2
4 878917 Wand, Side Grip, 35.5” w/Couplers 1
5 4-02033450C Hose, 1/2" x 50', 1 Wire, 3/8" MSWBE 1
6 799001 Nozzle, 4.5 Red (1400 Series) 1
799003 Nozzle, 5.5 Red (981SS, 982SS, 991SS,
991SS-208, 992SS, 992SS-208, 994SS,
995SS) 1
799002 Nozzle, 5.0 Red (952SS, 952SS-208, 962SS,
962SS-208, 964SS, 969SS) 1
7 799013 Nozzle, 4.5 Yellow (1400 Series) 1
799015 Nozzle, 5.5 Yellow (981SS, 982SS, 991SS,
991SS-208, 992SS, 992SS-208, 994SS,
995SS) 1
799014 Nozzle, 5.0 Yellow 952SS, 952SS-208, 962SS,
962SS-208, 964SS, 969SS) 1
8 799025 Nozzle, 4.5 White (1400 Series) 1
799027 Nozzle, 5.5 White (981SS, 982SS, 991SS,
991SS-208, 992SS, 992SS-208, 994SS,
995SS) 1
799026 Nozzle, 5.0 White 952SS, 952SS-208, 962SS,
962SS-208, 964SS, 969SS) 1
