Hoval A 60 - 5 Dimensions of the Exchangers

15

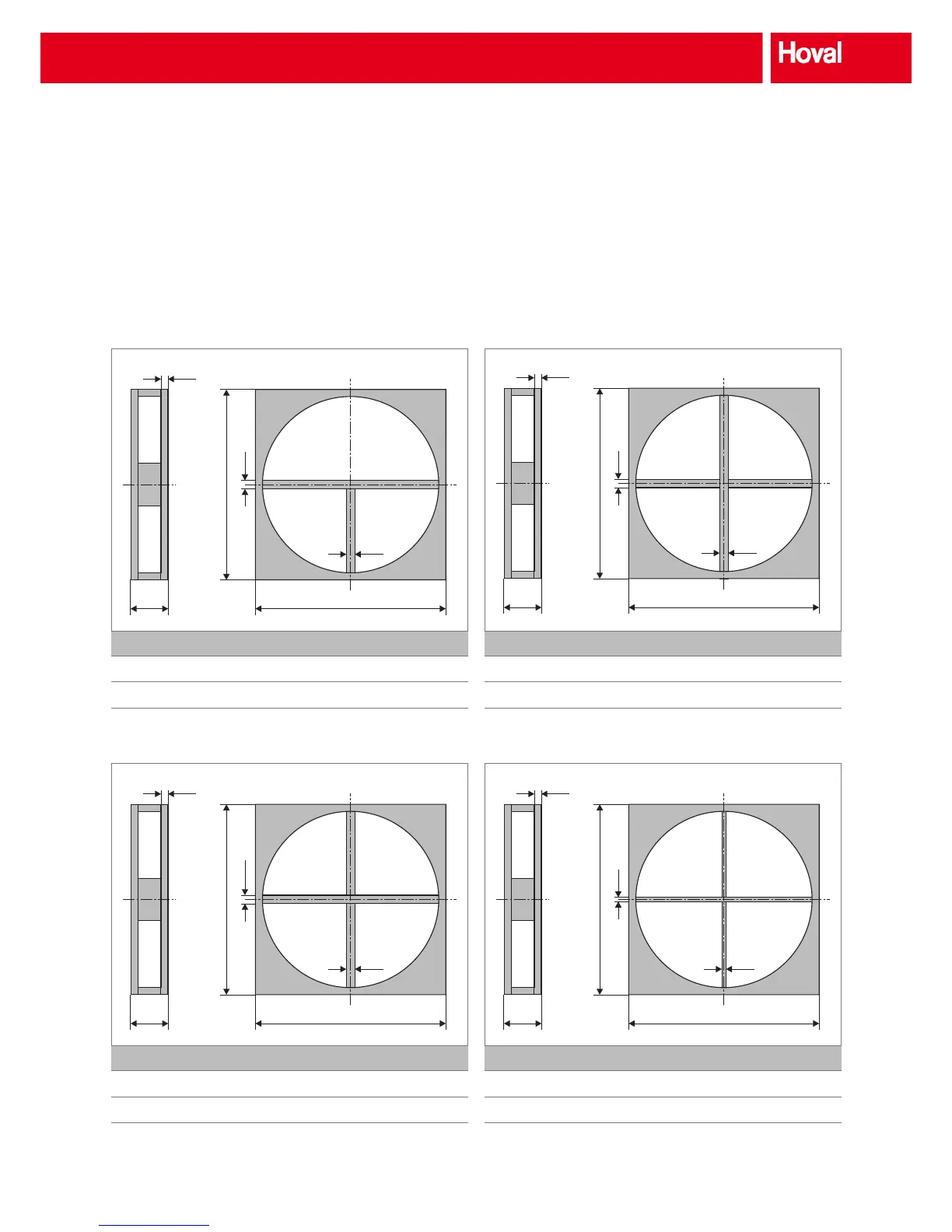

5 Dimensions of the exchangers
The minimum size of the casing depends on the wheel diam-
eter. The external dimensions can be individually adjusted.
A
B
290
70
30
60
Casing dimensions min. max.
Dimension A Ø + 80 1350
Dimension B Ø + 80 1350
Table 5: Dimensional drawing for small sheet-metal casing (dimensions in mm)
A
B
320
100
45
80
Casing dimensions min. max.
Dimension A Ø + 80 2850
Dimension B Ø + 80 2700
Table 6: Dimensional drawing for large sheet-metal casing, wheel diameter up to
1800 mm (dimensions in mm)
A
B
430
70
70
70
Casing dimensions min. max.
Dimension A Ø + 200 4200
Dimension B Ø + 200 4200
Table 7: Dimensional drawing for prole casing (dimensions in mm)
A
B
320
40
45
40
Casing dimensions min. max.
Dimension A Ø + 80 2850
Dimension B Ø + 80 2700
Table 8: Dimensional drawing for large sheet-metal casing, wheel diameter from
1800 mm (dimensions in mm)
