Hoval TopTronic E - Module Expansion TTE-FE

4 214 174 V00 KDT GLT-Modul TTE_EN.docx 5 / 26

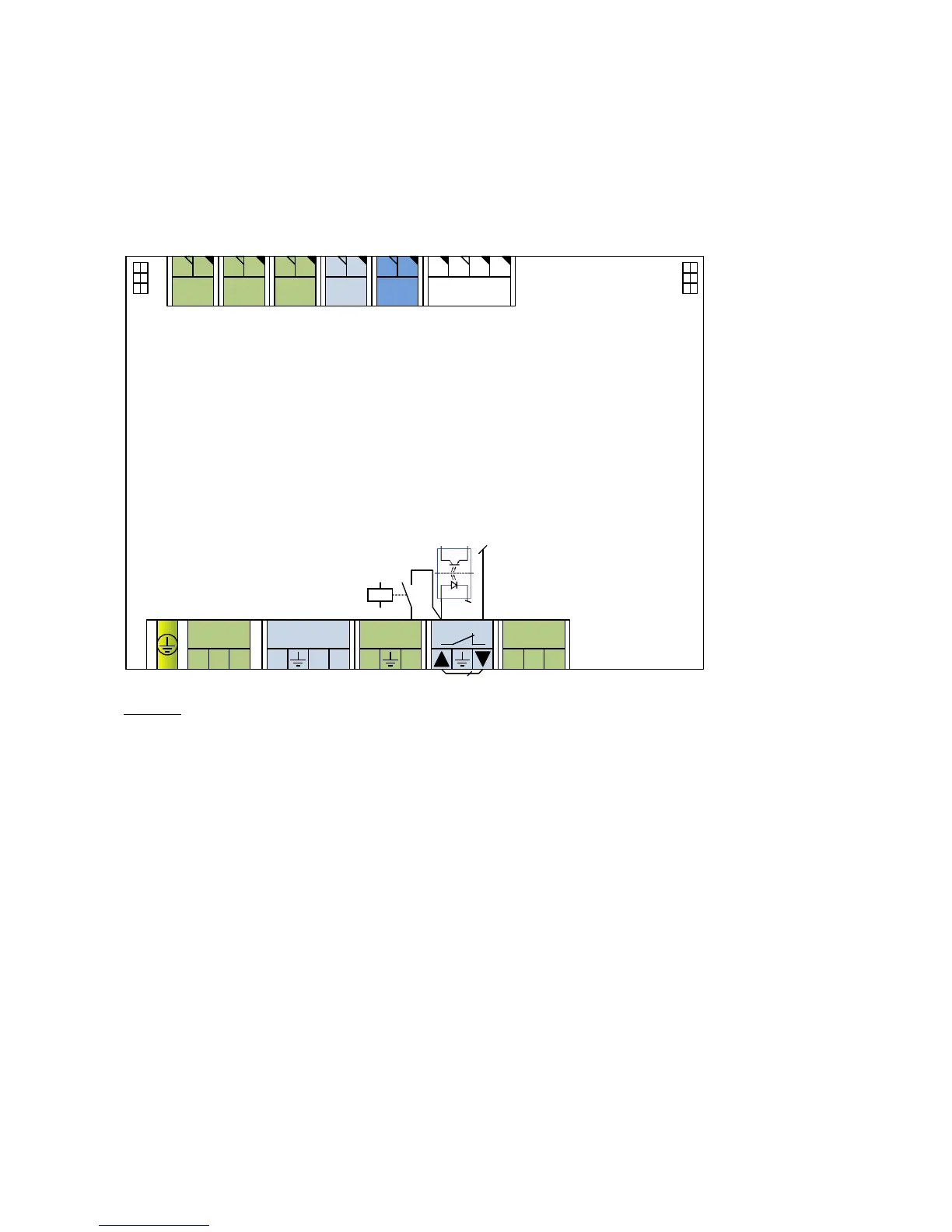

2.1. Module expansion TTE-FE
Universal module for hardware expansion of inputs/outputs. Can be used for each control module, as well as the
GLT module.
Max. 2 module expansions are possible per control/GLT module. The connection to the particular control module
is made using a ribbon cable (unit bus GB) and mains connection plug set.
2 1
VE1
2 1
VE2
2 1
VE3
/IMP
- +
VA10V
/PWM
- +
VE10V
TTE - FE
L PE N
Netz-in
N
VA1 / VA2
LL N L
VA3
SK-VA3
+
T
F T
FVT
N PE L1
Netz-out
GBGB
L
OP
VA3
Legend:
CAN System data bus
FVT-F Flow rate sensor (F = flow rate)
FVT-T Flow rate sensor (T = temperature)
Netz-In Mains input 230V~/13A slow-blow
Netz-out Mains output 230V~ max. 4 A slow-blow
SK-VA3 Safety chain VA3 output
VA1,2,3 Variable output 1,2,3
VA10V/PWM Variable output 0-10V/PWM
VE1,2,3 (IMP) Variable input 1,2 (IMP = sensor or pulse)
VE10V 1 Variable input 0-10V
