5. Overview

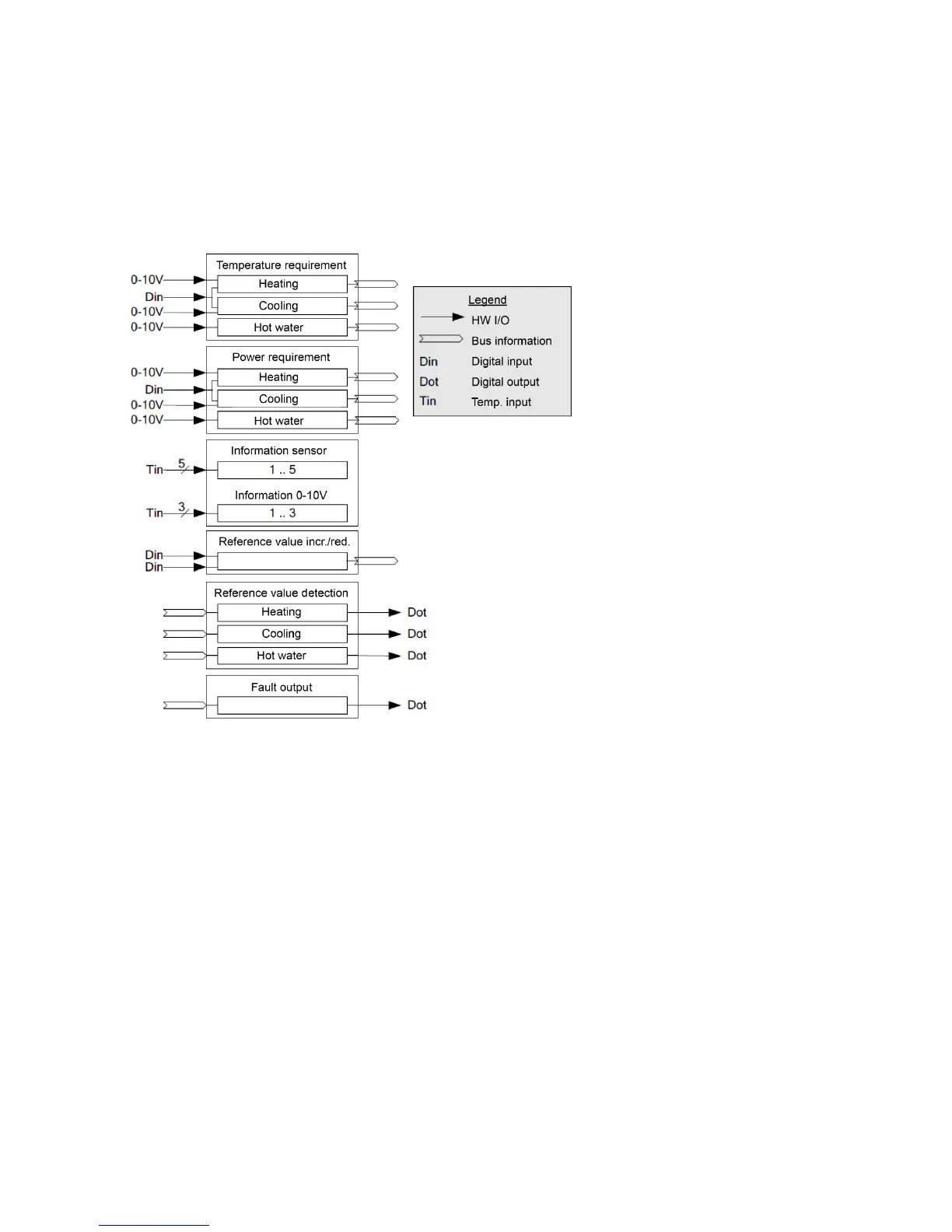

The following overview shows the main functions and the relationship with inputs and outputs. What are involved
are HW inputs and outputs, or information via the system bus.
