Single-phase Microinverter User Manual
Appendix 2:

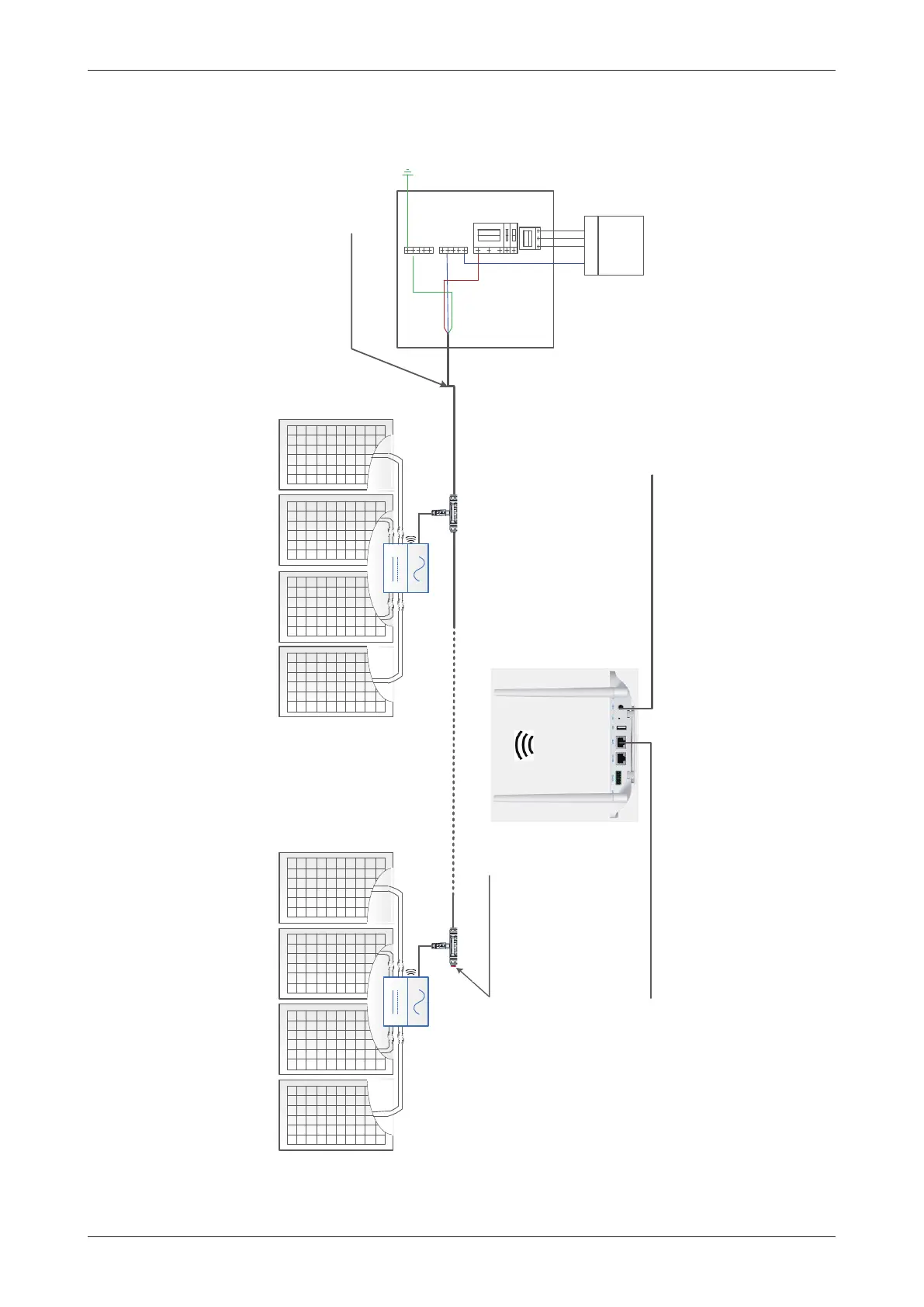

WIRING DIAGRAM – 230 VAC SINGLE-PHASE:
GROUND
NEUTRAL
W
AC DISTRIBUTION PANEL
OR SUBPANEL
METER
AC BRANCH CABLE BROWN - L
BLUE - N YELLOW&GREEN - G
L1
PHASE-L1
ETHERNET CONNECTION
TO BROADBAND ROUTER
CONNECTION TO DTU
POWER ADAPATER
5V
DTU
UP TO 24 HM-1500Ts
UP TO 3 HM-1500Ts PER
AC BRANCH CIRCUIT
BRANCH END CAP
BRANCH END CAP
ETHERNET CONNECTION TO BROADBAND ROUTER
UP TO 3 HM-1500Ts
PER AC BRANCH
CIRCUIT
NEUTRAL
METER
AC DISTRIBUTION PANEL
OR SUBPANEL
DTU
UP TO 24 HM-1500Ts
PHASE-L1
CONNECTION TO DTU
POWER ADAPTER
AC BRANCH CABLE BROWN - L BLUE - N YELLOW & GREEN - G
GROUND
