Single-phase Microinverter HMS-1600/1800/2000-4T-NA
11. Appendix 2:

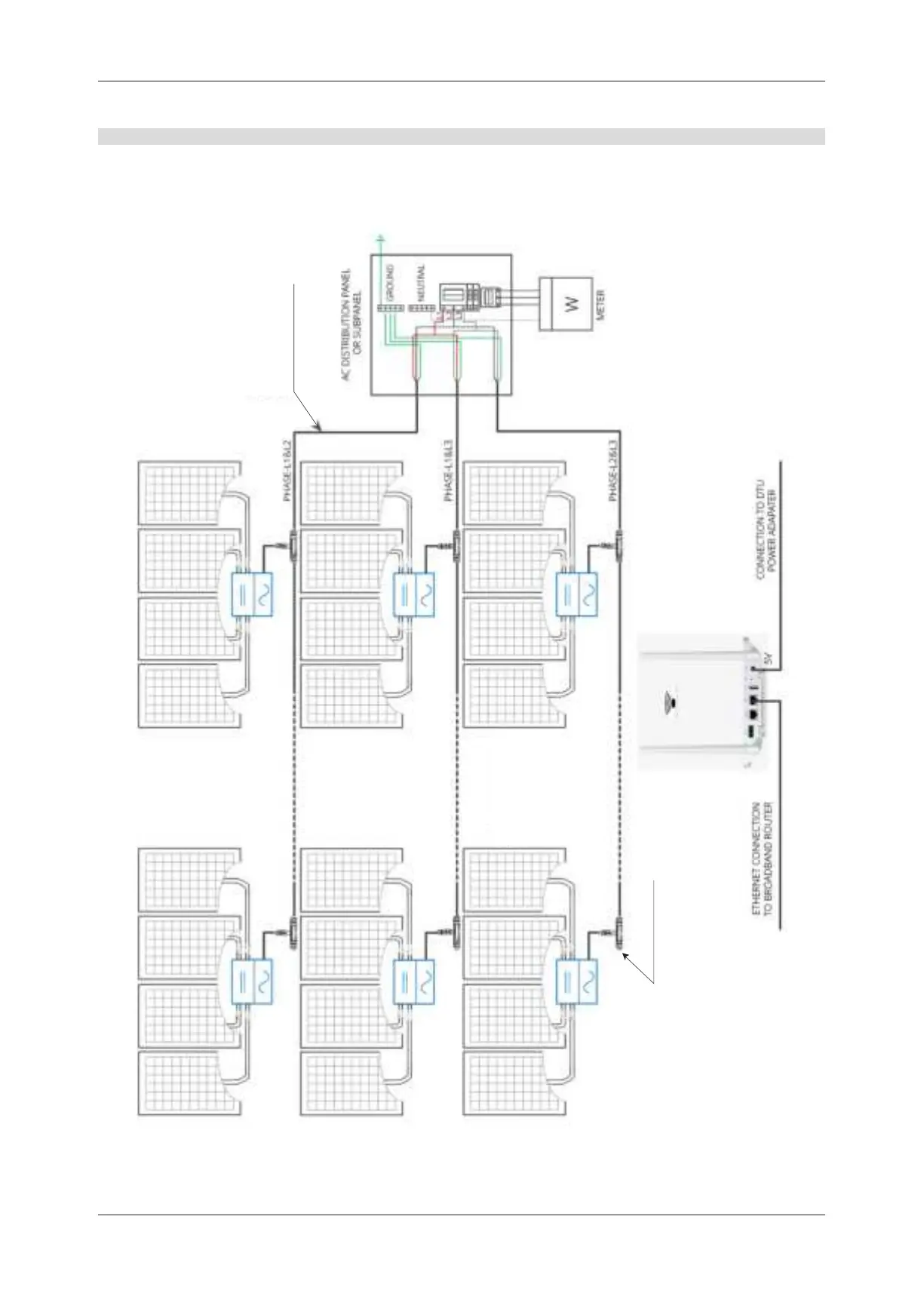

11.2 WIRING DIAGRAM – 120VAC / 208VAC THREE PHASE:
24 HMS-1800/2000-4T-NA units
BRANCH END CAP
AC BRANCH CABLE RED - L BLACK - N YELLOW&GREEN - G
Refer to Technical Data
for the maximum
number of microinverter
per AC branch circuit.

Hoymiles HMS-2000-4T Specifications

General

Output current	8.7 A
Charging voltage	230 - 275 V
Operating temperature (T-T)	-40 - 65 °C

Weight and Dimensions

Depth	34.6 mm
Width	331 mm
Height	218 mm
Weight	4700 g
