EN
Battery
Capacity (Wh) 2240
Cell type LiFePO4
Life cycles
≥
6000
Charging temperature (°C) 0 to 55
Discharging temperature (°C) -20 to 55
Nominal apparent power (VA)
1000 (charge and discharge)
General
Weight (kg) 32
Dimensions (L × W × H [mm])
455 × 220 × 457
Mounting Wall-mounted or Floor-mounted
Cooling Natural convection-No fans
Wireless type Bluetooth, 2.4GHz Wi-Fi
Interface LED & APP
Protection degree IP65
(4)
Pollution class PD3
Over-voltage rating
Ⅱ
Maximum altitude (m) 2000
Operating temperature range (℃) -20 to 55
Relative humidity (%) 5 to 95
[1] It can be customized by using the S-Miles Home App and can be adjusted up to 1000 VA.
[2] The nominal voltage/frequency range may vary based on local requirements.
[3] It is the ratio of max. output apparent power to nominal AC voltage.
[4] The product is rated IP65 overall, with the exception of the standard AC socket.
4. Installation

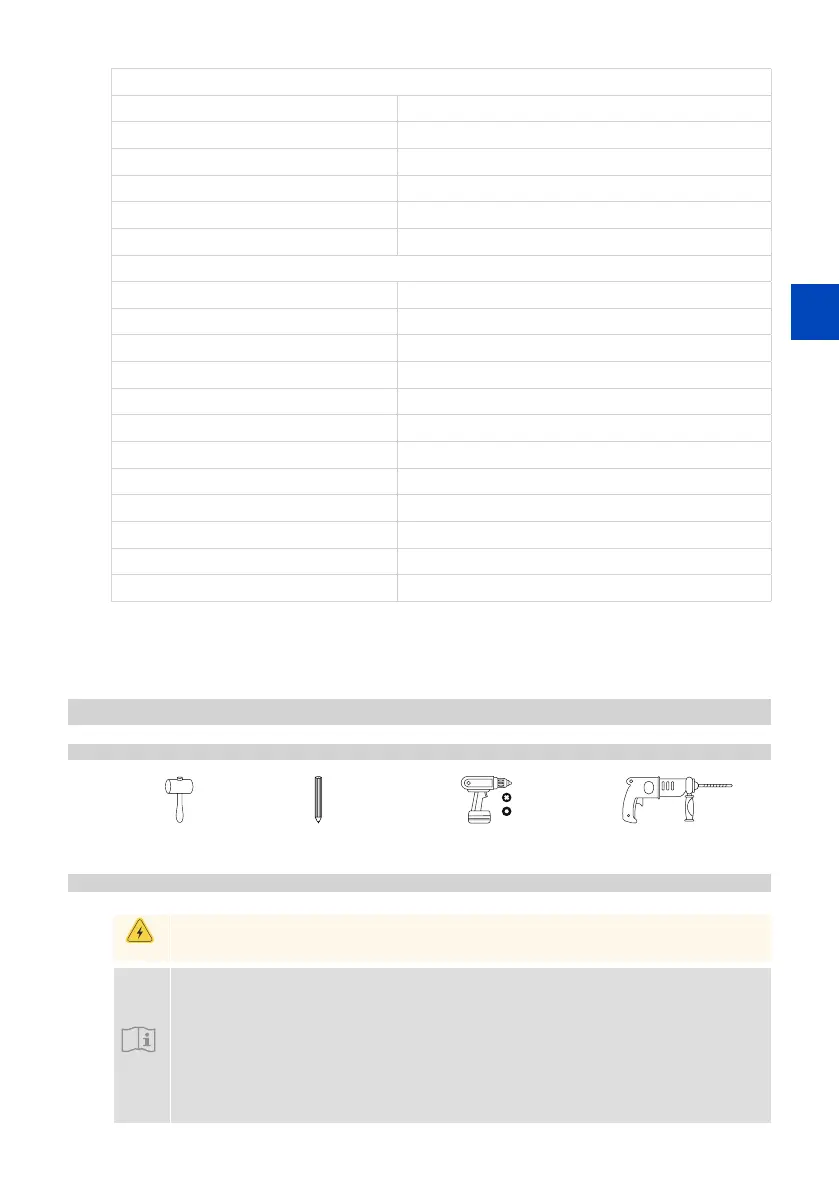

4.1 Installation Tools
Rubber Mallet Marker Electrical Screwdriver (M5, M6) Hammer Drill (φ8)
4.2 Mechanical Installation
WARNING
• All installations must adhere to local electrical standards and the national electrical code.
• Shield the MS-A2 from direct sunlight and rainfall.
NOTICE
For safe operation and to avoid device damage, observe the following requirements when
selecting the installation site.
• The installation site must be convenient for electrical connection, operation, and maintenance.
• The installation surface must be suitable for the weight (32 kg), dimensions, and cable length
of the MS-A2.
• The installation site must have sucient air clearances around the MS-A2. Clearances may vary
depending on specic installations, and we suggest a general minimum guideline: maintain at
least 3.5 mm clearance to the nearest adjacent sidewall on the up, bottom, left, and right sides.
