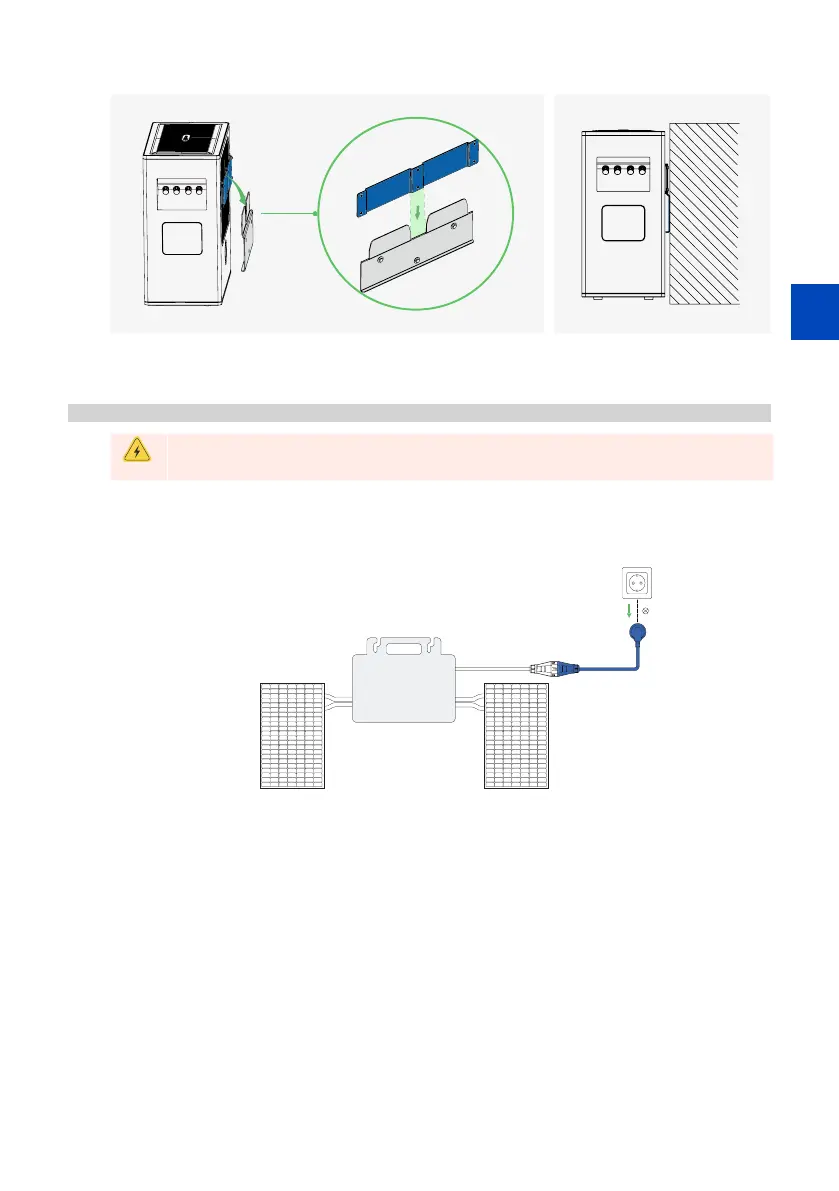

F) Hang the MS-A2 onto the wall-mounted bracket.
F)-1. F)-2.
4.3 Electrical Connection
DANGER
Before proceeding with the installation make sure the microinverter system is disconnected from
the power supply, the solar panels are shaded or isolated, and the MS-A2 is turned o.
Step 1 Disconnecting the Microinverter System from the Grid
A) Unplug the HMS Plug and Play Cable from the socket.
Step 2 Connecting the Microinverter System to the MS-A2
A) Insert the HMS Plug and Play Cable into the AC O-Grid cable entry of the MS-A2.
