HP 14-BS0 Series - Page 56

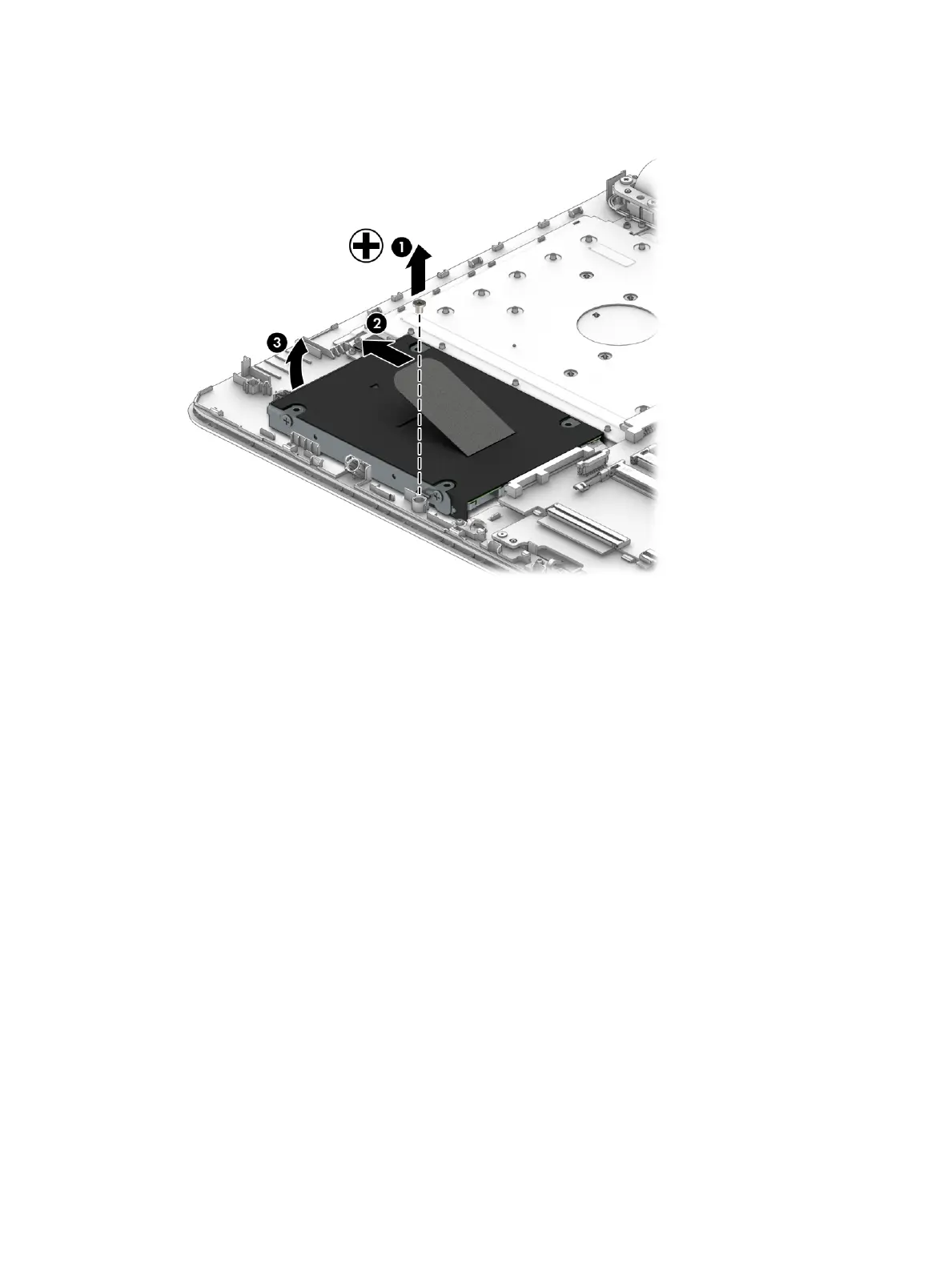

2. Pull the hard drive assembly away from connector (2), and the remove the hard drive assembly from the
computer (3).
3. To remove the hard drive bracket from the hard drive, remove the four Phillips PM3.0×3.0 screws (1)
that secure the bracket to the hard drive.
48 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
