HP 14-BS0 Series - M.2 Solid-State Drive Adapter Bracket Replacement

M.2 solid-state drive adapter bracket
Three dierent SKUs related to storage are oered:
●
Hard drive only
●
M.2 solid-state drive only
●
Hard drive and M.2 solid-state drive
For hard drive only models, install the hard drive into hard drive bay. For solid-state drive only models, install
the solid-state drive into the solid-state drive adapter bracket, and then into the hard drive bay. For hard drive
and solid-state drive models, install the hard drive into the hard drive bay and install the solid-state drive into
the separate solid-state drive connector on the system board. System boards are
oered with an additional
M.2 solid-state drive connector for hard drive and solid-state drive models.
Description Spare part number
Solid-state drive adapter bracket 925355-001
Before removing the solid-state drive adapter bracket, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 32).
5. Remove the optical drive (see Optical drive on page 34), if installed.
6. Remove the bottom cover (see Bottom cover on page 41).

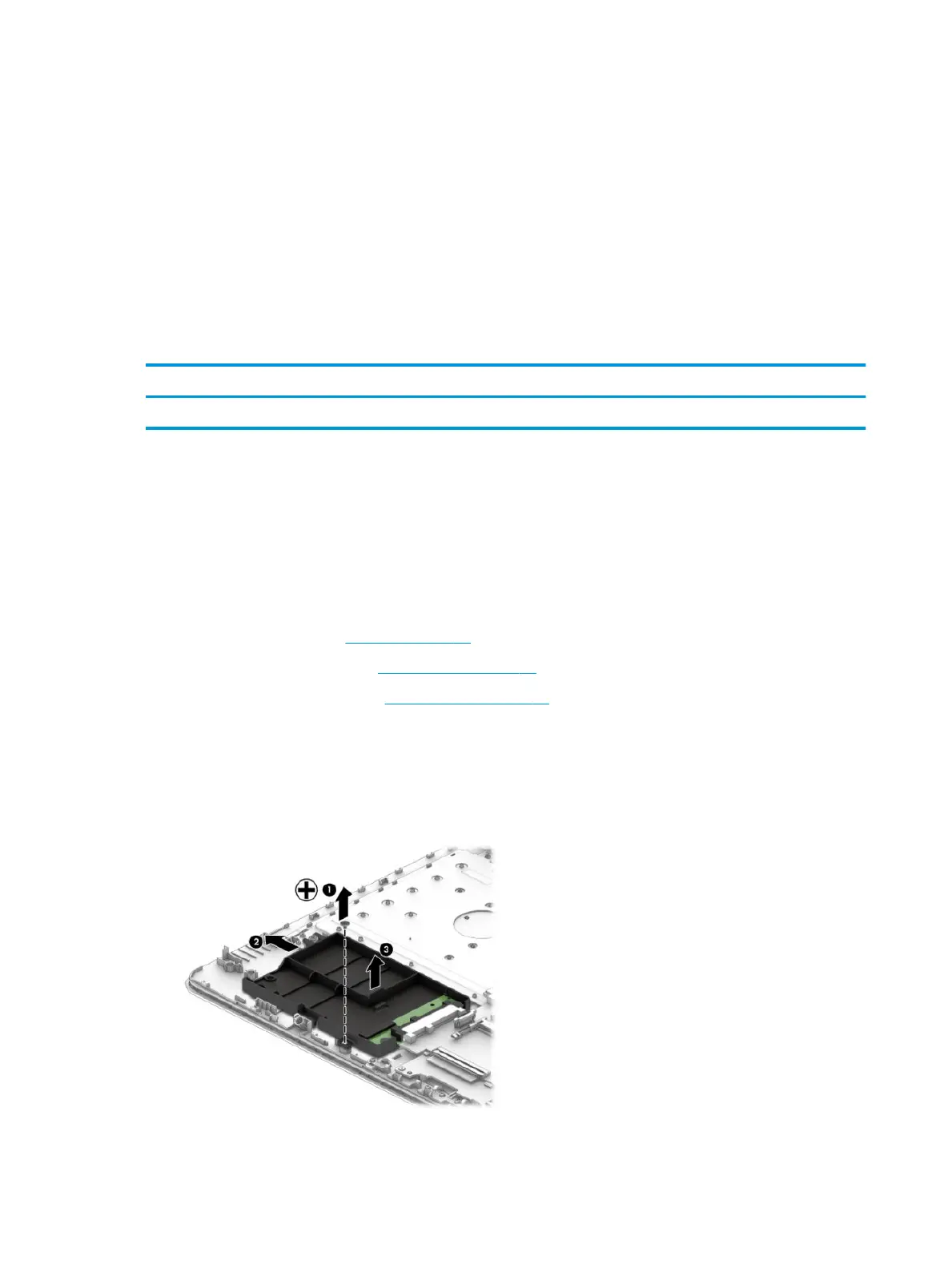

To remove the solid-state drive adapter bracket:
1. Remove the two Phillips PM2.0×3.0 screws (1) that secure the bracket to the computer.
2. Pull the bracket away from the connector (2).
3. Lift the bracket out of the computer (3)
Reverse this procedure to reassemble and install the solid-state drive adapter bracket.
