HP 14-BS0 Series - Page 66

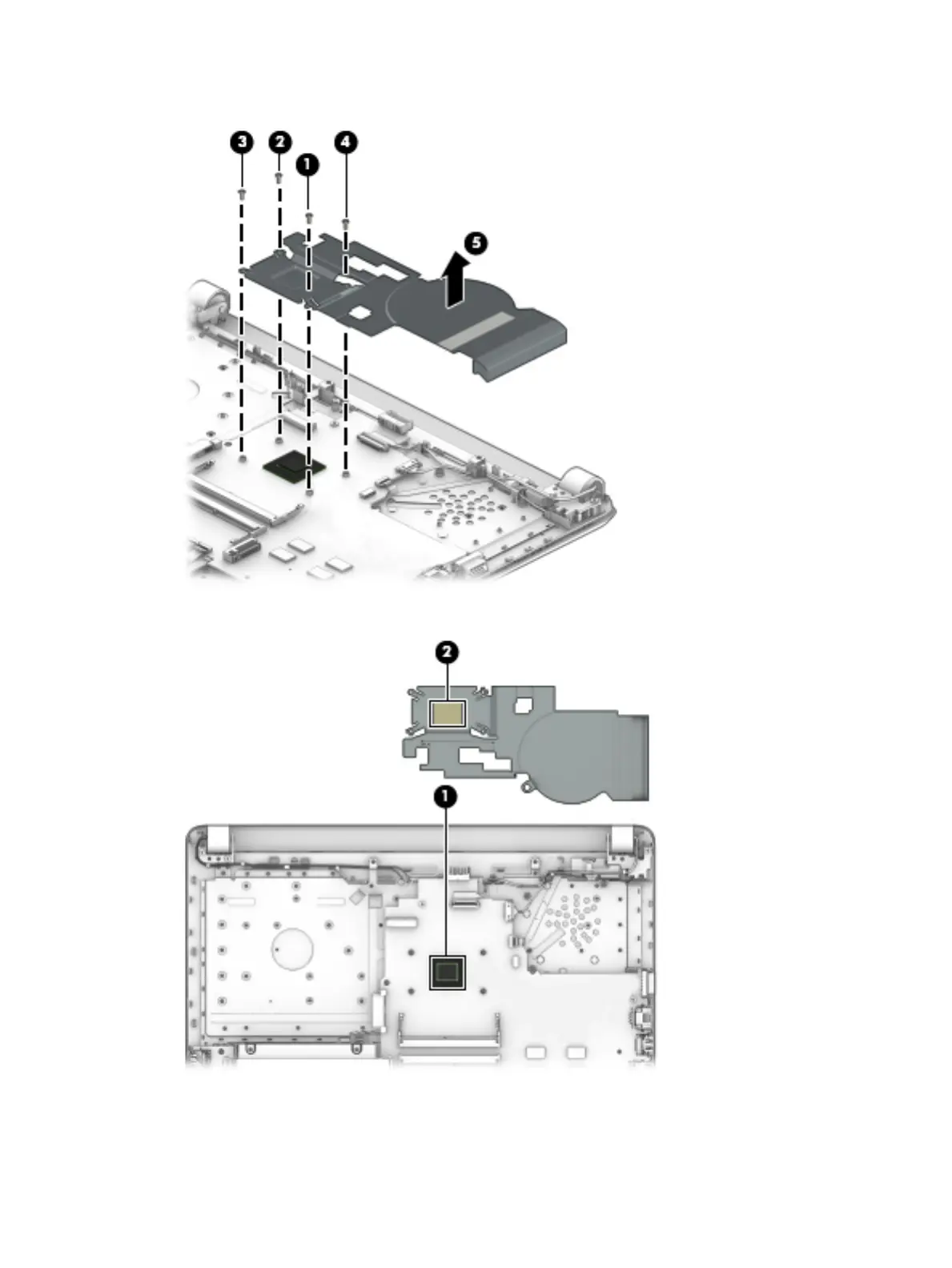

Figure 6-3 UMA graphics (fanless)
●
UMA graphics (fanless) Thermal paste is used on the heat sink (1) and the processor (2).
Reverse this procedure to reassemble and install the heat sink assembly.
58 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
