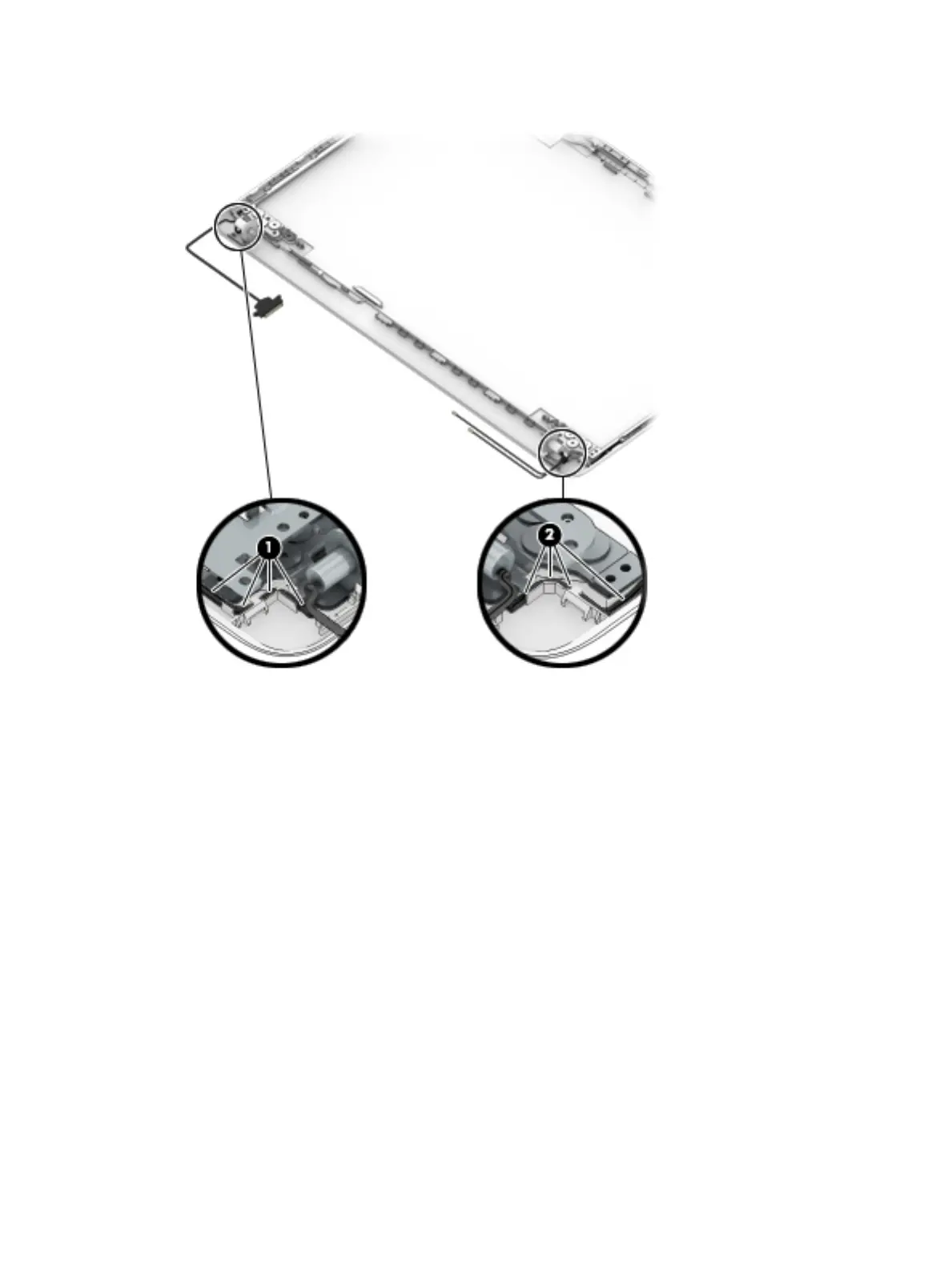

7. Use the following image to determine proper cable routing around the hinges.
8. If replacing the display enclosure, be sure that the subcomponents (including the camera/microphone
module, the antenna receivers, and all associated cables and hardware) are transferred to the new
enclosure.
Reverse this procedure to reassemble and install the display assembly.
74 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
