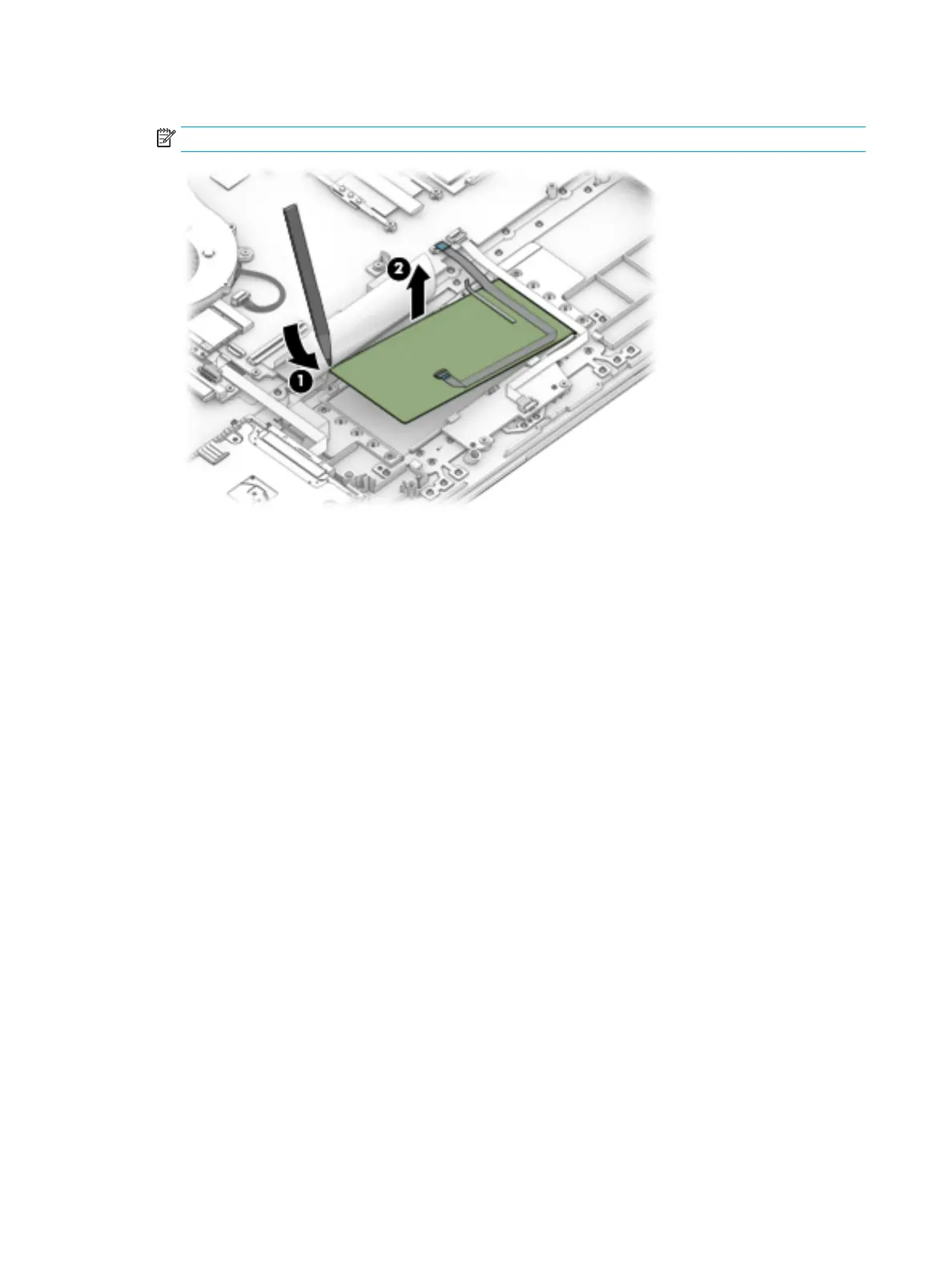

5. Working around each edge, pry the TouchPad module loose, and then remove it from the computer (2).

NOTE: The TouchPad module may be very tight and dicult to remove.

Reverse this procedure to install the TouchPad module.

54 Chapter 6 Removal and replacement procedures for authorized service provider parts
