HP 17 Series

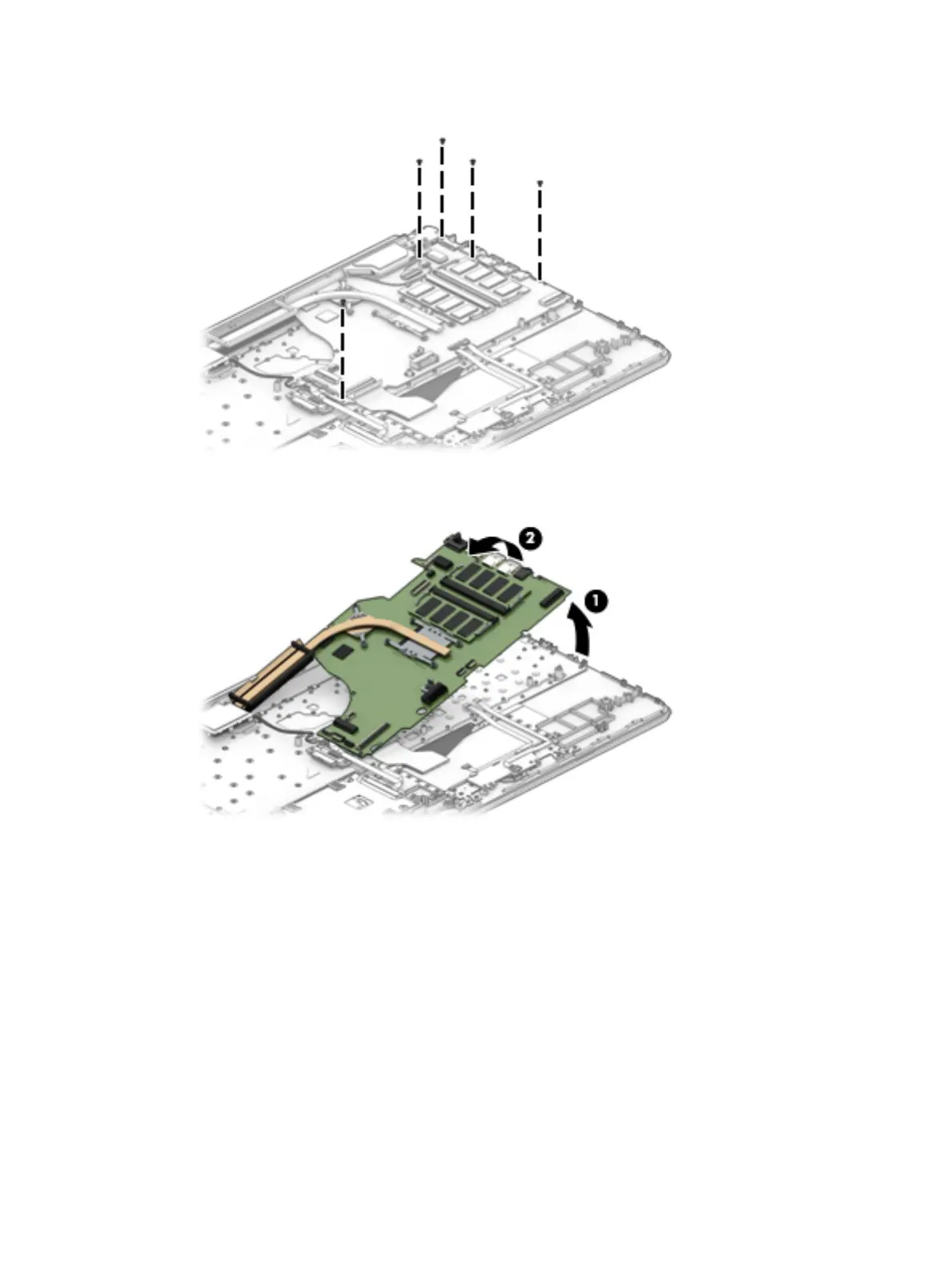

2. Remove the ve Phillips M2.0 × 3.0 screws that secure the system board to the computer.
3. Lift the right side of the system board (1), and then turn the system board upside down (2) to access the
connector underneath.
Component replacement procedures 63
