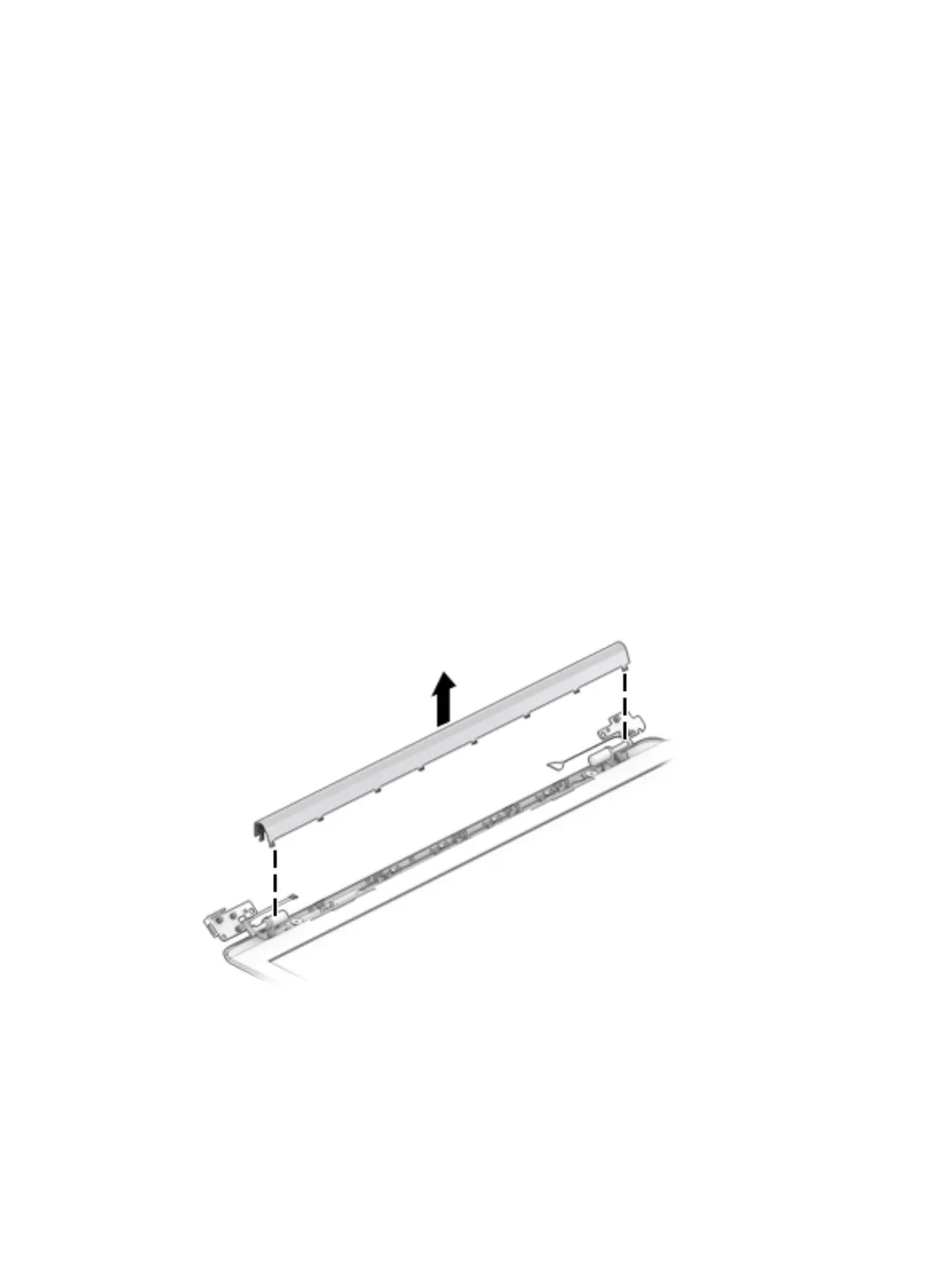

5. If it is necessary to replace the hinge cover, pull either side of hinge cover to disengage it from the
display enclosure, and then remove the hinge cover from the display enclosure.
Hinge covers are available using the following spare part numbers:
L22559-001: Jet black
L22552-001: Natural silver
L22553-001: Pale gold
L22554-001: Scarlet red
L22557-001: Twilight blue
L22556-001: Smoke gray
L22560-001: Snow white
L22555-001: Serenity mint
L22558-001: Maroon burgundy
L25498-001: Tranquil pink
L25499-001: Iridescent pale rose gold
L25500-001: Iridescent ceramic white
L47078-001: Chalkboard gray
L47079-001: Lumiere blue
L47080-001: Berry mauve
When replacing the hinge cover, make sure the hinges rotate downward as far as they can go. Align the
cover, and then start from above and rotate the cover downward onto the hinges. Make sure the clips
snap into place along the bottom of the display cover.
6. If it is necessary to replace the display hinges:
a. Remove the six Phillips M2.5 × 2.5 broad head screws (1) from the bottom of the hinges.
Component replacement procedures 71
