A-12
Specifications
Twisted-Pair Cable/Connector Pin-Outs
Straight-Through Twisted-Pair Cable for
1000 Mbps Network Connections
1000BASE-T connections require that all four pairs of wires be connected.

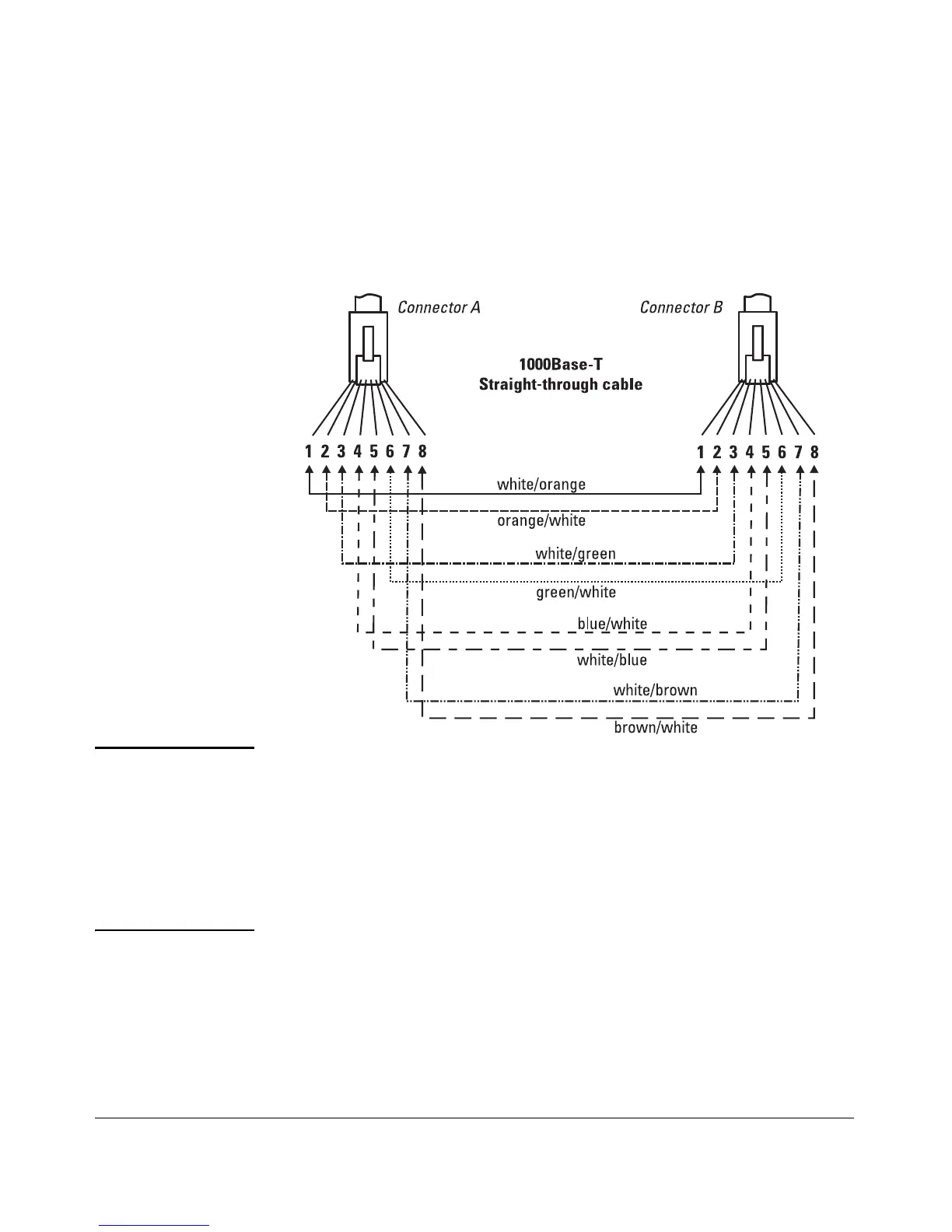

Cable Diagram
Note Pins 1 and 2 on connector “A must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 3 and 6 on connector “A must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 4 and 5 on connector “A” must be wired as a twisted pair to pins 4 and 5
on connector “B”.
Pins 7 and 8 on connector “A” must be wired as a twisted pair to pins 7 and 8
on connector “B”.
.
Pin Assignments
For 1000BASE-T operation, all four pairs of wires are used for both transmit
and receive.

Other manuals for HP 1810-8G

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP 1810-8G and is the answer not in the manual?

HP 1810-8G Specifications

General IconGeneral
Switching Capacity16 Gbps
Throughput11.9 Mpps
MAC Address Table Size8000 entries
Jumbo Frame SupportYes
PoENo
Weight2.2 lb (1 kg)
Ports8 x 10/100/1000
Form FactorDesktop, Rack-mountable
ManagementWeb-based
Power SupplyExternal
Operating Temperature0°C to 40°C
Operating Humidity15% to 95% non-condensing
