HP 240 G7

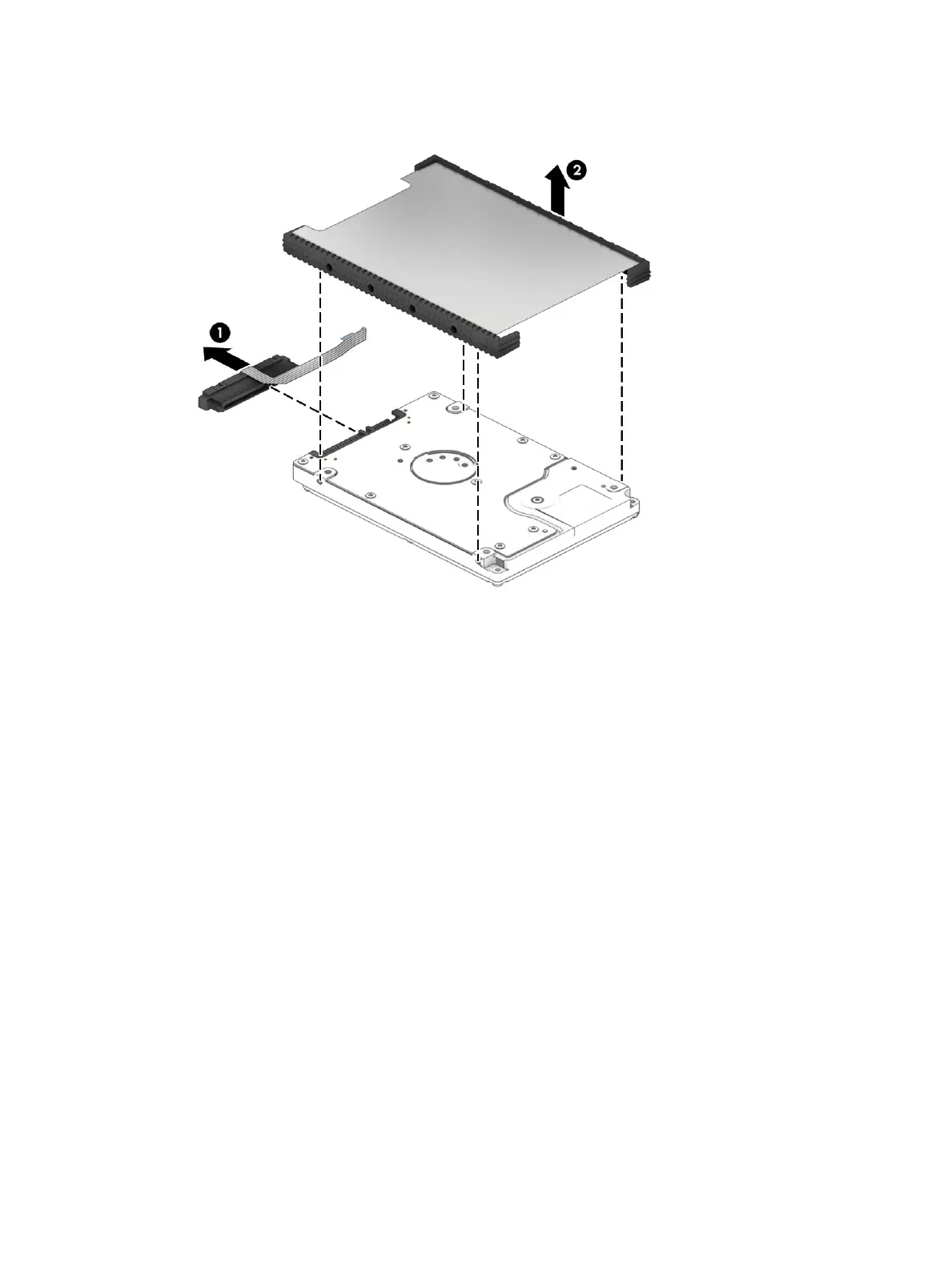

3. If it is necessary to disassemble the hard drive, pull the connector o the rear of the drive (1), and then
lift the cover o the drive (2).
Reverse this procedure to reassemble and install the hard drive.
34 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
