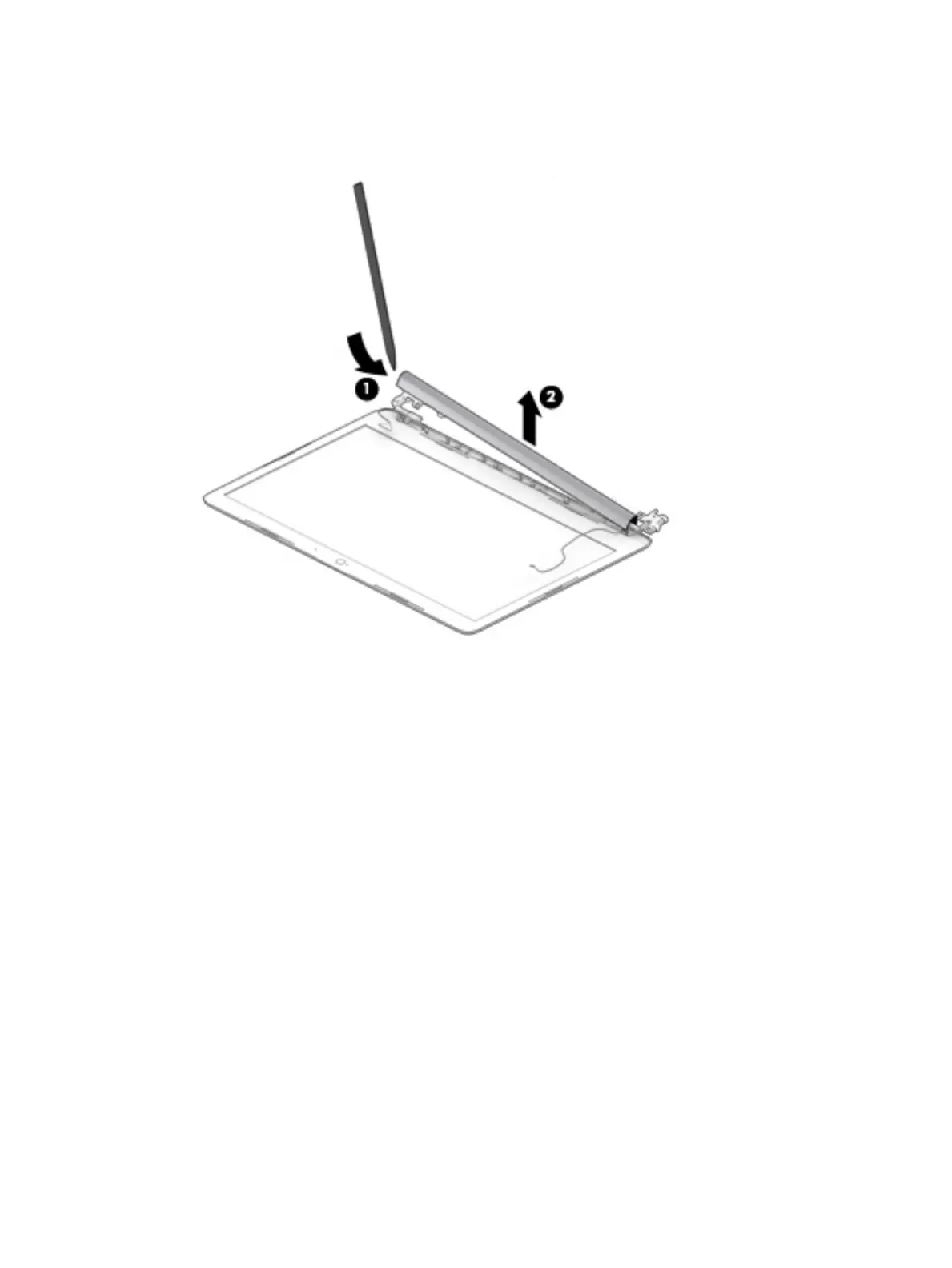

4. If it is necessary to replace the hinge cover, use a plastic, non-marking tool to pull up on the side of the
hinge cover (1), and then remove it (2).
The hinge cover is available using spare part number L44058-001.
When replacing the hinge cover, make sure the hinges rotate downward as far as they can go. Align the
cover (1), and then start from above and rotate the cover downward onto the hinges (2). Make sure the
clips snap into place along the bottom of the display cover.
5. If it is necessary to replace the display hinges:
a. Remove the six Phillips M2.5×2.5 broad head screws (1) from the bottom of the hinges.
