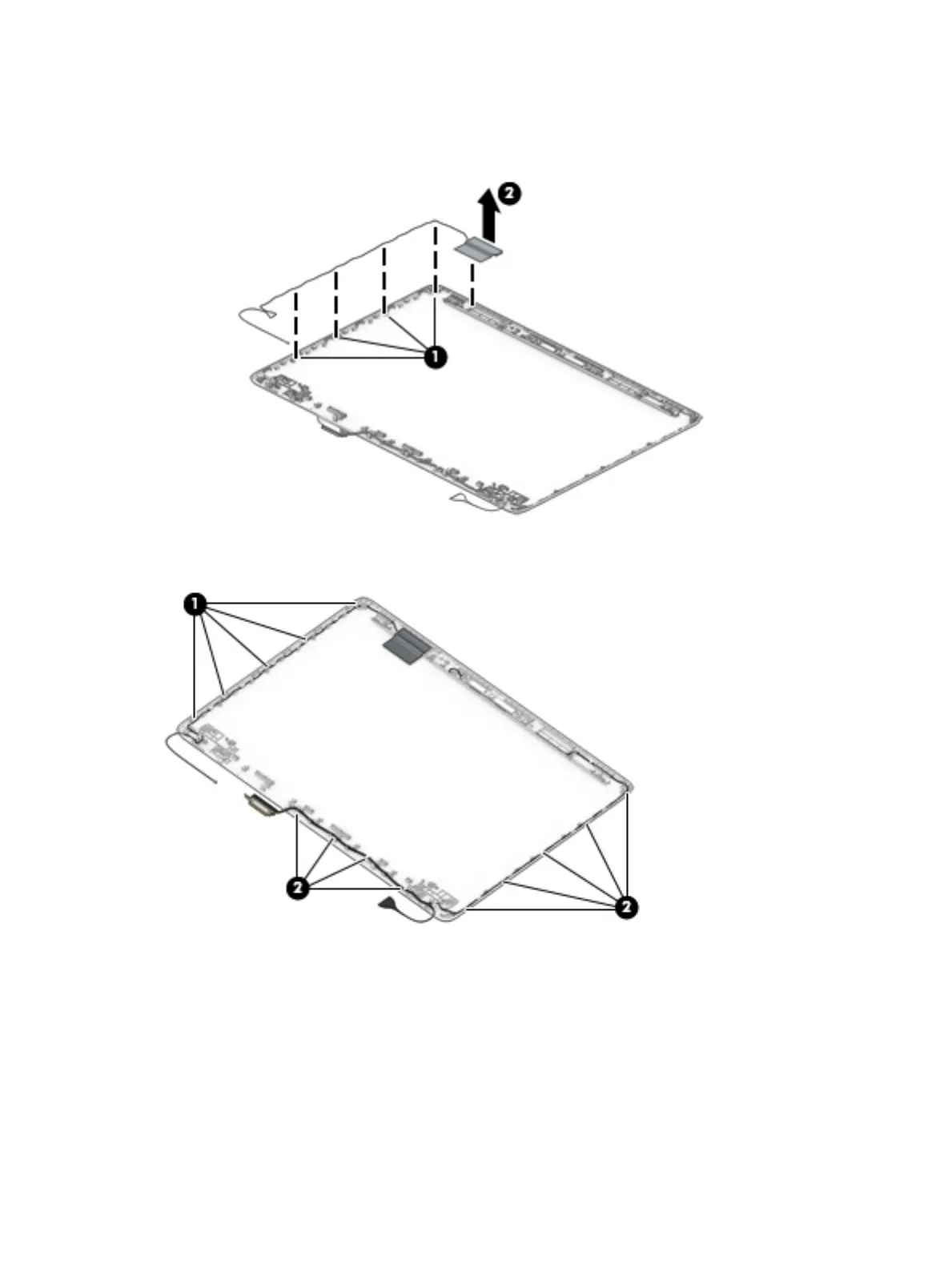

b. Release the antenna from the display enclosure (2).
Antennas are available using spare part number L23158-001 for models with a single antenna and
L23159-001 for models with dual antennas.
Use the following image to determine proper cable routing in the display of the antenna cable (1) and display
cable (2).
The display rear cover is available using spare part number L44056-001.
Reverse these procedures to reassemble and install the display assembly components.
Component replacement procedures 57
