Hard drive connector
The hard drive connector is installed in the hard drive cage and connects to the system board.
1. Prepare the computer for disassembly (Preparation for disassembly on page 14).
2. Remove the access panel (Access panel on page 15).
3. Remove the hard drive (Hard drive on page 18).

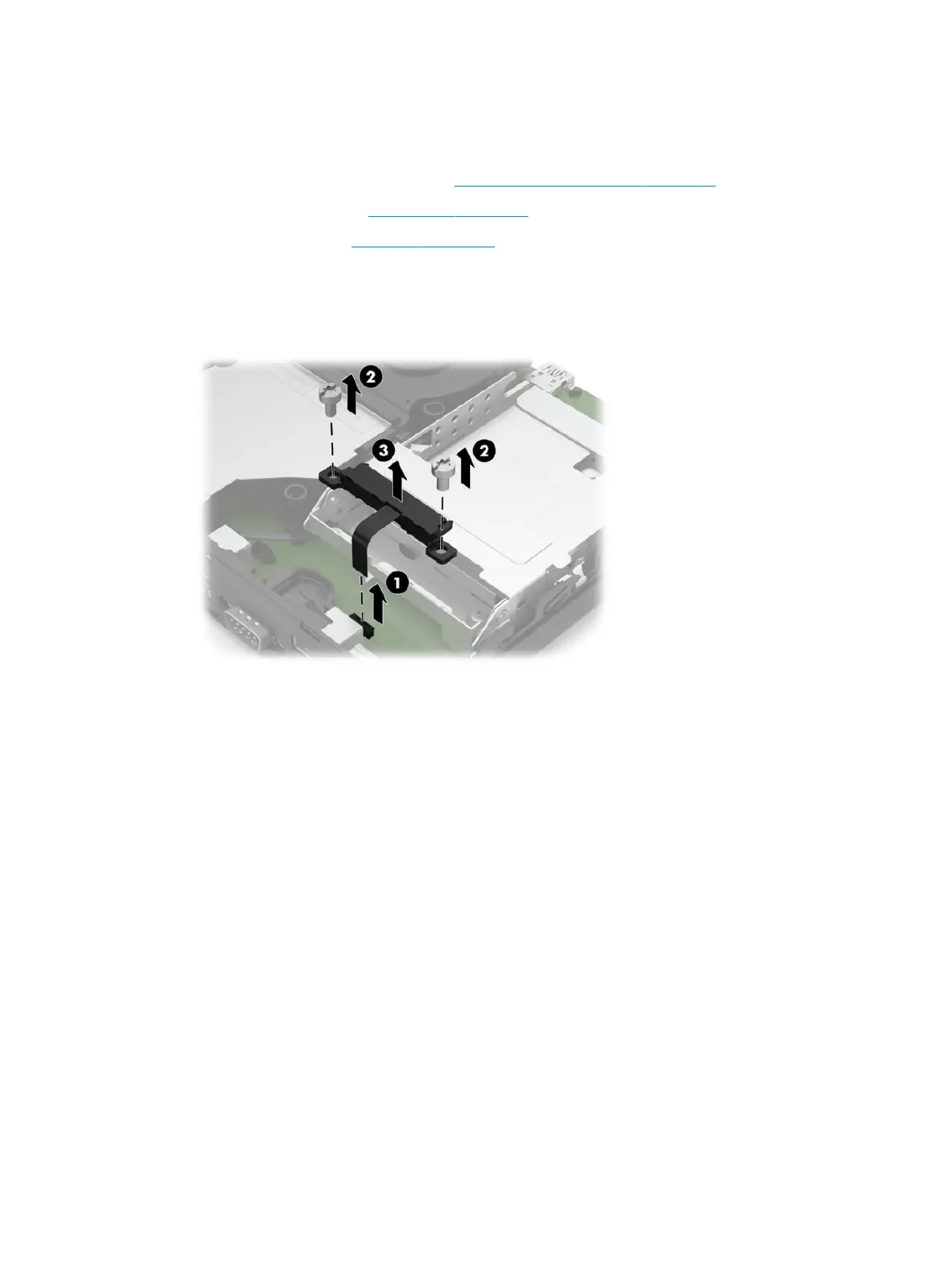

4. Disconnect the cable from the system board (1).
5. Remove the two Torx T15 screws that secure the connector to the drive cage (2).
6. Lift the hard drive connector out of the computer (3).
To install the hard drive connector, reverse the removal procedure.
Hard drive connector 19
