M.2 PCIe solid state drive (SSD)
For a list of available solid-state drives, see Computer major components on page 4.
1. Prepare the computer for disassembly (Preparation for disassembly on page 14).
2. Remove the access panel (Access panel on page 15).
3. In models with a hard drive, remove the hard drive (Hard drive on page 18) and drive cage Drive cage
on page 20.
4. Locate the drive on the system board.

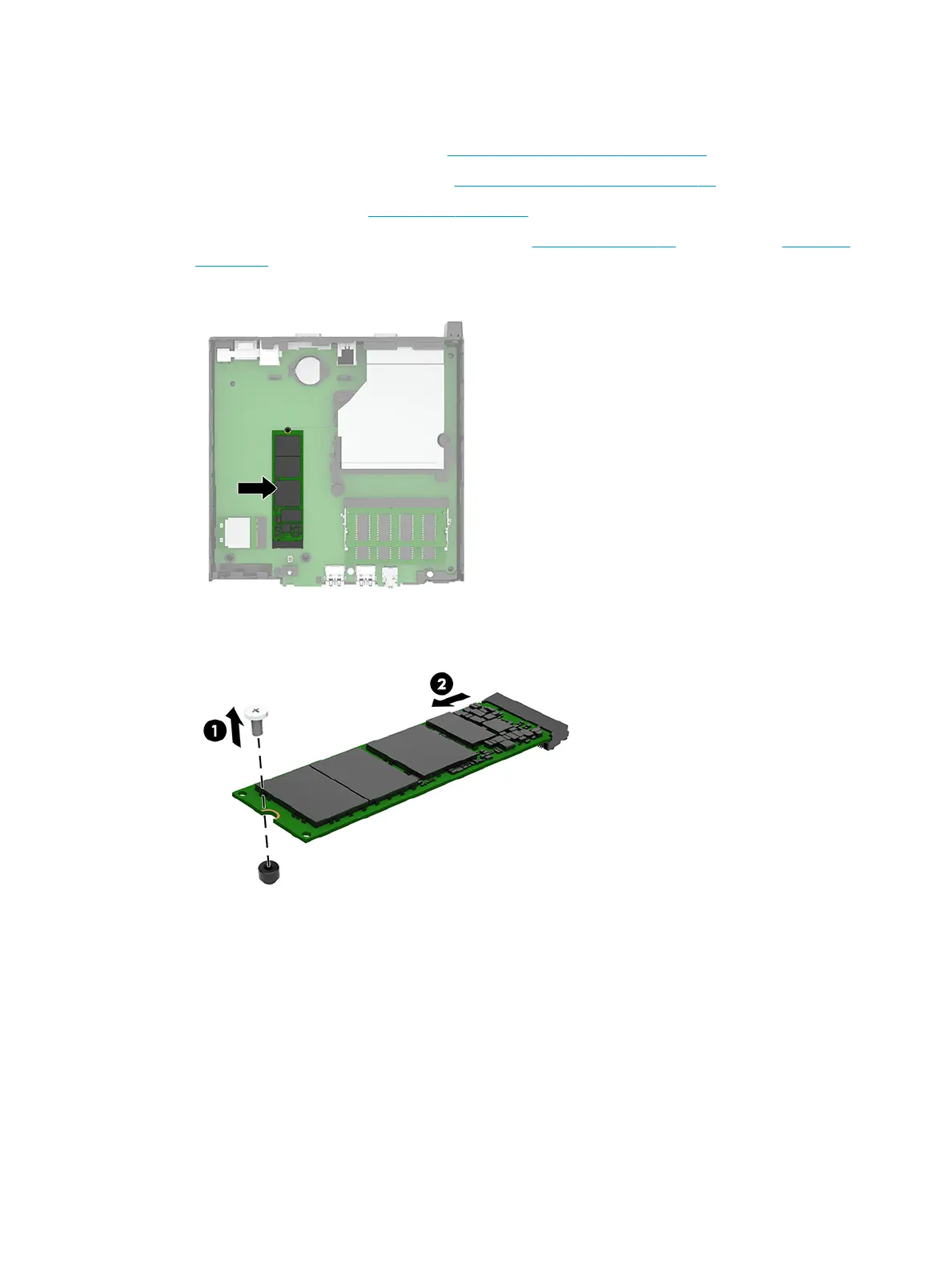

5. Remove the screw (1) that secures the drive module to the system board, and then pull the module from
the socket (2).
To replace the solid-state drive module, reverse the removal procedures.
